Telecentric lenses

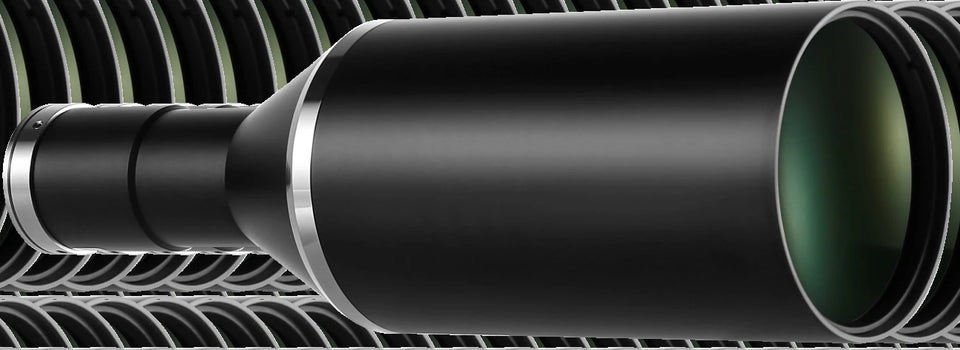

Bi-telecentric lens for 2/3" sensor (LS-TCL-S95)
- 29 models
- from $909.00
- Series LS-TCL-S95
The Bi-telecentric lens for 2/3" sensor (LS-TCL-S95) is a range of 29 telecentric lenses from LumaSpec Vision, from $909.00. It comes in 24 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.053x, WD 372 mm, 2/3", C-mount, 0.06x, WD 398 mm, 2/3", 0.063x, WD 320 mm, 2/3", C-mount, 0.095x, WD 250 mm, 2/3", C-mount, 0.12x, WD 250 mm, 2/3", C-mount, 0.14x, WD 200 mm, 2/3", C-mount, 0.15x, WD 238 mm, 2/3", C-mount, 0.178x, WD 158 mm, 2/3", C-mount, 0.18x, WD 110 mm, 2/3", 0.2x, WD 178 mm, 2/3", C-mount, 0.22x, WD 200 mm, 2/3", C-mount, 0.265x, WD 178 mm, 2/3", C-mount, 0.3x, WD 110 mm, 2/3", C-mount, 0.3x, WD 178 mm, 2/3", C-mount, 0.4x, WD 110 mm, 2/3", 0.5x, WD 110 mm, 2/3", C-mount and 8 more
- Mount
- C-mount
- Image circle
- Up to 8 mm
- Type
- Bi-telecentric
- Coaxial light
- Built-in coaxial light, No coaxial port
- Working distance
- 110-200 mm, 200 mm +
- Sensor format
- 2/3"
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
Features
- Maximum support for 2/3" dia. 11 mm target face camera
- Excellent bilateral telecentric optical path, ultra low distortion design
- Large depth of field design for high and low difference imaging products
- High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
- Lightweight fastening structure designed to perform stably at high speed
- Ultra high differentiation
- Built-in coaxial versions (C suffix)
- WD=110mm, Magnification 0.3X, DOF 7mm, Distortion TV<0.03%.
Typical uses
- Imaging products with high and low differences (large depth of field)
All 29 models in the Bi-telecentric lens for 2/3" sensor (LS-TCL-S95)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-3002 | WD 110 mm, 2/3", C-mount | 2/3" | 110 | $909.00 | View | |
| LS-TCL-3008 | 0.7x, WD 110 mm, 2/3" | 2/3" | 110 | $1,169.00 | View | |
| LS-TCL-3006 | 0.5x, WD 110 mm, 2/3", C-mount | 2/3" | 0.5 | 110 | $1,189.00 | View |
| LS-TCL-3007 | 0.5x, WD 110 mm, 2/3", C-mount | 2/3" | 0.5 | 110 | $1,189.00 | View |
| LS-TCL-3017 | 0.5x, WD 178 mm, 2/3", C-mount | 2/3" | 0.5 | 178 | $1,189.00 | View |
| LS-TCL-3009 | 0.8x, WD 110 mm, 2/3", C-mount | 2/3" | 0.8 | 110 | $1,199.00 | View |
| LS-TCL-3010 | 0.8x, WD 110 mm, 2/3", C-mount | 2/3" | 0.8 | 110 | $1,199.00 | View |
| LS-TCL-3001 | 2x, WD 110 mm, 2/3", C-mount | 2/3" | 2 | 110 | $1,239.00 | View |
| LS-TCL-3011 | 1.5x, WD 110 mm, 2/3", C-mount | 2/3" | 1.5 | 110 | $1,239.00 | View |
| LS-TCL-3012 | 1.5x, WD 110 mm, 2/3", C-mount | 2/3" | 1.5 | 110 | $1,239.00 | View |
| LS-TCL-2999 | 1x, WD 110 mm, 2/3", C-mount | 2/3" | 1 | 110 | $1,239.00 | View |
| LS-TCL-3000 | 1x, WD 110 mm, 2/3", C-mount | 2/3" | 1 | 110 | $1,239.00 | View |
| LS-TCL-3005 | 0.4x, WD 110 mm, 2/3" | 2/3" | 110 | $1,439.00 | View | |
| LS-TCL-3003 | 0.3x, WD 110 mm, 2/3", C-mount | 2/3" | 0.3 | 110 | $1,529.00 | View |
| LS-TCL-3004 | 0.3x, WD 110 mm, 2/3", C-mount | 2/3" | 0.3 | 110 | $1,529.00 | View |
| LS-TCL-3016 | 0.3x, WD 178 mm, 2/3", C-mount | 2/3" | 0.3 | 178 | $1,529.00 | View |
| LS-TCL-3018 | 0.265x, WD 178 mm, 2/3", C-mount | 2/3" | 0.265 | 178 | $1,529.00 | View |
| LS-TCL-3020 | 0.22x, WD 200 mm, 2/3", C-mount | 2/3" | 0.22 | 200 | $1,679.00 | View |
| LS-TCL-3015 | 0.2x, WD 178 mm, 2/3", C-mount | 2/3" | 0.2 | 178 | $1,769.00 | View |
| LS-TCL-3021 | 0.15x, WD 238 mm, 2/3", C-mount | 2/3" | 0.15 | 238 | $2,089.00 | View |
| LS-TCL-3019 | 0.14x, WD 200 mm, 2/3", C-mount | 2/3" | 0.14 | 200 | $2,179.00 | View |
| LS-TCL-3013 | 0.18x, WD 110 mm, 2/3" | 2/3" | 110 | $2,209.00 | View | |
| LS-TCL-3014 | 0.178x, WD 158 mm, 2/3", C-mount | 2/3"dia. 11mm | 158 | $2,219.00 | View | |
| LS-TCL-3022 | 0.12x, WD 250 mm, 2/3", C-mount | 2/3" | 0.12 | 250 | $2,409.00 | View |
| LS-TCL-3023 | 0.095x, WD 250 mm, 2/3", C-mount | 2/3" | 0.095 | 250 | $2,839.00 | View |
| LS-TCL-3024 | 0.78x, WD 290 mm, 2/3", C-mount | 2/3" | 0.78 | 290 | $3,269.00 | View |
| LS-TCL-3025 | 0.063x, WD 320 mm, 2/3", C-mount | 2/3" | 0.063 | 320 | $3,859.00 | View |
| LS-TCL-3027 | 0.06x, WD 398 mm, 2/3" | 2/3" | 398 | $5,009.00 | View | |
| LS-TCL-3026 | 0.053x, WD 372 mm, 2/3", C-mount | 2/3"dia. 11.4mm | 372 | $5,569.00 | View |
