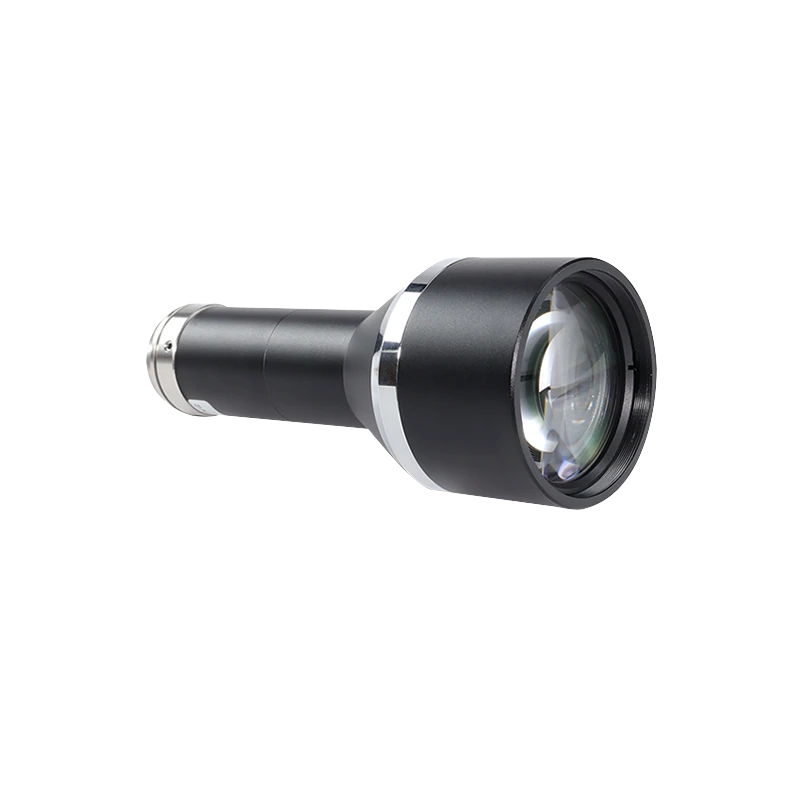

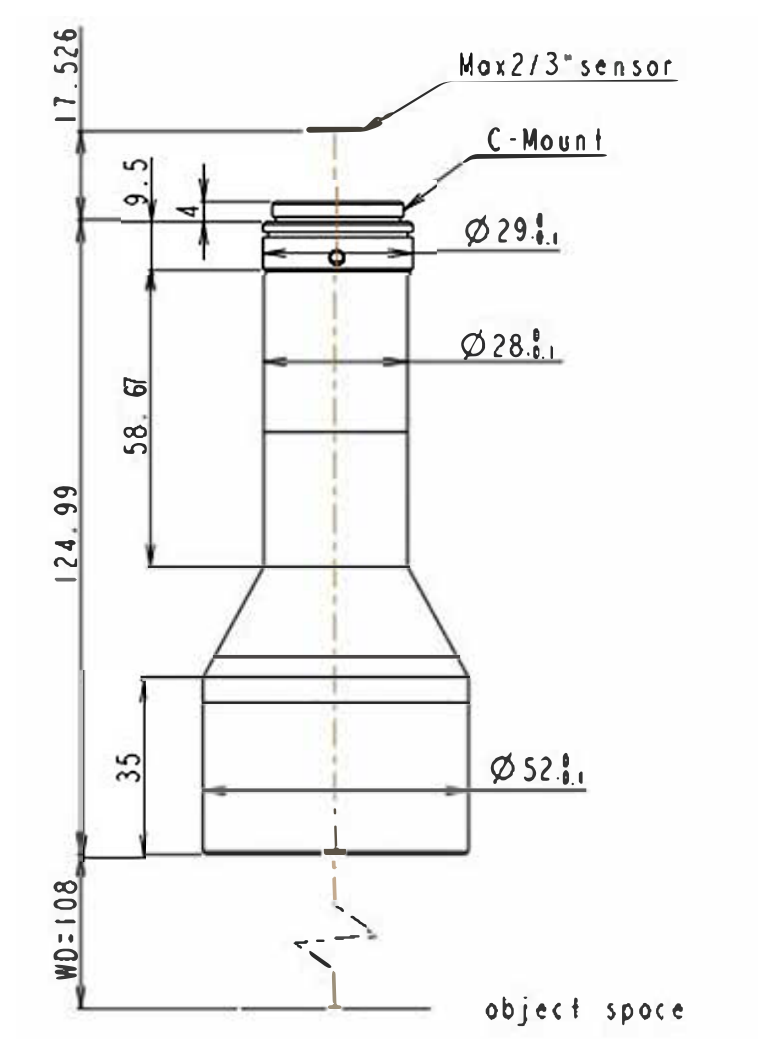

Bi-telecentric lens for 2/3" sensor, 0.3x, WD 110 mm, C-mount, 7 (LS-TCL-3003)

Model LS-TCL-3003

Magnification0.3
MountC-mount
Sensor2/3"
Working distance110 mm
Aperture7
Field of view28x23.6 mm (on 2/3" sensor)

$1,529.00

Ships in 2-3 weeks

0.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bi-telecentric C-mount lens supporting 2/3" (dia. 11 mm) target-face cameras, with an ultra-low-distortion bilateral telecentric optical path, large depth of field and a hardware measurement error below 0.3 pixel over the full field of view; built-in coaxial versions (C suffix).

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-3003
Mag. (x)	0.3
WD (mm)	110
F/NO	7
DOF (mm)	8
Type	Telecentric lens
DOF	7mm
Maximum View Distance	36.6mm
Custom Design	Supported
Lighting mode	non-coaxial
DOF (mm)	7mm
View distance maximum (mm)	dia.36.6
View distance 1/2.5" (5.7x4.2) (mm)	19x14
View distance 1/2.3" (6.4x4.5) (mm)	21.3x15
View distance 2/3" (8.4x7.1) (mm)	28x23.6

Optics

Telecentric degree	0.03
Distortion	0.03
Magnification	0.3
MTF>0.3 (LP/mm)	130
Magnification (x)	0.3
Working distance (mm)	110
Iris (F)	F7
Telecentricity (°)	<0.03°
Optical distortion (%)	<0.03%
Aperture	7
Field of view	28x23.6 mm (on 2/3" sensor)

Sensor and imaging

Sensor size	2/3" dia.11mm
Sensor format	2/3"

Mechanical

Mount	C
Main Material	Aluminum Alloy + optical Glass
Shipping weight	0.80 kg

Downloads

Datasheet (PDF)LS-TCL-3003 · 1.4 MB

Features

Maximum support for 2/3" dia. 11 mm target face camera
Excellent bilateral telecentric optical path, ultra low distortion design
Large depth of field design for high and low difference imaging products
High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
Lightweight fastening structure designed to perform stably at high speed
Ultra high differentiation
Built-in coaxial versions (C suffix)
WD=110mm, Magnification 0.3X, DOF 7mm, Distortion TV<0.03%.
Eliminate parallax and distortion ‌.
Compact Metallic construction; Multi-layer Coating; Magnification does not change with respect to depth.
Suitable for mechanical parts measurement, electronic components inspection, glass inspection and other special applications.

Applications

Imaging products with high and low differences (large depth of field)

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Bi-telecentric lens for 2/3" sensor (LS-TCL-S95) series

See all 29 models
