Telecentric lenses

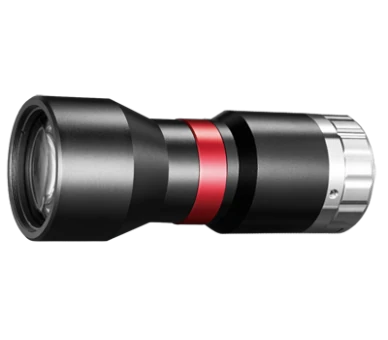

Bi-telecentric lens (LS-TCL-S72)
- 15 models
- from $1,399.00
- Series LS-TCL-S72
The Bi-telecentric lens (LS-TCL-S72) is a range of 15 telecentric lenses from LumaSpec Vision, from $1,399.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.076x, WD 410 mm, 1.1", C-mount, 0.108x, WD 318 mm, 1.1", C-mount, 0.123x, WD 301 mm, 1.1", C-Mount, 0.134x, WD 288 mm, 1.1", C-mount, 0.165x, WD 251 mm, 1.1", C-Mount, 0.185x, WD 238 mm, 1.1", C-mount, 0.204x, WD 208 mm, 1.1", C-mount, 0.229x, WD 230 mm, 1.1", C-Mount, 0.255x, WD 178 mm, 1.1", C-mount, 0.286x, WD 159 mm, 1.1", C-Mount, 0.328x, WD 138 mm, 1.1", C-mount, 0.382x, WD 128 mm, 1.1", C-mount, 0.437x, WD 118 mm, 1.1", C-mount, 0.509x, WD 111 mm, 1.1", C-mount, 0.707x, WD 72 mm, 1.1", C-mount
- Mount
- C-mount
- Image circle
- 16-22 mm
- Type
- Bi-telecentric
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1.1" - 1.2"
Features
- Largest FOV from 26mm upto 300mm
- Optimized for 1/2.5"~1.1" C-Mount cameras
- Low distortion, good telecentricity, big aperture and big depth of field for high end application.
All 15 models in the Bi-telecentric lens (LS-TCL-S72)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2482 | 0.707x, WD 72 mm, 1.1", C-mount | 0.707 | 72±2 | 10.8 | $1,399.00 | View |
| LS-TCL-2483 | 0.509x, WD 111 mm, 1.1", C-mount | 111±2 | 9.6 | $1,629.00 | View | |
| LS-TCL-2484 | 0.437x, WD 118 mm, 1.1", C-mount | 0.437 | 118±2 | 7.2 | $1,769.00 | View |
| LS-TCL-2485 | 0.382x, WD 128 mm, 1.1", C-mount | 0.382 | 128±2 | 7.9 | $1,909.00 | View |
| LS-TCL-2487 | 0.286x, WD 159 mm, 1.1", C-Mount | 0.286 | 159±2 | 6.18 | $1,949.00 | View |
| LS-TCL-2486 | 0.328x, WD 138 mm, 1.1", C-mount | 0.328 | 138±2 | 6.7 | $2,099.00 | View |
| LS-TCL-2489 | 0.229x, WD 230 mm, 1.1", C-Mount | 0.229 | 230±2 | 6.6 | $2,249.00 | View |
| LS-TCL-2488 | 0.255x, WD 178 mm, 1.1", C-mount | 0.255 | 178±2 | 6.2 | $2,469.00 | View |
| LS-TCL-2492 | 0.165x, WD 251 mm, 1.1", C-Mount | 0.165 | 251±3 | 6.18 | $2,849.00 | View |
| LS-TCL-2490 | 0.204x, WD 208 mm, 1.1", C-mount | 0.204 | 208±2 | 6.2 | $2,889.00 | View |
| LS-TCL-2491 | 0.185x, WD 238 mm, 1.1", C-mount | 238±3 | 7.2 | $3,139.00 | View | |
| LS-TCL-2494 | 0.123x, WD 301 mm, 1.1", C-Mount | 0.123 | 301±4 | 6.18 | $3,559.00 | View |
| LS-TCL-2493 | 0.134x, WD 288 mm, 1.1", C-mount | 288±4 | 6.18 | $4,059.00 | View | |
| LS-TCL-2495 | 0.108x, WD 318 mm, 1.1", C-mount | 318±4 | 6.18 | $4,829.00 | View | |
| LS-TCL-2496 | 0.076x, WD 410 mm, 1.1", C-mount | 410±5 | 6.18 | $6,669.00 | View |
