Telecentric lenses

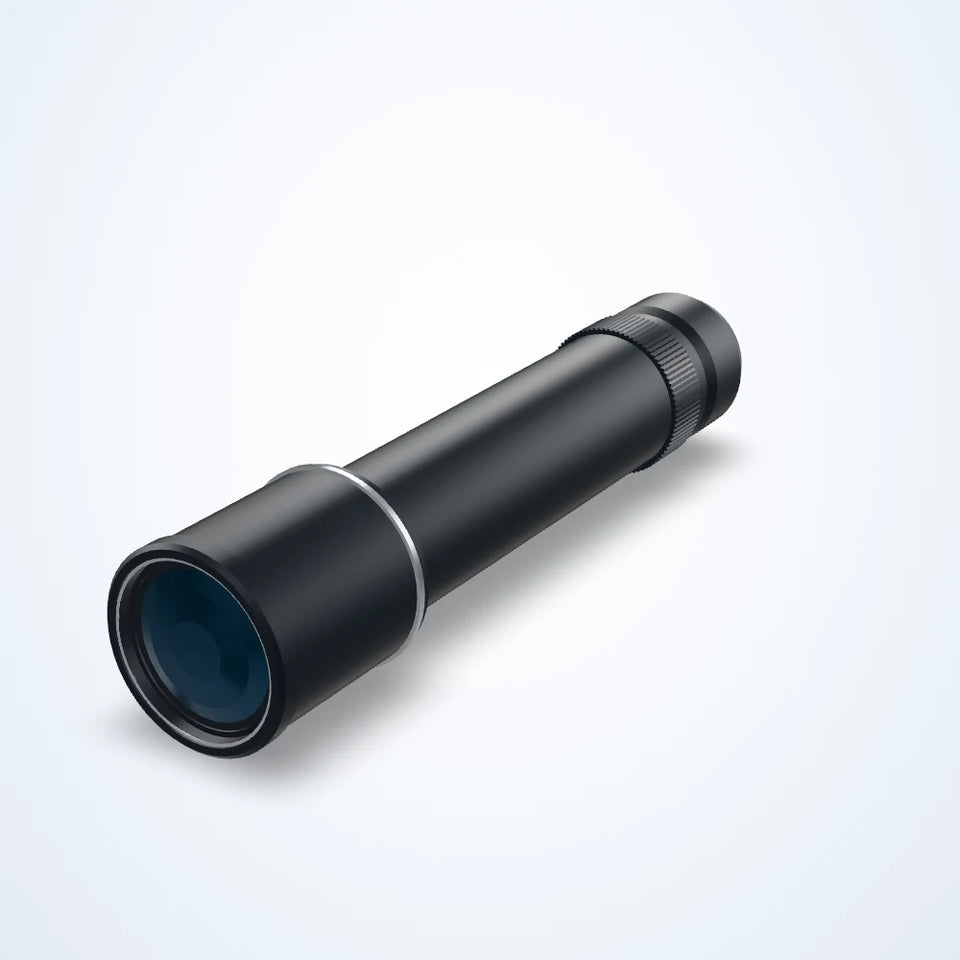

Bi-telecentric lenses, 1.75" (LS-TCL-S52)
- 21 models
- from $590.00
- Series LS-TCL-S52
The Bi-telecentric lenses, 1.75" (LS-TCL-S52) is a range of 21 telecentric lenses from LumaSpec Vision, from $590.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.097x, WD 465 mm, 1.75", 0.112x, WD 338 mm, 1.75", 0.121x, WD 410 mm, 1.75", 0.134x, WD 372 mm, 1.75", 0.153x, WD 330 mm, 1.75", 0.171x, WD 318 mm, 1.75", 0.193x, WD 300 mm, 1.75", 0.213x, WD 288 mm, 1.75", 0.242x, WD 273 mm, 1.75", 0.264x, WD 263 mm, 1.75", 0.29x, WD 258 mm, 1.75", 0.322x, WD 208 mm, 1.75", 0.363x, WD 228 mm, 1.75", 0.403x, WD 178 mm, 1.75", 0.453x, WD 158 mm, 1.75", 0.518x, WD 128 mm, 1.75" and 4 more
- Image circle
- 22-30 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 4/3" - APS-C
Features
- Constant magnification over the depth of field: size readings do not change with distance
- Low distortion for measurement
All 21 models in the Bi-telecentric lenses, 1.75" (LS-TCL-S52)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-1208 | 1.115x, WD 73 mm, 1.75" | 1.115x | 73±1 mm | dia. 26 mm | $590.00 | View |
| LS-TCL-1206 | 0.69x, WD 118 mm, 1.75" | 0.69x | 118±3 mm | dia. 42 mm | $695.00 | View |
| LS-TCL-1204 | 0.604x, WD 128 mm, 1.75" | 0.604x | 128±3 mm | dia. 48 mm | $705.00 | View |
| LS-TCL-1205 | 0.604x, WD 128 mm, 1.75" | 0.604x | 128±3 mm | dia. 48 mm | $705.00 | View |
| LS-TCL-1201 | 0.403x, WD 178 mm, 1.75" | 0.403x | 178±3 mm | dia. 72 mm | $740.00 | View |
| LS-TCL-1202 | 0.453x, WD 158 mm, 1.75" | 0.453x | 158±3 mm | dia. 64 mm | $740.00 | View |
| LS-TCL-1203 | 0.518x, WD 128 mm, 1.75" | 0.518x | 128±3 mm | dia. 56 mm | $740.00 | View |
| LS-TCL-1199 | 0.322x, WD 208 mm, 1.75" | 0.322x | 208±3 mm | dia. 90 mm | $1,285.00 | View |
| LS-TCL-1197 | 0.264x, WD 263 mm, 1.75" | 0.264x | 263±4 mm | dia. 110 mm | $1,340.00 | View |
| LS-TCL-1198 | 0.29x, WD 258 mm, 1.75" | 0.29x | 258±4 mm | dia. 100 mm | $1,340.00 | View |
| LS-TCL-1200 | 0.363x, WD 228 mm, 1.75" | 0.363x | 228±4 mm | dia. 80 mm | $1,705.00 | View |
| LS-TCL-1207 | 0.806x, WD 110 mm, 1.75" | 0.806x | 110±2 mm | dia. 36 mm | $1,705.00 | View |
| LS-TCL-1195 | 0.213x, WD 288 mm, 1.75" | 0.213x | 288±5 mm | dia. 136 mm | $2,750.00 | View |
| LS-TCL-1196 | 0.242x, WD 273 mm, 1.75" | 0.242x | 273±5 mm | dia. 120 mm | $2,750.00 | View |
| LS-TCL-1194 | 0.193x, WD 300 mm, 1.75" | 0.193x | 300±5 mm | dia. 150 mm | $3,520.00 | View |
| LS-TCL-1193 | 0.171x, WD 318 mm, 1.75" | 0.171x | 318±5 mm | dia. 170 mm | $3,650.00 | View |
| LS-TCL-1192 | 0.153x, WD 330 mm, 1.75" | 0.153x | 330±5 mm | dia. 190 mm | $4,200.00 | View |
| LS-TCL-1190 | 0.121x, WD 410 mm, 1.75" | 0.121x | 410±6 mm | dia. 240 mm | $5,340.00 | View |
| LS-TCL-1191 | 0.134x, WD 372 mm, 1.75" | 0.134x | 372±5 mm | dia. 216 mm | $5,340.00 | View |
| LS-TCL-1189 | 0.112x, WD 338 mm, 1.75" | 0.112x | 338±5 mm | dia. 258 mm | $8,345.00 | View |
| LS-TCL-1188 | 0.097x, WD 465 mm, 1.75" | 0.097x | 465±6 mm | dia. 300 mm | $8,800.00quote | View |
