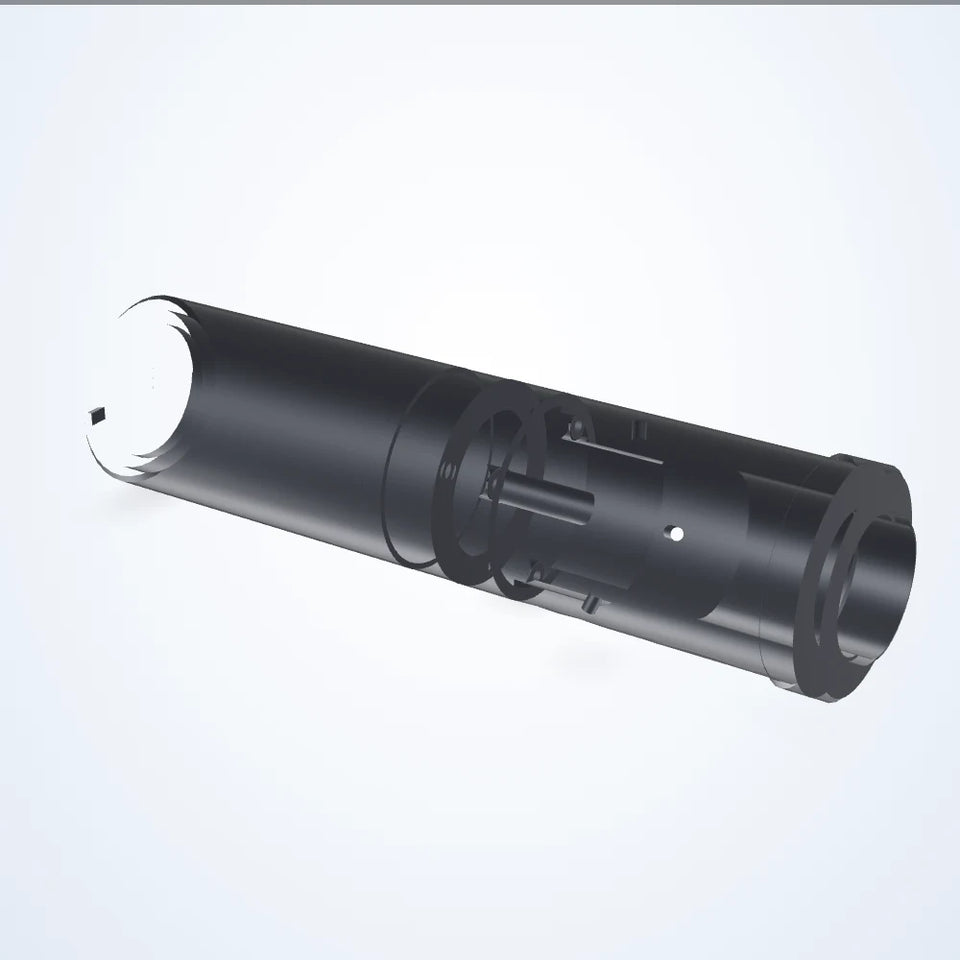

Telecentric lens series, 1.1", C-mount (S16)

Telecentric lenses

Telecentric lens series, 1.1", C-mount (S16)

  • 12 models
  • from $2,349.00
  • Series LS-TCL-S16

The Telecentric lens series, 1.1", C-mount (S16) is a range of 12 telecentric lenses from LumaSpec Vision, from $2,349.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 12 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.059×, 0.075×, 0.1×, 0.118×, 0.153×, 0.182×, 0.227×, 0.259×, 0.303×, 0.392×, 0.564×, 0.85×
Mount
C-mount
Image circle
16-22 mm
Type
Object-side telecentric
Magnification
Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x
Working distance
Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
Sensor format
1.1" - 1.2"

All 12 models in the Telecentric lens series, 1.1", C-mount (S16)

Link
LS-TCL-02690.85×8 μm43.1 mm155.2 x 37.7 x 37.7 mm$2,349.00quoteView
LS-TCL-02700.564×12 μm67.2 mm177 x 44 x 44 mm$2,489.00quoteView
LS-TCL-02710.392×18 μm102.6 mm204.4 x 61 x 61 mm$2,749.00quoteView
LS-TCL-02720.303×17 μm132.9 mm223.4 x 75 x 75 mm$2,879.00quoteView
LS-TCL-02730.259×20 μm157.8 mm246.7 x 80 x 80 mm$3,139.00quoteView
LS-TCL-02740.227×22 μm181.9 mm284 x 100 x 100 mm$3,399.00quoteView
LS-TCL-02750.182×28 μm226.8 mm313.7 x 116 x 116 mm$3,919.00quoteView
LS-TCL-02760.153×33 μm278.6 mm354.7 x 143 x 143 mm$4,739.00quoteView
LS-TCL-02770.118×43 μm334.6 mm440.4 x 180 x 180 mm$5,909.00quoteView
LS-TCL-02780.1×43 μm396 mm499.8 x 200 x 200 mm$7,229.00quoteView
LS-TCL-02790.075×68 μm527.6 mm640.3 x 260 x 260 mm$11,619.00quoteView
LS-TCL-02800.059×86 μm492.9 mm801.6 x 322 x 322 mm$15,619.00quoteView
