Telecentric lenses

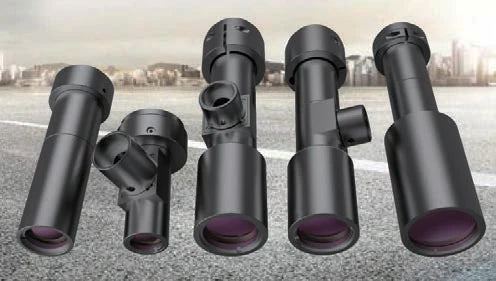

Macro/megapixel telecentric lens, WD 110 mm
- 18 models
- from $579.00
- Series LS-VDH-110
The Macro/megapixel telecentric lens, WD 110 mm is a range of 18 telecentric lenses from LumaSpec Vision, from $579.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3x, WD 110 mm, 2/3", C-mount, 0.5x, WD 110 mm, 2/3", C-mount, 0.8x, WD 110 mm, 2/3", C-mount, 1x, WD 110 mm, 2/3", C-mount, 1.5x, WD 110 mm, 2/3", C-mount, 2x, WD 110 mm, 2/3", C-mount, 3x, WD 110 mm, 2/3", C-mount, 4x, WD 110 mm, 2/3", C-mount, 6x, WD 110 mm, 2/3", C-mount
- Mount
- C-mount
- Image circle
- 8-11 mm
- Type
- Object-side telecentric
- Coaxial light
- Built-in coaxial light, No coaxial port
- Magnification
- 0.3-0.6x, 0.6-1x, 1-2x, 2x +
- Working distance
- 110-200 mm
- Sensor format
- 2/3"
Features
- Full range of object-side telecentric fixed magnification lenses
- Multiple working distances / magnifications / sensor sizes for selection
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Compact design with coaxial illumination options
- Full range of object side telecentric fixed magnification lenses, with multiple working distances / magnifications / CCD sizes for selection
- Perfect image and supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution, compact design with coaxial illumination options
Typical uses
- High-precision visual positioning
- High-precision visual positioning and similar applications
All 18 models in the Macro/megapixel telecentric lens, WD 110 mm
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-VDH40-110-230 | 4x, WD 110 mm, 2/3", C-mount | 5 | 4 | 22 | $1,229.00 | View |
| LS-VDH40-110C-230 | 4x, WD 110 mm, 2/3", C-mount | 5 | 4 | 22 | $1,229.00 | View |
| LS-VDH30-110-230 | 3x, WD 110 mm, 2/3", C-mount | 5 | 3 | 18.3 | $1,239.00 | View |
| LS-VDH30-110C-230 | 3x, WD 110 mm, 2/3", C-mount | 5 | 3 | 18.3 | $1,239.00 | View |
| LS-VDH60-110-230 | 6x, WD 110 mm, 2/3", C-mount | 5 | 6 | 38.6 | $859.00 | View |
| LS-VDH60-110C-230 | 6x, WD 110 mm, 2/3", C-mount | 5 | 6 | 38.7 | $859.00 | View |
| LS-VDH20-110-230 | 2x, WD 110 mm, 2/3", C-mount | 5 | 2 | 12.2 | $1,239.00 | View |
| LS-VDH20-110C-230 | 2x, WD 110 mm, 2/3", C-mount | 5 | 2 | 12.2 | $1,239.00 | View |
| LS-VDH15-110-230 | 1.5x, WD 110 mm, 2/3", C-mount | 5 | 1.5 | 10 | $1,239.00 | View |
| LS-VDH15-110C-230 | 1.5x, WD 110 mm, 2/3", C-mount | 5 | 1.5 | 10 | $1,239.00 | View |
| LS-VDH10-110-230 | 1x, WD 110 mm, 2/3", C-mount | 5 | 1 | 11 | $1,239.00 | View |
| LS-VDH10-110C-230 | 1x, WD 110 mm, 2/3", C-mount | 5 | 1 | 11 | $1,239.00 | View |
| LS-VDH08-110-230 | 0.8x, WD 110 mm, 2/3", C-mount | 6.25 | 0.8 | 11 | $1,199.00 | View |
| LS-VDH08-110C-230 | 0.8x, WD 110 mm, 2/3", C-mount | 6.25 | 0.8 | 11 | $1,199.00 | View |
| LS-VDH05-110-230 | 0.5x, WD 110 mm, 2/3", C-mount | 11 | 0.5 | 9.6 | $1,109.00 | View |
| LS-VDH05-110C-230 | 0.5x, WD 110 mm, 2/3", C-mount | 11 | 0.5 | 9.6 | $1,109.00 | View |
| LS-VDH03-110-230 | 0.3x, WD 110 mm, 2/3", C-mount | 3.75 | 0.3 | 5.6 | $1,529.00 | View |
| LS-VDH03-110C-230 | 0.3x, WD 110 mm, 2/3", C-mount | 3.75 | 0.3 | 5.6 | $1,529.00 | View |
