Telecentric lenses

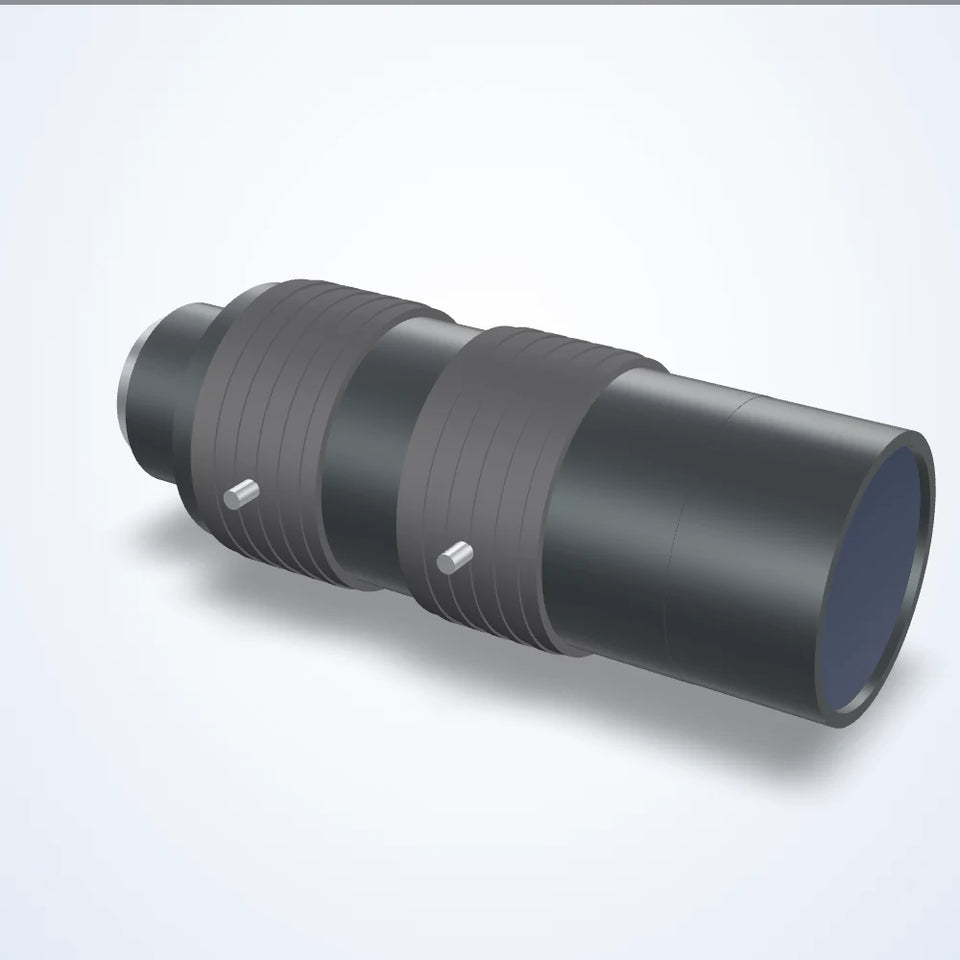

Telecentric lens series, C-mount (S01)
- 4 models
- from $1,089.00
- Series LS-TCL-S01
The Telecentric lens series, C-mount (S01) is a range of 4 telecentric lenses from LumaSpec Vision, from $1,089.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.5x - 1.0x, 0.8x / 0.88x / 0.69x, 1.3x / 1.47x / 1.15x, 2.0x / 2.2x / 1.725x
- Mount
- C-mount
- Image circle
- 8-11 mm, 22-30 mm
- Type
- Object-side telecentric
- Magnification
- 0.3-0.6x, 0.6-1x, 1-2x, 2x +
- Working distance
- Under 65 mm, 110-200 mm
- Sensor format
- 2/3", 4/3" - APS-C
All 4 models in the Telecentric lens series, C-mount (S01)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-0002 | 2.0x / 2.2x / 1.725x | 2.0x: 111.4mm, 2.2x: 109.4mm, 1.725x: 114.8mm | 48 x 126.95 | 6 groups 10 elements | $1,089.00quote | View |
| LS-TCL-0003 | 1.3x / 1.47x / 1.15x | 111.6mm | 50 x 114 | 7 groups 10 elements | $1,089.00quote | View |
| LS-TCL-0004 | 0.8x / 0.88x / 0.69x | 111.0mm | 50 x 100.4 | 8 groups 11 elements | $1,089.00quote | View |
| LS-TCL-0001 | 0.5x - 1.0x | 0.5x: 80.0mm, 1.0x: 81.8mm | 82 x 119.6 | 13 groups 16 elements | $1,919.00quote | View |
