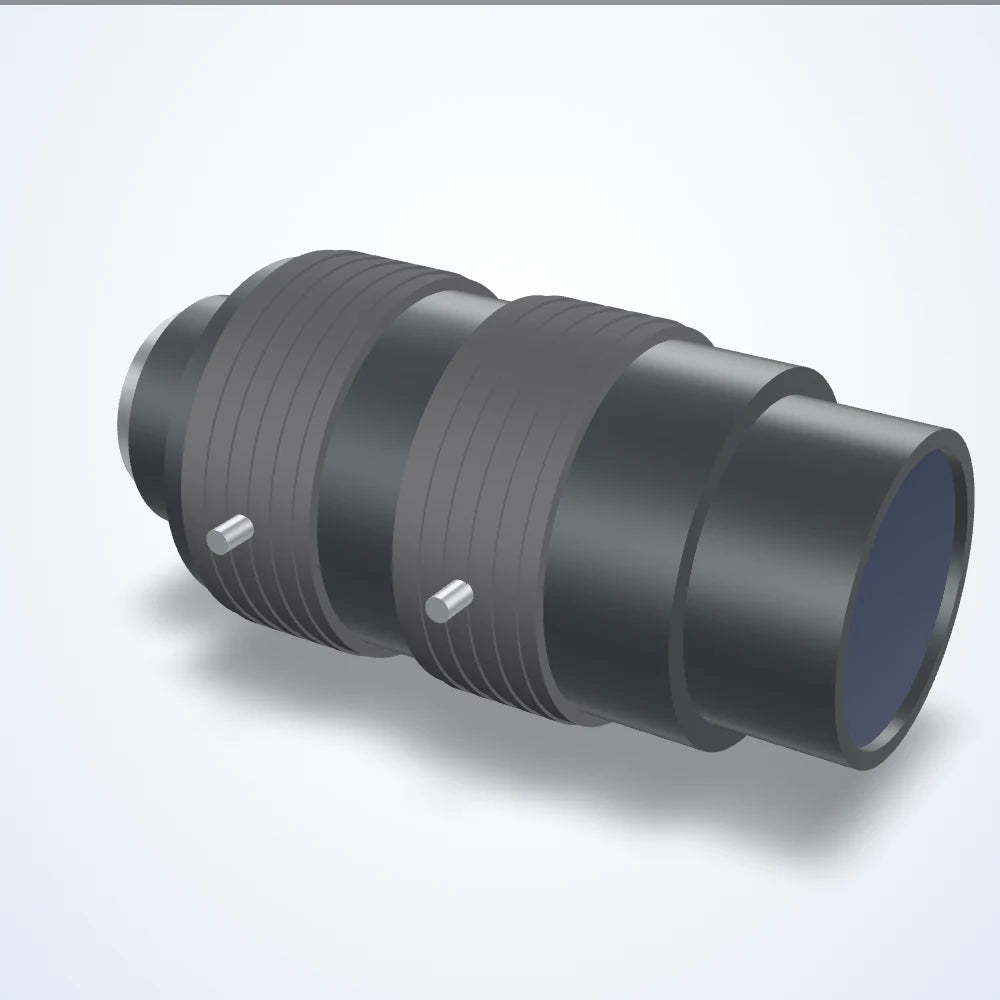

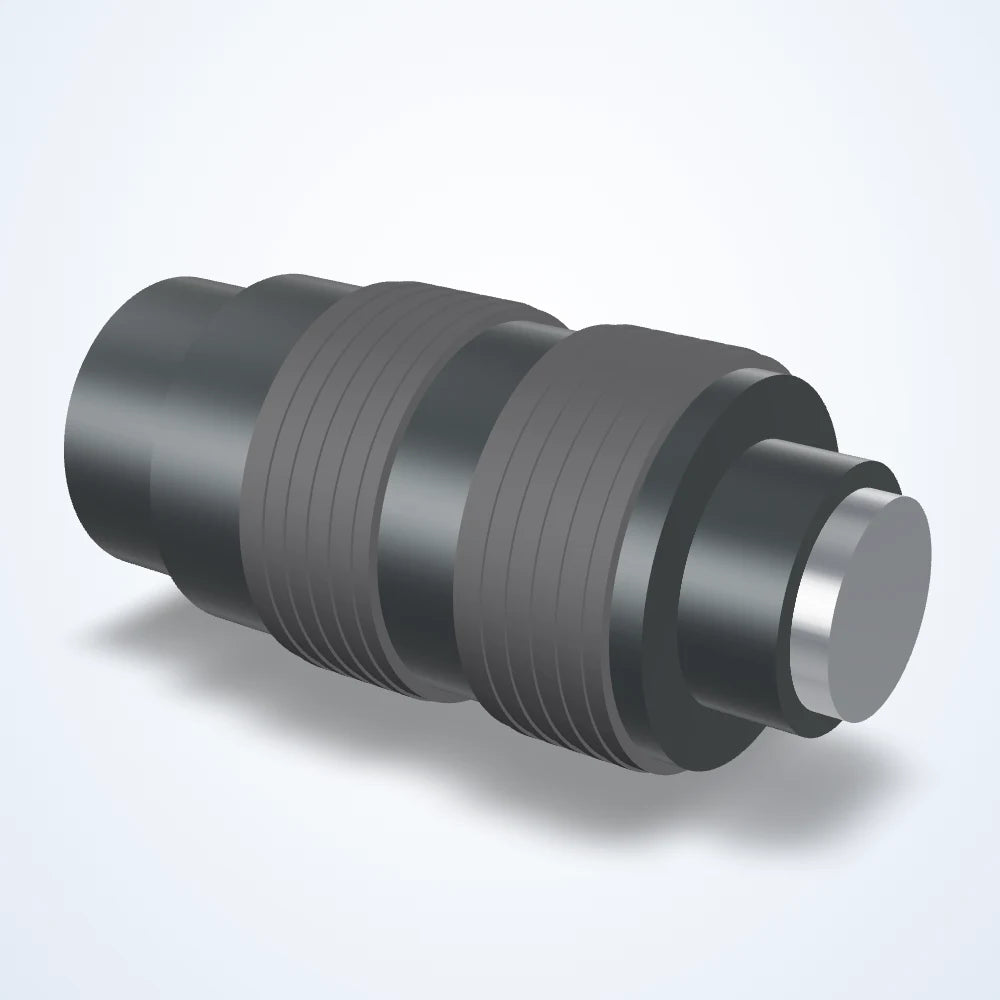

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.69 - 0.88× telecentric lens, 2/3", C-mount (LS-TCL-0004)
Model LS-TCL-0004
- Magnification0.8x / 0.88x / 0.69x
- MountC-mount
- Sensor2/3"
- Working distance111.0mm
- ApertureTelecentric
- Resolution120
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 111.0mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0004 |
|---|---|
| Element | 8 groups 11 elements |
| Exit pupil | -166.5mm / -381.4mm / -75.6mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 30.0mm / Rear 14.0mm |
| Lens type | Telecentric |
| N.a. (object) | 0.097 / 0.130 / 0.080 |
| Objective n.a. | 0.07 - 0.07 - 0.07 |
| Shooting range (0.8x) | V 8.2mm, H 11.0mm, D 13.7mm |
| Shooting range @ 1/1.8″ | 10.4×7.8 - 9.0×6.7 -8.2×6.1 |
| Shooting range @ 1/2″ | 9.3×7.0 - 8.0×6.0 - 7.3×5.5 |
| Shooting range @ 2/3″ | 12.7×9.6 - 11.0×8.2 - 10.0×7.5 |
| Spectrum | Visible |
| Type | 0.8x (0.69x-0.88x) varifocal telecentric |
| W.d(mm) | 111.0 - 111.0 - 111.0 |
Optics
| Magnification | 0.8x / 0.88x / 0.69x |
|---|---|
| Working distance | 111.0mm |
| Distortion | 0.8x: -0.009%, 0.88x: 0.005%, 0.69x: -0.001% (TV) |
| Aperture (max) | Telecentric |
| Back focal length | 14.7 mm in air |
| Focus control | Manual |
| Image circle | 11 mm |
| Image size | 6.6x8.8mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Shooting magnification | 0.69x 0.80x 0.88x |
| Telecentricity | 99% |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 50 x 100.4 |
| Front diameter | 30 mm |
| Overall length (two positions drawn) | 121.5 mm (0.88x) / 100.4 mm (0.69x) |
| Weight (g) | 290 |
LS-TCL-0004
See this component from every angle.

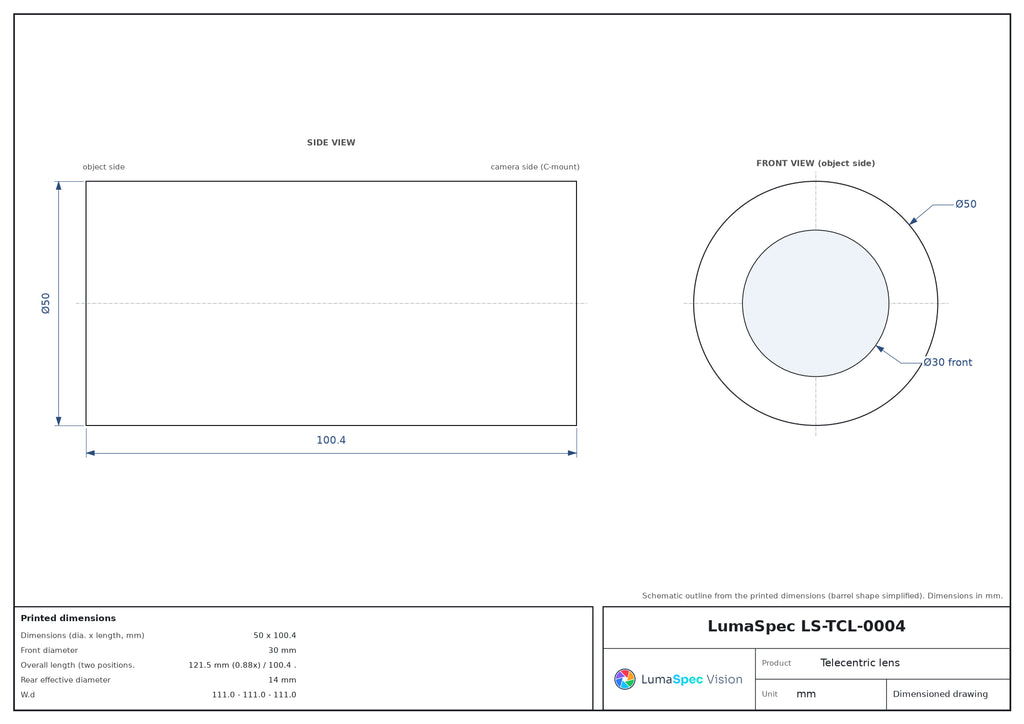

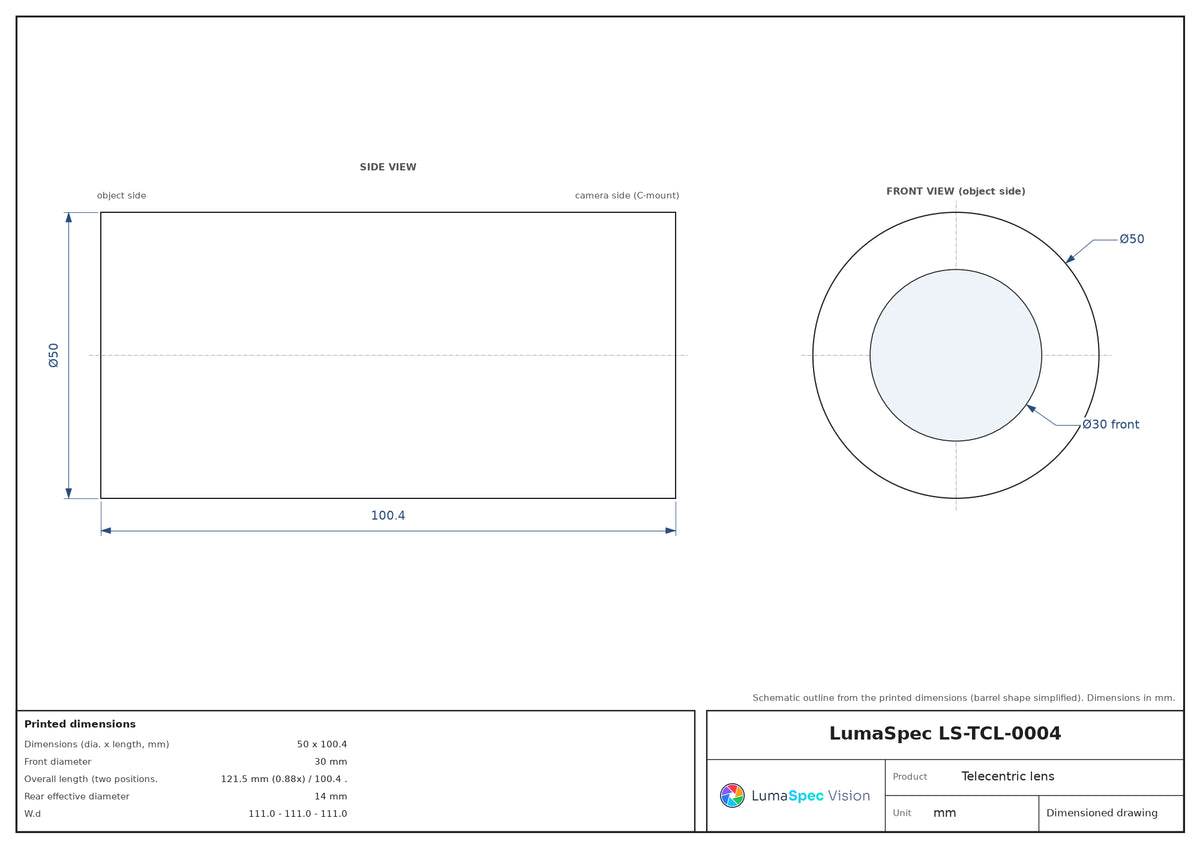

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 0.8x / 0.88x / 0.69x
- Max. sensor format
- 2/3"
- Mount
- C-mount
- Dimensions (dia. x length, mm)
- 50 x 100.4
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Telecentric lens series, C-mount (S01) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0002 | 2.0x / 2.2x / 1.725x | $1,089.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0003 | 1.3x / 1.47x / 1.15x | $1,089.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0001 | 0.5x - 1.0x | $1,919.00 Quote | Lead time confirmed with your quote | View |
