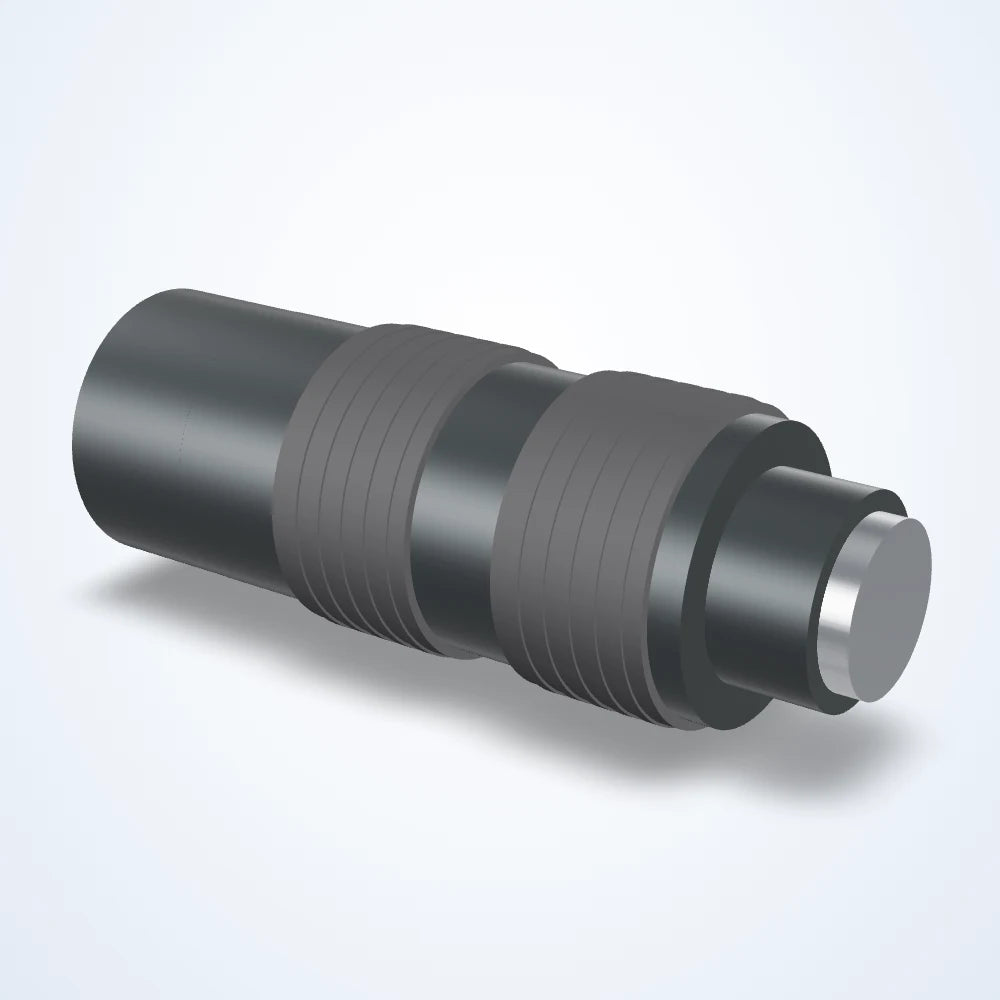

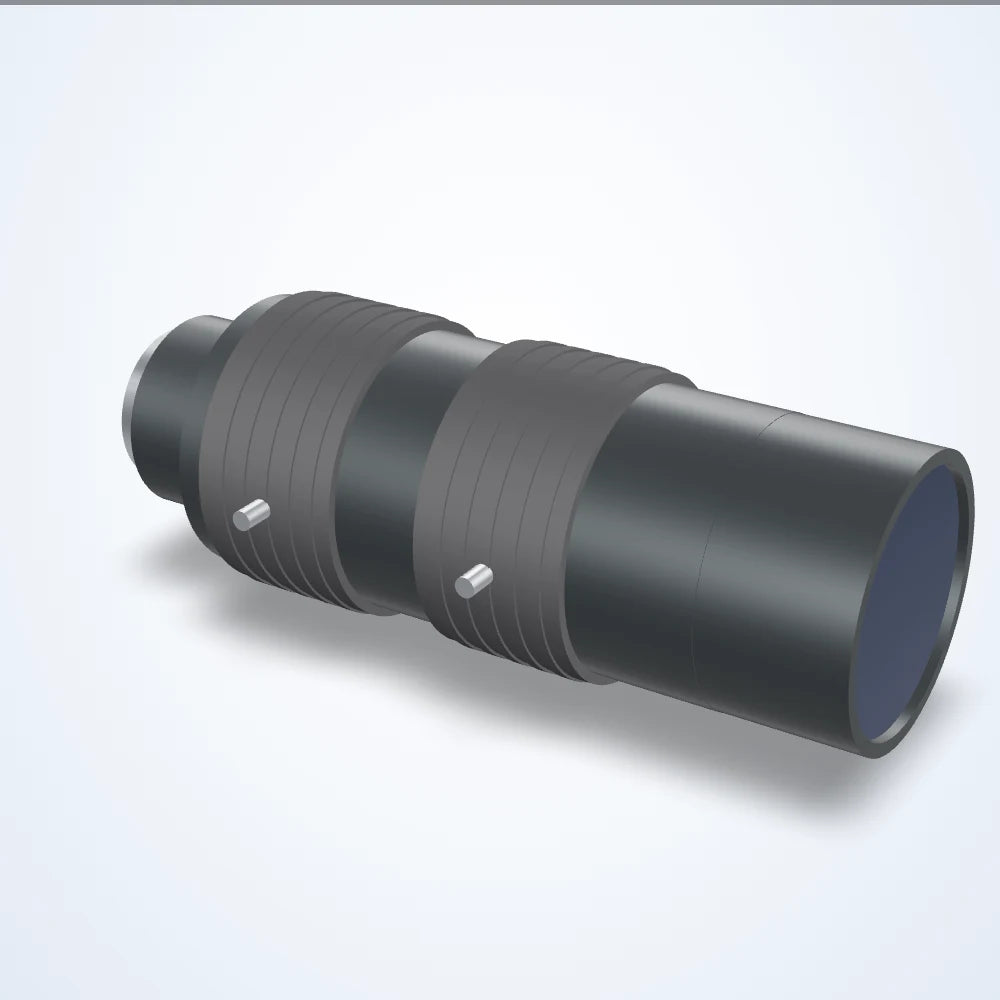

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
1.725 - 2.2× telecentric lens, 2/3", C-mount (LS-TCL-0002)
Model LS-TCL-0002
- Magnification2.0x / 2.2x / 1.725x
- MountC-mount
- Sensor2/3"
- ApertureTelecentric
- Resolution120
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 2.0x: 111.4mm, 2.2x: 109.4mm, 1.725x: 114.8mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0002 |
|---|---|
| Element | 6 groups 10 elements |
| Exit pupil | -86.3mm / -96.0mm / -74.5mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 36.3mm / Rear 11.1mm |
| Lens type | Telecentric |
| N.a. (object) | 0.032 / 0.026 / 0.043 |
| Objective n.a. | 0.131 - 0.131 - 0.131 |
| Shooting range (2.0x) | V 3.3mm, H 4.4mm, D 5.5mm |
| Shooting range @ 1/1.8″ | 4.2×3.1 - 3.6×2.7 - 3.3×2.4 |
| Shooting range @ 1/2″ | 3.7×2.8 - 3.2×2.4 - 2.9×2.2 |
| Shooting range @ 2/3″ | 5.1×3.8 - 4.4×3.3 - 4.0×3.0 |
| Spectrum | Visible |
| Type | 2.0x (2.2x-1.725x) varifocal telecentric |
| W.d(mm) | 114.8 - 111.4 - 109.4 |
Optics
| Magnification | 2.0x / 2.2x / 1.725x |
|---|---|
| Working distance | 2.0x: 111.4mm, 2.2x: 109.4mm, 1.725x: 114.8mm |
| Distortion | 2.0x: 0.004%, 2.2x: 0.001%, 1.725x: 0.011% (TV) |
| Aperture (max) | Telecentric |
| Back focal length | 14.7 mm in air |
| Focus control | Manual |
| Image circle | 11 mm |
| Image size | 6.6x8.8mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Shooting magnification | 1.725 - 2.2× |
| Telecentricity | 99% |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

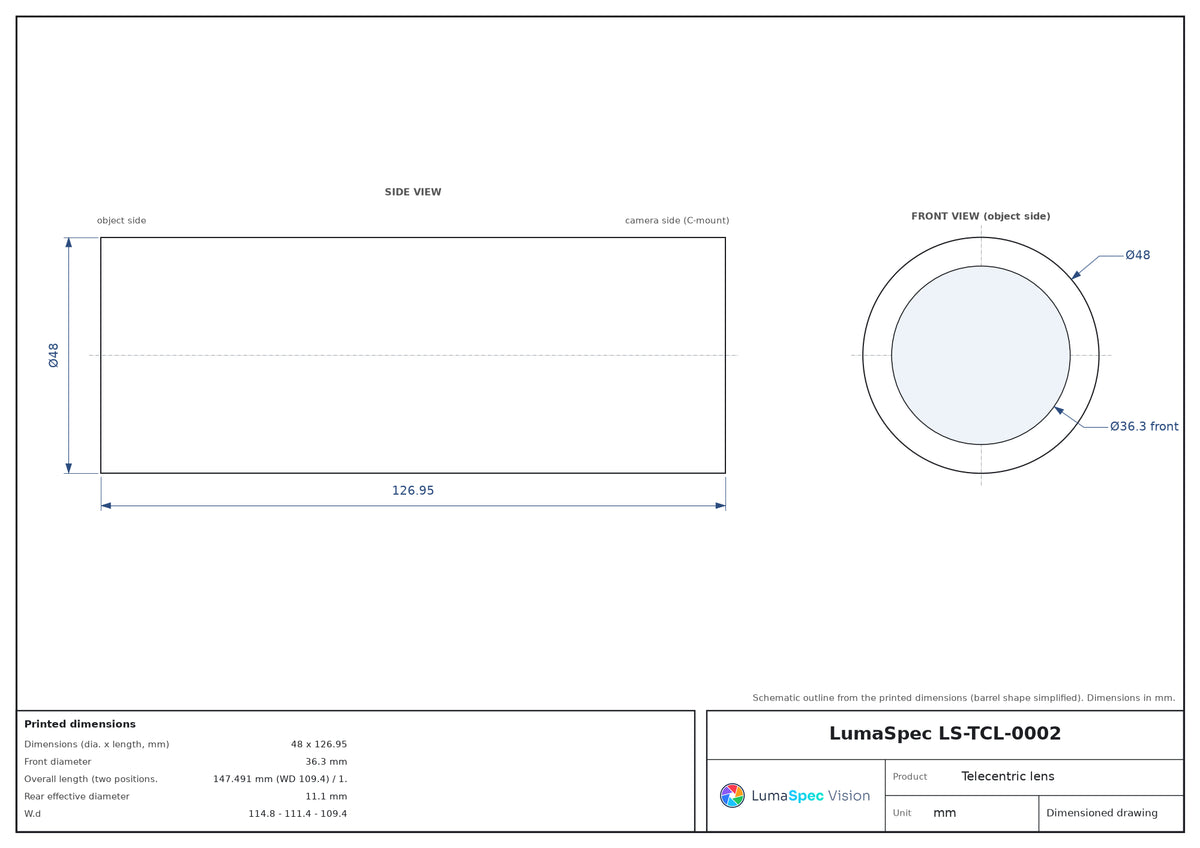

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 48 x 126.95 |
| Front diameter | 36.3 mm |
| Overall length (two positions drawn) | 147.491 mm (WD 109.4) / 126.95 mm (WD 114.8) |
| Weight (g) | 420 |
LS-TCL-0002
See this component from every angle.
Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 2.0x / 2.2x / 1.725x
- Max. sensor format
- 2/3"
- Mount
- C-mount
- Dimensions (dia. x length, mm)
- 48 x 126.95
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
