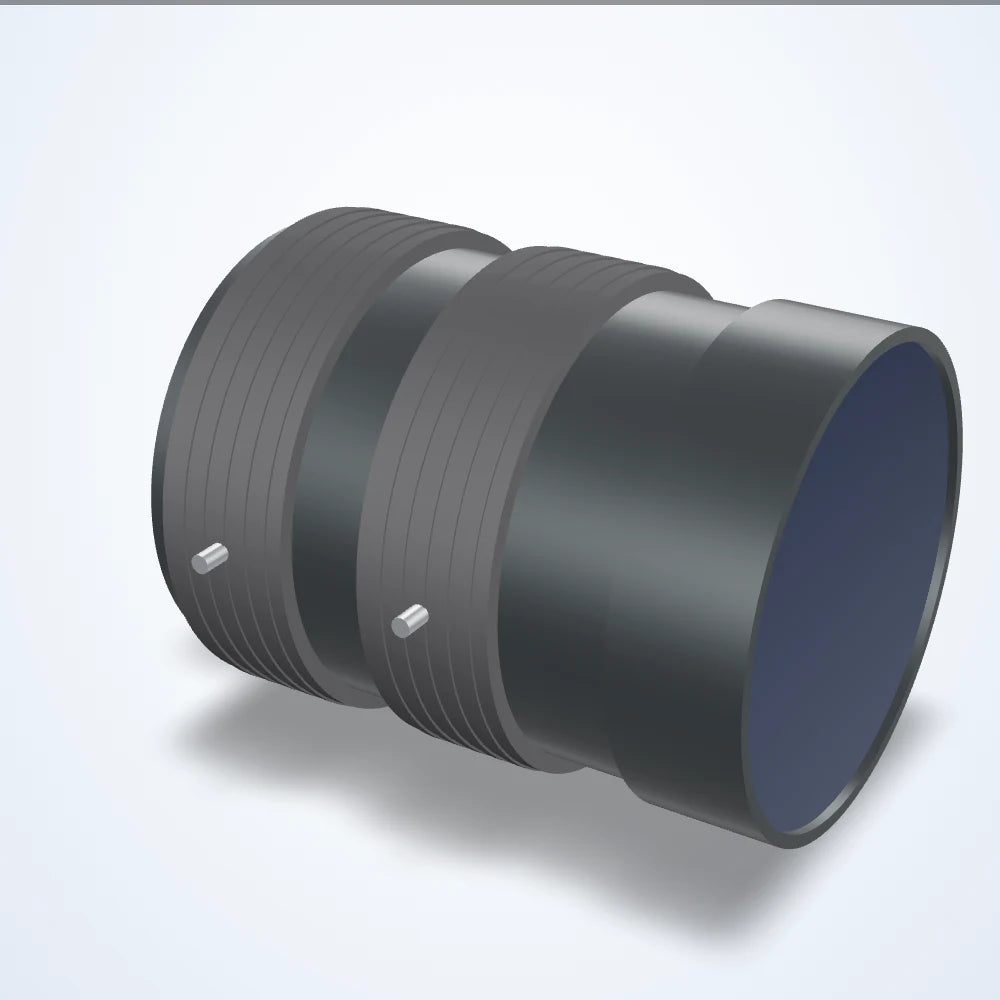

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.5 - 1.0× telecentric lens, 4/3", C-mount (LS-TCL-0001)
Model LS-TCL-0001
- Magnification0.5x - 1.0x
- MountC-mount
- Sensor4/3"
- Working distance0.5x: 80.0mm, 1.0x: 81.8mm
- ApertureTelecentric
- Resolution120
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 0.5x: 80.0mm, 1.0x: 81.8mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0001 |
|---|---|
| Element | 13 groups 16 elements |
| Exit pupil | -20.0mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 54.4mm / Rear 16.6mm |
| Lens type | Telecentric |
| Objective n.a. | 0.5x: 0.05, 1.0x: 0.1 |
| Shooting range | V 27.6-13.8mm, H 36.8-18.4mm, D 46.0-23.0mm |
| Shooting range @ 1″ | 25.6×19.2 - 12.8×9.6 |
| Shooting range @ 2/3″ | 17.6×13.2 - 8.8×6.6 |
| Shooting range @ 4/3″ | 36.8×27.6 - 18.4×13.8 |
| Spectrum | Visible |
| Type | 0.5x-1.0x telecentric |
| W.d(mm) | 80 - 81.8 |
Optics
| Magnification | 0.5x - 1.0x |
|---|---|
| Working distance | 0.5x: 80.0mm, 1.0x: 81.8mm |
| Distortion | 0.5x: 0.1%, 1.0x: 0.1% (TV) |
| Aperture (max) | Telecentric |
| Back focus | 14.7mm in air |
| Focus control | Manual |
| Image circle | 23 mm |
| Image size | 13.8x18.4mm |
| Image size dimensions | 18.4 mm x 13.8 mm |
| Iris control | Manual |
| Shooting magnification | 0.5 - 1.0× |
Sensor and imaging
| Max. sensor format | 4/3" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 82 x 119.6 |
| Front diameter | 104 mm |
| Overall length (two positions drawn) | 119.6 mm (WD 81.821) / 151.5 mm (WD 80.058) |
| Rear effective diameter | 11.7 mm |
| Weight (g) | 1000 |
LS-TCL-0001

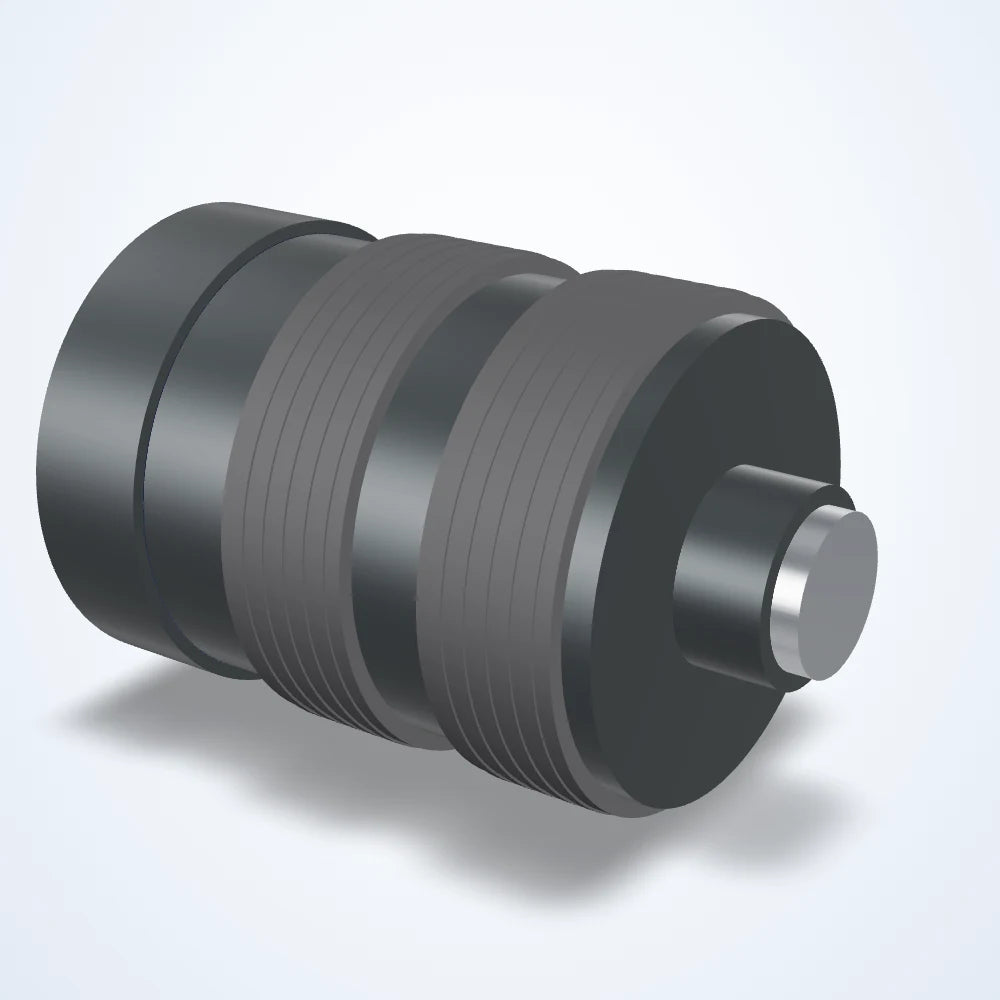

See this component from every angle.

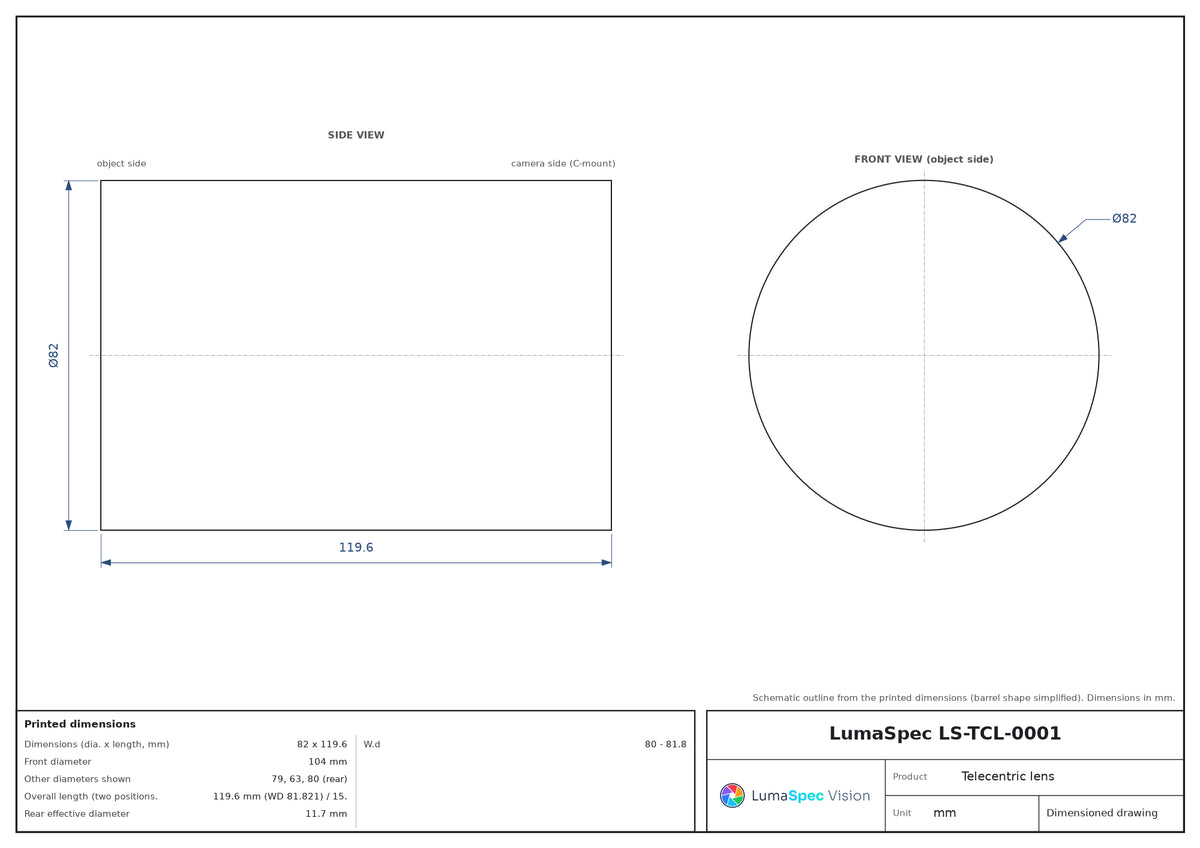

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 0.5x - 1.0x
- Max. sensor format
- 4/3"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Telecentric lens series, C-mount (S01) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0002 | 2.0x / 2.2x / 1.725x | $1,089.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0003 | 1.3x / 1.47x / 1.15x | $1,089.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0004 | 0.8x / 0.88x / 0.69x | $1,089.00 Quote | Lead time confirmed with your quote | View |
