Telecentric lenses

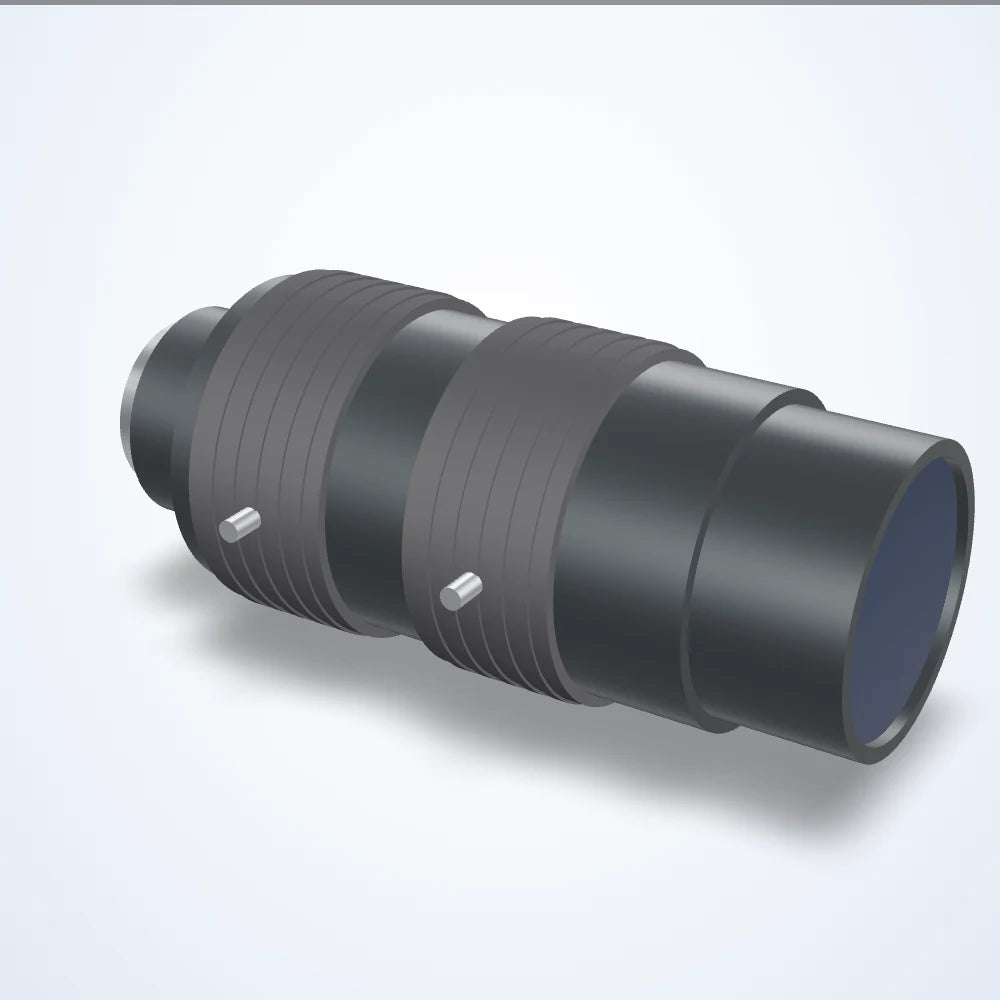

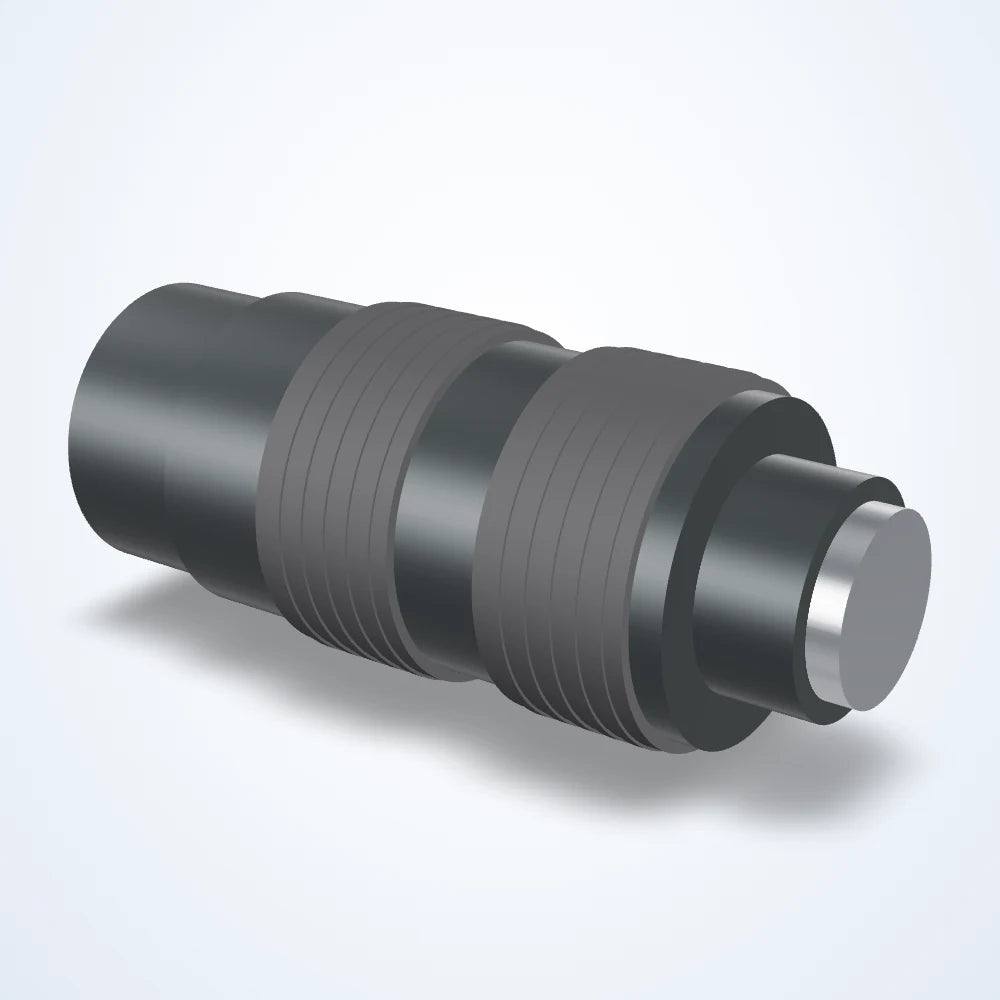

1.15 - 1.47× telecentric lens, 2/3", C-mount (LS-TCL-0003)
Model LS-TCL-0003
- Magnification1.3x / 1.47x / 1.15x
- MountC-mount
- Sensor2/3"
- Working distance111.6mm
- ApertureTelecentric
- Resolution120
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 111.6mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0003 |
|---|---|
| Element | 7 groups 10 elements |
| Exit pupil | -42.9mm / -48.5mm / -36.3mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 32.3mm / Rear 8.8mm |
| Lens type | Telecentric |
| N.a. (object) | 0.060 / 0.077 / 0.047 |
| Objective n.a. | 0.101 - 0.101 - 0.101 |
| Shooting range (1.3x) | V 5.0mm, H 6.6mm, D 8.3mm |
| Shooting range @ 1/1.8″ | 6.3×4.7 - 5.5×4.1 - 4.9×3.7 |
| Shooting range @ 1/2″ | 5.6×4.2 - 4.9×3.7 - 4.3×3.3 |
| Shooting range @ 2/3″ | 7.6×5.7 - 6.6×5.0 - 6.0×4.5 |
| Spectrum | Visible |
| Type | 1.3x (1.47x-1.15x) varifocal telecentric |
| W.d(mm) | 111.6 - 111.6 - 111.6 |
Optics
| Magnification | 1.3x / 1.47x / 1.15x |
|---|---|
| Working distance | 111.6mm |
| Distortion | 1.3x: -0.001%, 1.47x: 0.011%, 1.15x: -0.015% (TV) |
| Aperture (max) | Telecentric |
| Back focal length | 14.7 mm in air |
| Focus control | Manual |
| Image circle | 11 mm |
| Image size | 6.6x8.8mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Shooting magnification | 1.15 - 1.47× |
| Telecentricity | 99% |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 50 x 114 |
| Front diameter | 32.3 mm |
| Overall length (two positions drawn) | 123.9 mm (1.47x) / 114 mm (1.15x) |
| Weight (g) | 330 |

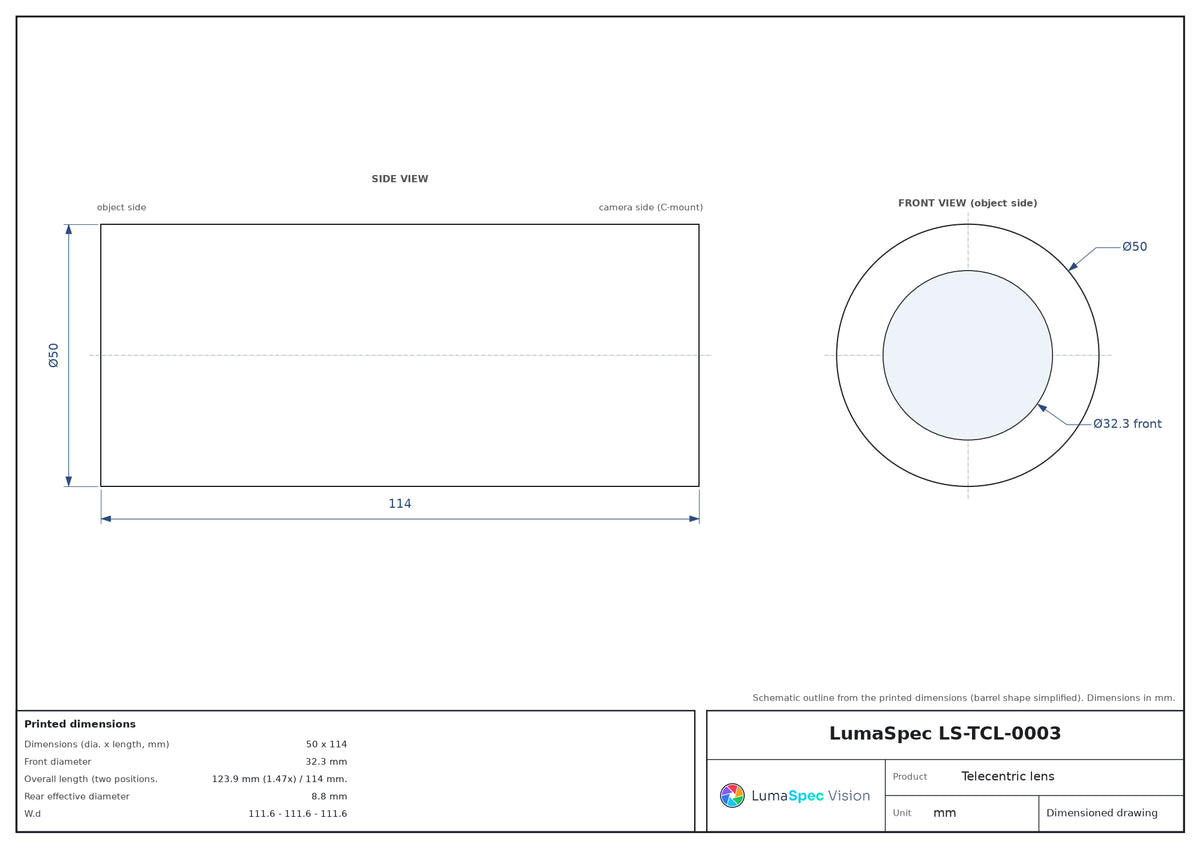

LS-TCL-0003
See this component from every angle.
Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 1.3x / 1.47x / 1.15x
- Max. sensor format
- 2/3"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Telecentric lens series, C-mount (S01) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0002 | 2.0x / 2.2x / 1.725x | $1,089.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0004 | 0.8x / 0.88x / 0.69x | $1,089.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0001 | 0.5x - 1.0x | $1,919.00 Quote | Lead time confirmed with your quote | View |
