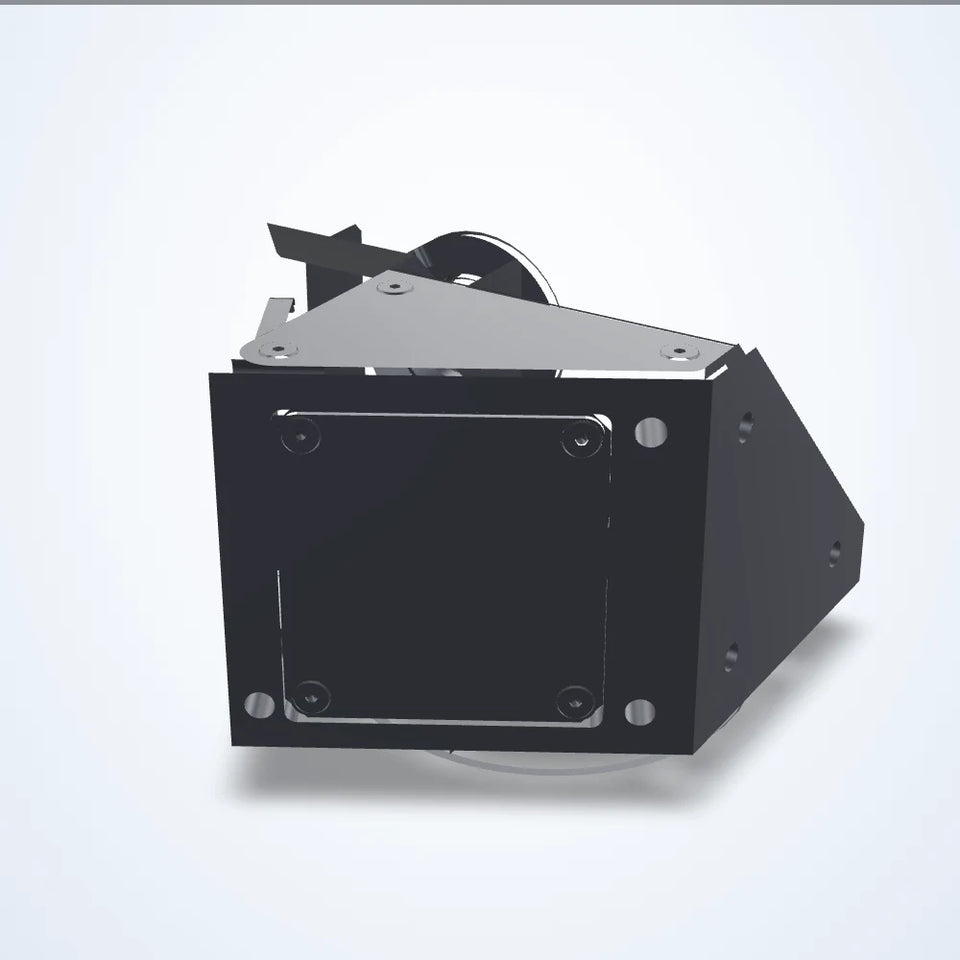

Telecentric lens series, C-mount (S22)

Telecentric lenses

Telecentric lens series, C-mount (S22)

  • 12 models
  • from $2,659.00
  • Series LS-TCL-S22

The Telecentric lens series, C-mount (S22) is a range of 12 telecentric lenses from LumaSpec Vision, from $2,659.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 12 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.052×, 0.068×, 0.072×, 0.08×, 0.093×, 0.1×, 0.11×, 0.114×, 0.134×, 0.138×, 0.157×, 0.184×
Mount
C-mount
Image circle
Up to 8 mm, 8-11 mm
Type
Object-side telecentric
Magnification
Under 0.1x, 0.1-0.3x
Working distance
110-200 mm, 200 mm +
Sensor format
1/2", 2/3"

All 12 models in the Telecentric lens series, C-mount (S22)

Link
LS-TCL-03590.134×38 μm1/2"132.9 mm$2,659.00quoteView
LS-TCL-03710.184×28 μm2/3"132.9 mm$2,659.00quoteView
LS-TCL-03600.114×45 μm1/2"157.8 mm$3,159.00quoteView
LS-TCL-03720.157×32 μm2/3"157.8 mm$3,159.00quoteView
LS-TCL-03610.1×51 μm1/2"181.8 mm$3,469.00quoteView
LS-TCL-03730.138×37 μm2/3"181.8 mm$3,469.00quoteView
LS-TCL-03620.08×63 μm1/2"226.7 mm$4,649.00quoteView
LS-TCL-03740.11×46 μm2/3"226.7 mm$4,649.00quoteView
LS-TCL-03630.068×75 μm1/2"278.6 mm$5,519.00quoteView
LS-TCL-03750.093×55 μm2/3"278.6 mm$5,519.00quoteView
LS-TCL-03640.052×98 μm1/2"334.5 mm$7,099.00quoteView
LS-TCL-03760.072×70 μm2/3"334.5 mm$7,099.00quoteView
