Telecentric lenses
0.1× telecentric lens, 1/2", C-mount (LS-TCL-0361)
Model LS-TCL-0361
- Magnification0.1×
- MountC-mount
- Sensor1/2"
- Working distance181.8 mm
- Resolution51 μm
$3,469.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.8 mm; depth of field 41.4 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0361 |
|---|---|
| FOV @ 1/1.8″ | 71.30 x 53.30 mm |
| Fov @ 1/2.0″ | 64.00 x 48.00 mm |
| Fov @ 1/2.5″ | 57.00 x 42.80 mm |
| FOV @ 1/2″ | 64.00 x 48.00 mm |
| Fov @ 1/3.0″ | 48.00 x 36.00 mm |
| FOV @ 2/3″ | 69 mm ø |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.1× |
|---|---|
| Working distance | 181.8 mm |
| Depth of field | 41.4 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Image circle | 8.4 mm |
| Image size dimensions | 6.9 x 6.9 mm |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
Sensor and imaging
| Sensor format | 1/2" |
|---|---|
| Resolution (pixel size) | 51 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

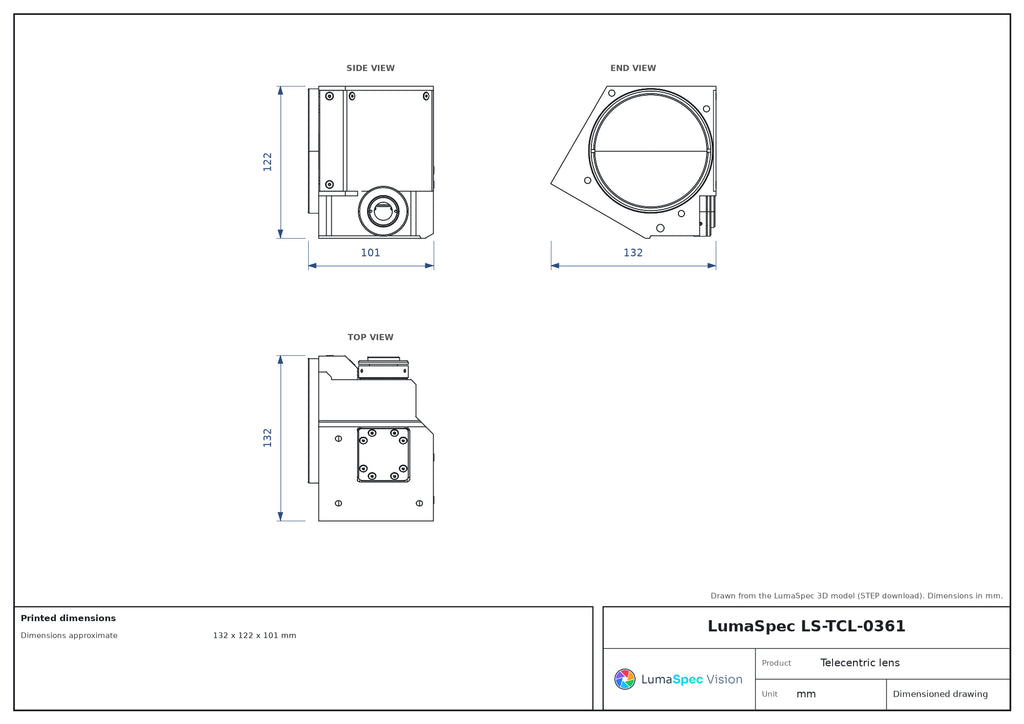

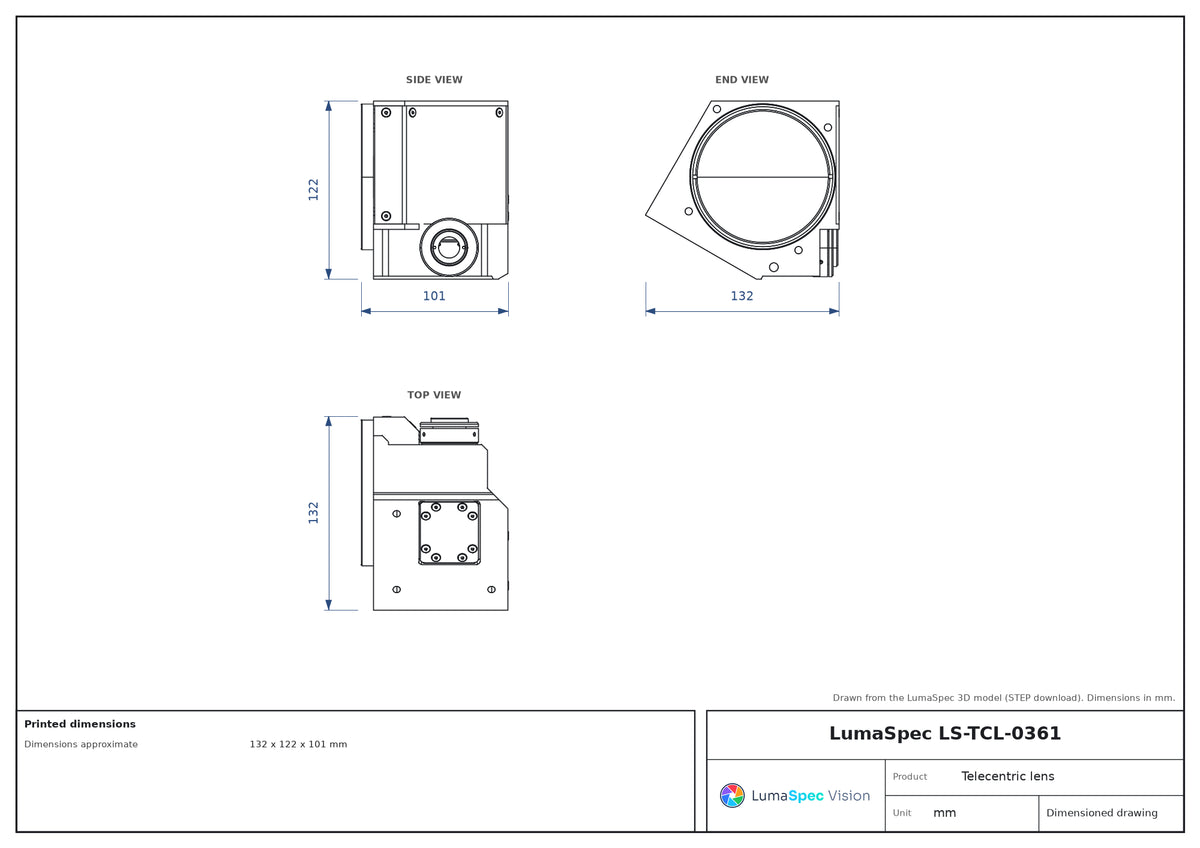

| Dimensions approximate | 132 x 122 x 101 mm |
| Weight | 1917 Grams |
