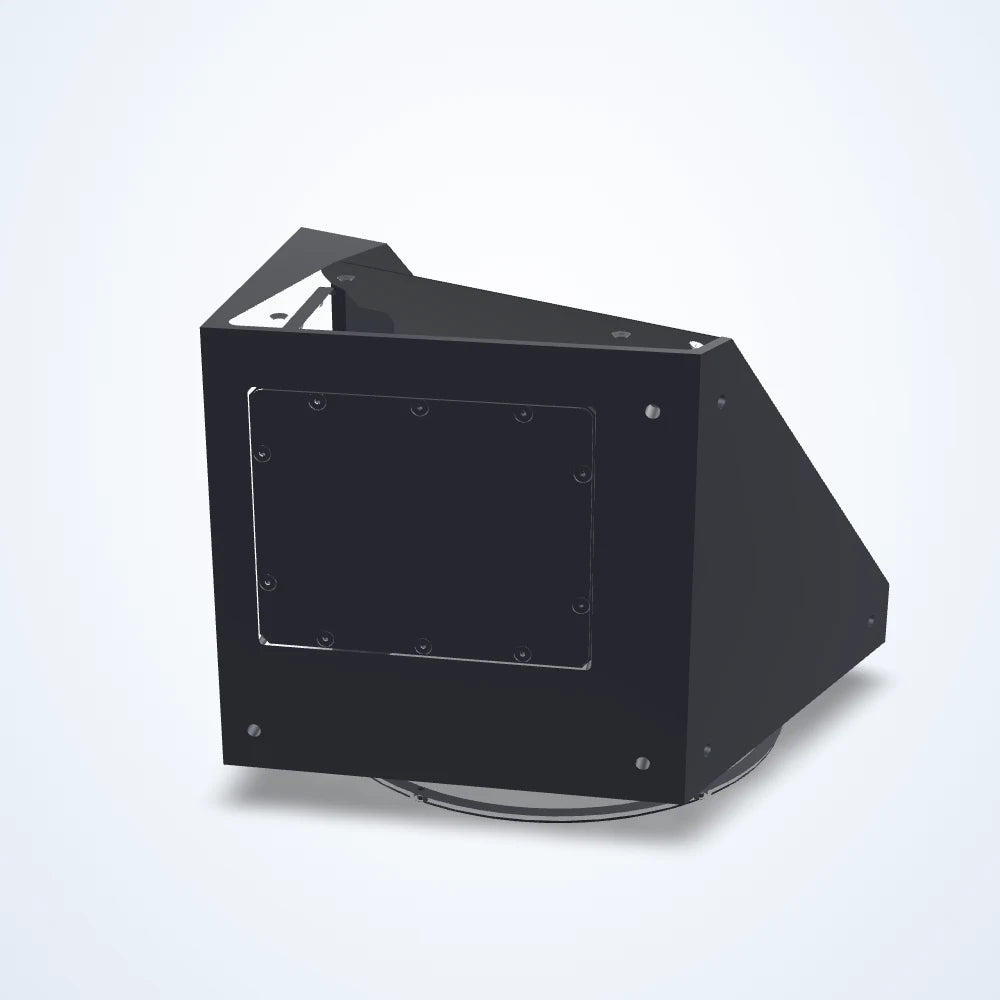

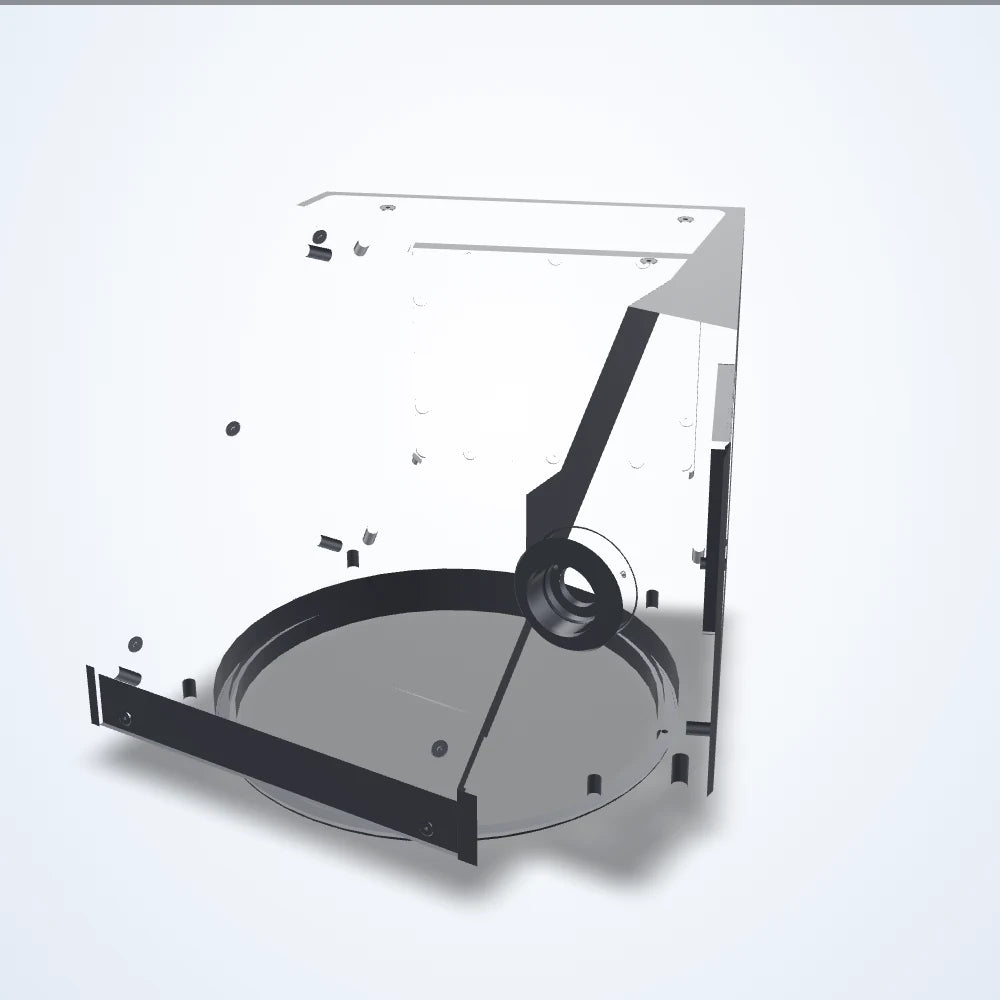

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.052× telecentric lens, 1/2", C-mount (LS-TCL-0364)
Model LS-TCL-0364
- Magnification0.052×
- MountC-mount
- Sensor1/2"
- Working distance334.5 mm
- Resolution98 μm
$7,099.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 334.5 mm; depth of field 153.1 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0364 |
|---|---|
| FOV @ 1/1.8″ | 137.12 x 102.50 mm |
| Fov @ 1/2.0″ | 123.08 x 92.31 mm |
| Fov @ 1/2.5″ | 109.62 x 82.31 mm |
| FOV @ 1/2″ | 123.08 x 92.31 mm |
| Fov @ 1/3.0″ | 92.31 x 69.23 mm |
| FOV @ 2/3″ | 128.8 mm ø |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.052× |
|---|---|
| Working distance | 334.5 mm |
| Depth of field | 153.1 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 8.3 mm |
| Image size dimensions | 6.8 x 6.8 mm |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.06° |
Sensor and imaging
| Sensor format | 1/2" |
|---|---|
| Resolution (pixel size) | 98 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

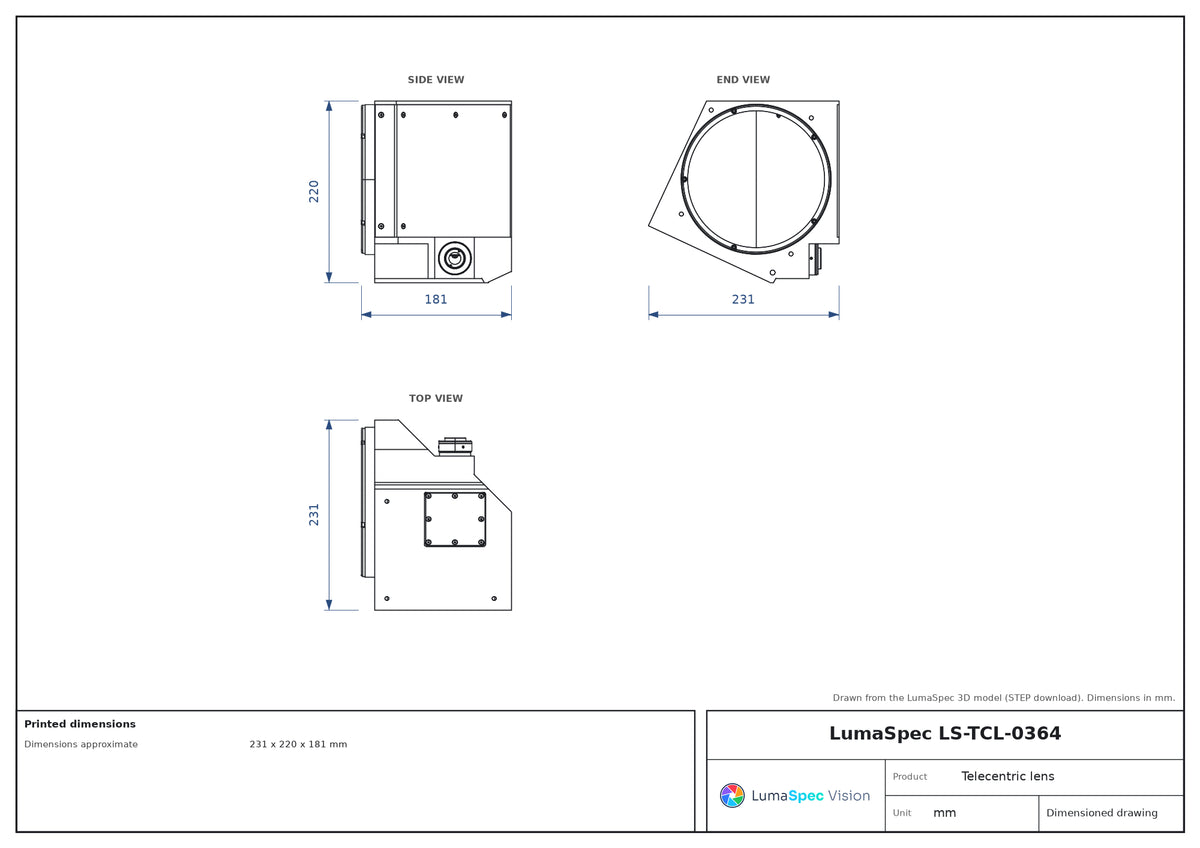

| Dimensions approximate | 231 x 220 x 181 mm |
| Weight | 9094 Grams |
