Telecentric lenses

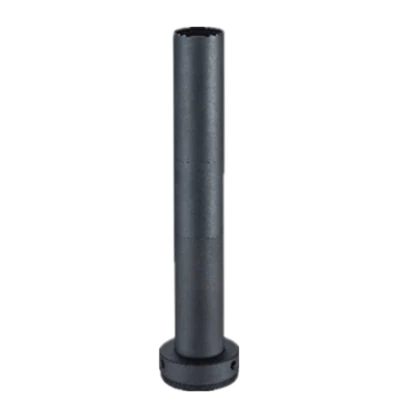

LS-TCL-S36 Series Object-Side Telecentric lenses
- 40 models
- from $589.00
- Series LS-TCL-S36
The LS-TCL-S36 Series Object-Side Telecentric lenses is a range of 40 telecentric lenses from LumaSpec Vision, from $589.00. It comes in 30 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.09x, 660 mm WD, 1/1.7", 0.12x, 250 mm WD, 1/2", 0.3x, 110 mm WD, 1/1.8", 0.4x, 113 mm WD, 1/2.5", 0.5x, 110 mm WD, 1/2", 0.5x, 190 mm WD, 1/2", 0.5x, 225 mm WD, 1/2.5", 0.5x, 350 mm WD, 1/2", 0.5x, 510 mm WD, 1/1.8", 0.5x, 65 mm WD, 1/2", 0.6x, 65 mm WD, 1/2", 0.7x, 70 mm WD, 1/1.8", 0.8x, 110 mm WD, 1/2", 0.8x, 130 mm WD, 1/2", 0.8x, 150 mm WD, 1/2", 0.8x, 65 mm WD, 1/2" and 14 more
- Image circle
- Up to 8 mm, 8-11 mm
- Type
- Object-side telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
- Working distance
- Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
- Mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56"
Features
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/1.8"
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2.5"
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/1.7"
All 40 models in the LS-TCL-S36 Series Object-Side Telecentric lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-0501 | 3x, 110 mm WD, 1/2" | 3 | 110 mm | F9 | $589.00 | View |
| LS-TCL-0503 | 3x, 110 mm WD, 1/2" | 3 | 110 mm | F9 | $589.00 | View |
| LS-TCL-0504 | 4x, 110 mm WD, 1/2" | 4 | 110 mm | F36.3 | $589.00 | View |
| LS-TCL-0505 | 4x, 110 mm WD, 1/2" | 4 | 110 mm | F36.3 | $589.00 | View |
| LS-TCL-0515 | 6x, 45 mm WD, 1/2" | 6 | 45 mm | F8 | $589.00 | View |
| LS-TCL-0507 | 4x, 200 mm WD, 1/2" | 4 | 200 mm | F64.6 | $589.00 | View |
| LS-TCL-0500 | 2x, 250 mm WD, 1/3" | 2 | 250 mm | F40 | $609.00 | View |
| LS-TCL-0497 | 2x, 110 mm WD, 1/2" | 2 | 110 mm | F23.7 | $609.00 | View |
| LS-TCL-0498 | 2x, 110 mm WD, 1/2" | 2 | 110 mm | F23.7 | $609.00 | View |
| LS-TCL-0499 | 2x, 150 mm WD, 1/2" | 2 | 150 mm | F32.4 | $619.00 | View |
| LS-TCL-0528 | 1.5x, 110 mm WD, 1/2" | 1.5 | 110 mm | F13.2 | $629.00 | View |
| LS-TCL-0529 | 1.5x, 110 mm WD, 1/2" | 1.5 | 110 mm | F13.2 | $629.00 | View |
| LS-TCL-0496 | 2x, 65 mm WD, 1/2" | 2 | 65 mm | F13.7 | $629.00 | View |
| LS-TCL-0526 | 1.5x, 65 mm WD, 1/2" | 1.5 | 65 mm | F17.3 | $649.00 | View |
| LS-TCL-0527 | 1.5x, 65 mm WD, 1/2" | 1.5 | 65 mm | F17.3 | $649.00 | View |
| LS-TCL-0495 | 1x, 180 mm WD, 1/2" | 1 | 180 mm | F13.0 | $689.00 | View |
| LS-TCL-0492 | 1x, 113 mm WD, 1/2" | 1 | 113 mm | F13.7 | $689.00 | View |
| LS-TCL-0494 | 1x, 150 mm WD, 1/2" | 1 | 150 mm | F23.5 | $689.00 | View |
| LS-TCL-0493 | 1x, 113 mm WD, 1/2" | 1 | 113 mm | F13.7 | $689.00 | View |
| LS-TCL-0490 | 1x, 65 mm WD, 1/2" | 1 | 65 mm | F12.1 | $709.00 | View |
| LS-TCL-0491 | 1x, 65 mm WD, 1/2" | 1 | 65 mm | F12.1 | $709.00 | View |
| LS-TCL-0523 | 0.8x, 150 mm WD, 1/2" | 0.8 | 150 mm | F27 | $729.00 | View |
| LS-TCL-0522 | 0.8x, 150 mm WD, 1/2" | 0.8 | 150 mm | F13.6 | $729.00 | View |
| LS-TCL-0520 | 0.8x, 130 mm WD, 1/2" | 0.8 | 130 mm | F15.2 | $739.00 | View |
| LS-TCL-0521 | 0.8x, 130 mm WD, 1/2" | 0.8 | 130 mm | F15.2 | $739.00 | View |
| LS-TCL-0518 | 0.8x, 65 mm WD, 1/2" | 0.8 | 65 mm | F11.9 | $739.00 | View |
| LS-TCL-0519 | 0.8x, 110 mm WD, 1/2" | 0.8 | 110 mm | F11.9 | $789.00 | View |
| LS-TCL-0516 | 0.6x, 65 mm WD, 1/2" | 0.6 | 65 mm | F8 | $809.00 | View |
| LS-TCL-0517 | 0.7x, 70 mm WD, 1/1.8" | 0.7 | 70 mm | F22.1 | $819.00 | View |
| LS-TCL-0511 | 0.5x, 190 mm WD, 1/2" | 0.5 | 190 mm | F16.3 | $829.00 | View |
| LS-TCL-0514 | 0.5x, 510 mm WD, 1/1.8" | 0.5 | 510 mm | F14.2 | $829.00 | View |
| LS-TCL-0513 | 0.5x, 350 mm WD, 1/2" | 0.5 | 350 mm | F17.6 | $829.00 | View |
| LS-TCL-0508 | 0.5x, 65 mm WD, 1/2" | 0.5 | 65 mm | F6.5 | $929.00 | View |
| LS-TCL-0510 | 0.5x, 110 mm WD, 1/2" | 0.5 | 110 mm | F11 | $929.00 | View |
| LS-TCL-0509 | 0.5x, 110 mm WD, 1/2" | 0.5 | 110 mm | F11 | $929.00 | View |
| LS-TCL-0502 | 0.3x, 110 mm WD, 1/1.8" | 0.3 | 110 mm | F13.4 | $969.00 | View |
| LS-TCL-0512 | 0.5x, 225 mm WD, 1/2.5" | 0.5 | 225 mm | F9 | $999.00 | View |
| LS-TCL-0506 | 0.4x, 113 mm WD, 1/2.5" | 0.4 | 113 mm | F13.4 | $1,039.00 | View |
| LS-TCL-0525 | 0.12x, 250 mm WD, 1/2" | 0.12 | 250 mm | F12.2 | $2,269.00 | View |
| LS-TCL-0524 | 0.09x, 660 mm WD, 1/1.7" | 0.09 | 660 mm | F8 | $5,699.00quote | View |
