Telecentric lenses

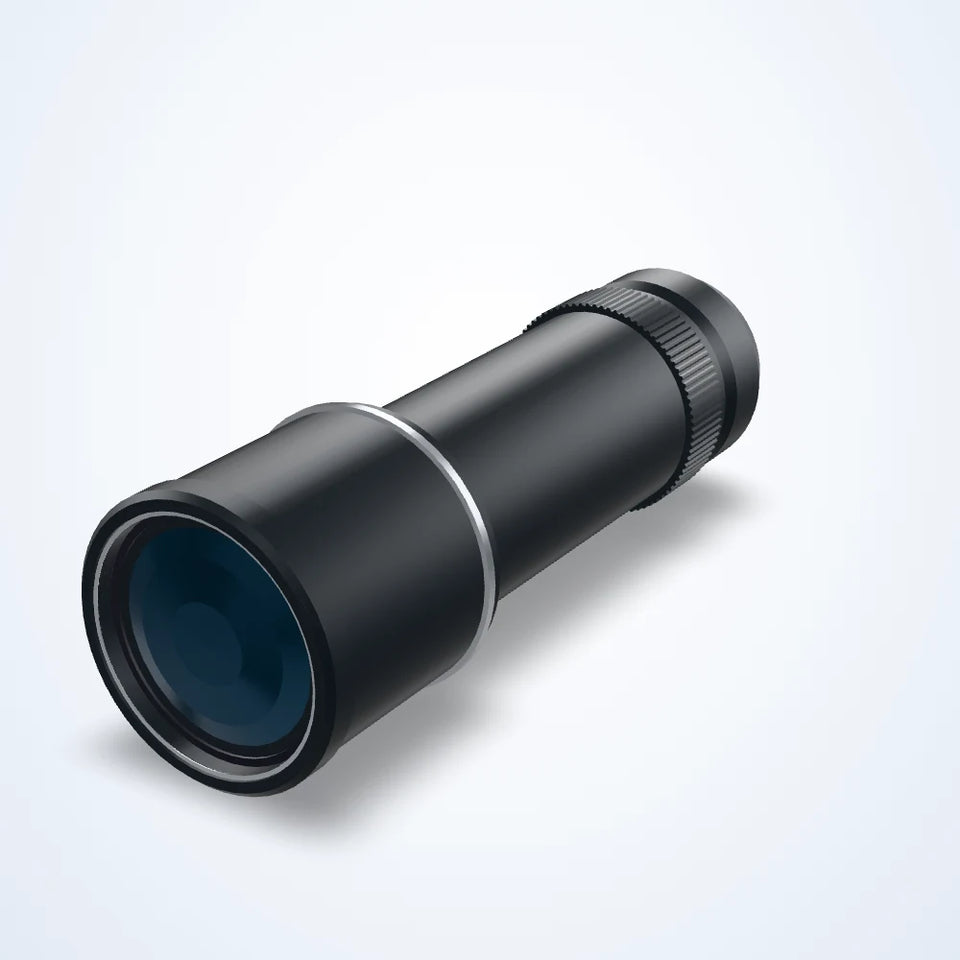

Bi-telecentric lenses, 1/2.5" (LS-TCL-S51)
- 16 models
- from $645.00
- Series LS-TCL-S51
The Bi-telecentric lenses, 1/2.5" (LS-TCL-S51) is a range of 16 telecentric lenses from LumaSpec Vision, from $645.00. It comes in 16 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.024x, WD 465 mm, 1/2.5", C-mount, 0.038x, WD 330 mm, 1/2.5", C-mount, 0.042x, WD 318 mm, 1/2.5", C-mount, 0.048x, WD 300 mm, 1/2.5", C-mount, 0.06x, WD 273 mm, 1/2.5", C-mount, 0.066x, WD 263 mm, 1/2.5", C-mount, 0.072x, 1/2.5", C-mount, 0.08x, WD 208 mm, 1/2.5", C-mount, 0.1x, WD 178 mm, 1/2.5", C-mount, 0.113x, WD 158 mm, 1/2.5", C-mount, 0.129x, WD 138 mm, 1/2.5", C-mount, 0.14x, WD 180 mm, 1/2.5", C-mount, 0.15x, WD 128 mm, 1/2.5", 0.15x, WD 138 mm, 1/2.5", C-mount, 0.2x, WD 110 mm, 1/2.5", C-mount, 0.277x, WD 73 mm, 1/2.5", C-mount
- Mount
- C-mount
- Image circle
- Up to 8 mm
- Type
- Bi-telecentric, Object-side telecentric
- Magnification
- Under 0.1x, 0.1-0.3x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1/2.5" and smaller
- Resolution
- 6-10 MP
Features
- Constant magnification over the depth of field: size readings do not change with distance
- Low distortion for measurement
All 16 models in the Bi-telecentric lenses, 1/2.5" (LS-TCL-S51)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-1186 | 0.2x, WD 110 mm, 1/2.5", C-mount | 1/2.5" | 0.2x | 110±2 mm | $645.00 | View |
| LS-TCL-1187 | 0.277x, WD 73 mm, 1/2.5", C-mount | 1/2.5" | 0.277x | 73±1 mm | $645.00 | View |
| LS-TCL-1185 | 0.15x, WD 138 mm, 1/2.5", C-mount | 1/2.5" | 0.15x | 138±3 mm | $665.00 | View |
| LS-TCL-1181 | 0.129x, WD 138 mm, 1/2.5", C-mount | 1/2.5" | 0.129x | 138±3 mm | $685.00 | View |
| LS-TCL-1180 | 0.113x, WD 158 mm, 1/2.5", C-mount | 1/2.5" | 0.113x | 158±3 mm | $700.00 | View |
| LS-TCL-1183 | 0.15x, WD 128 mm, 1/2.5" | 7.2(1/2.5") | 0.15x | 128±3 mm | $725.00 | View |
| LS-TCL-1182 | 0.14x, WD 180 mm, 1/2.5", C-mount | 7.2(1/2.5") | 0.14x | 180±2 mm | $770.00 | View |
| LS-TCL-1179 | 0.1x, WD 178 mm, 1/2.5", C-mount | 1/2.5" | 0.1x | 178±3 mm | $1,070.00 | View |
| LS-TCL-1178 | 0.08x, WD 208 mm, 1/2.5", C-mount | 1/2.5" | 0.08x | 208±3 mm | $1,240.00 | View |
| LS-TCL-1177 | 0.072x, 1/2.5", C-mount | 1/2.5" | 0.072x | $1,520.00 | View | |
| LS-TCL-1175 | 0.06x, WD 273 mm, 1/2.5", C-mount | 1/2.5" | 0.06x | 273±5 mm | $1,585.00 | View |
| LS-TCL-1176 | 0.066x, WD 263 mm, 1/2.5", C-mount | 1/2.5" | 0.066x | 263±4 mm | $1,660.00 | View |
| LS-TCL-1174 | 0.048x, WD 300 mm, 1/2.5", C-mount | 1/2.5" | 0.048x | 300±5 mm | $2,195.00 | View |
| LS-TCL-1173 | 0.042x, WD 318 mm, 1/2.5", C-mount | 1/2.5" | 0.042x | 318±5 mm | $3,425.00 | View |
| LS-TCL-1172 | 0.038x, WD 330 mm, 1/2.5", C-mount | 1/2.5" | 0.038x | 330±5 mm | $3,850.00 | View |
| LS-TCL-1171 | 0.024x, WD 465 mm, 1/2.5", C-mount | 1/2.5" | 0.024x | 465±6 mm | $8,345.00 | View |
