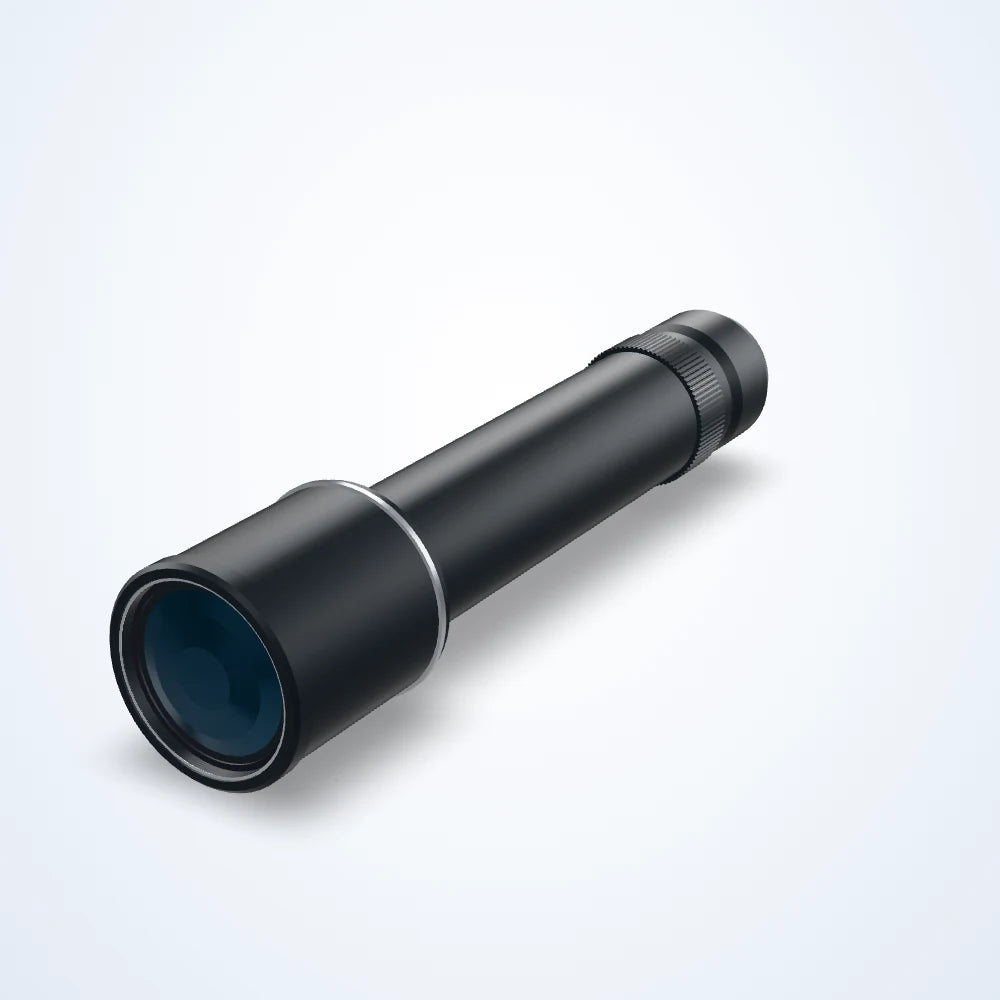

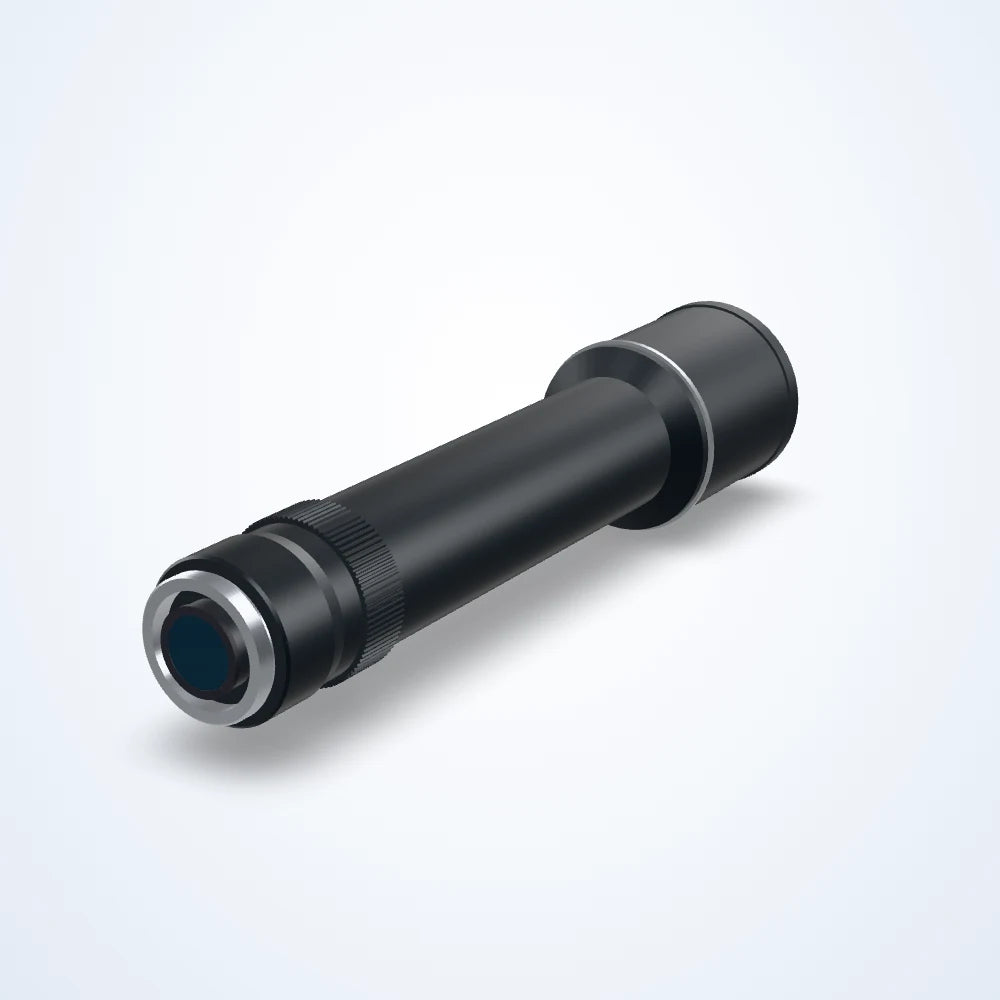

Telecentric lens (series view)
  • Telecentric lens (series view)
  • Telecentric lens (series view)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.14x telecentric lens, WD 180 mm, 1/2.5", C-mount (LS-TCL-1182)

Model LS-TCL-1182

  • Magnification0.14x
  • MountC-mount
  • Sensor1/2.5"
  • Working distance180±2 mm
  • ApertureF8
  • Resolution10 MP
$770.00

Ships in 3-4 weeks

2.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.14x telecentric lens, WD 180 mm, 1/2.5", C-mount (LS-TCL-1182)LS-TCL-1182

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.14x telecentric lens for non-contact measurement and gauging. Magnification 0.14x; working distance 180 mm; covers sensors up to 1/2.5"; resolves 10 MP; C-mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1182

Optics

Magnification0.14x
Working distance180±2 mm
Distortion<0.1
Field of view2/3" ICX625/655(8.47*7.1) 40.7x30.6
ApertureF8
MTF>100lp/mm
Depth of field±13 mm@F16
Telecentricity<0.1°

Sensor and imaging

Resolution10 MP
Sensor format7.2(1/2.5")

Environment and compliance

Operating temperature-10 - 50°C(Operating), -20 - 60°C(Storage)

Mechanical

MountC Mount
Length132.8 mm
Shipping weight2.00 kg

Other models in the Telecentric lenses, 1/2.5" (LS-TCL-S51) series

See all 16 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-1186 0.2x, WD 110 mm, 1/2.5", C-mount $645.00 Ships in 3-4 weeks View
LS-TCL-1187 0.277x, WD 73 mm, 1/2.5", C-mount $645.00 Ships in 3-4 weeks View
LS-TCL-1185 0.15x, WD 138 mm, 1/2.5", C-mount $665.00 Ships in 3-4 weeks View
LS-TCL-1181 0.129x, WD 138 mm, 1/2.5", C-mount $685.00 Ships in 3-4 weeks View
LS-TCL-1180 0.113x, WD 158 mm, 1/2.5", C-mount $700.00 Ships in 3-4 weeks View
LS-TCL-1183 0.15x, WD 128 mm, 1/2.5" $725.00 Ships in 3-4 weeks View
LS-TCL-1179 0.1x, WD 178 mm, 1/2.5", C-mount $1,070.00 Ships in 3-4 weeks View
LS-TCL-1178 0.08x, WD 208 mm, 1/2.5", C-mount $1,240.00 Ships in 3-4 weeks View
LS-TCL-1177 0.072x, 1/2.5", C-mount $1,520.00 Ships in 3-4 weeks View
LS-TCL-1175 0.06x, WD 273 mm, 1/2.5", C-mount $1,585.00 Ships in 3-4 weeks View
LS-TCL-1176 0.066x, WD 263 mm, 1/2.5", C-mount $1,660.00 Ships in 3-4 weeks View
LS-TCL-1174 0.048x, WD 300 mm, 1/2.5", C-mount $2,195.00 Ships in 3-4 weeks View
LS-TCL-1173 0.042x, WD 318 mm, 1/2.5", C-mount $3,425.00 Ships in 3-4 weeks View
LS-TCL-1172 0.038x, WD 330 mm, 1/2.5", C-mount $3,850.00 Ships in 3-4 weeks View
LS-TCL-1171 0.024x, WD 465 mm, 1/2.5", C-mount $8,345.00 Ships in 3-4 weeks View
