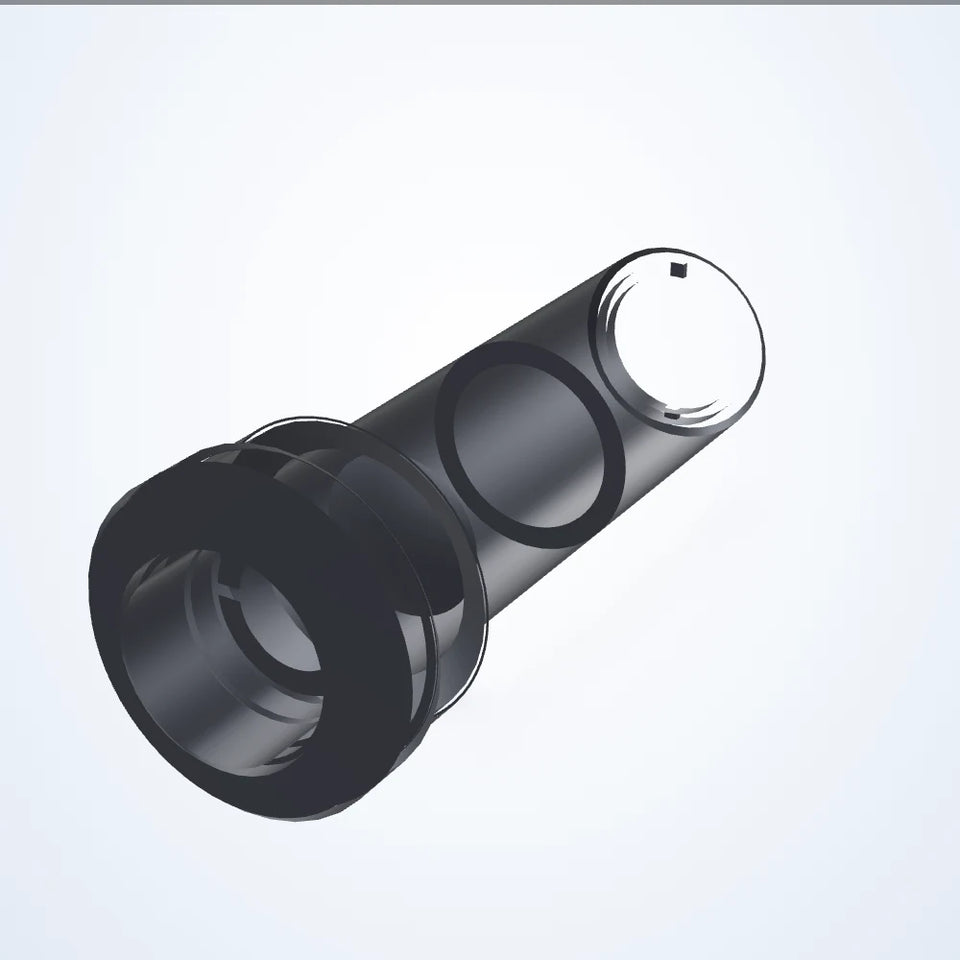

Telecentric lens series, C-mount (S11)

Telecentric lenses

Telecentric lens series, C-mount (S11)

  • 44 models
  • from $859.00
  • Series LS-TCL-S11

The Telecentric lens series, C-mount (S11) is a range of 44 telecentric lenses from LumaSpec Vision, from $859.00. It comes in 41 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 44 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.025×, 0.033×, 0.037×, 0.038×, 0.044×, 0.046×, 0.05×, 0.051×, 0.052×, 0.059×, 0.061×, 0.068×, 0.072×, 0.074×, 0.079×, 0.08× and 25 more
Mount
C-mount
Image circle
Up to 8 mm, 8-11 mm
Type
Object-side telecentric
Magnification
Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
Working distance
Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
Sensor format
1/2.5" and smaller, 1/2", 2/3"

All 44 models in the Telecentric lens series, C-mount (S11)

Link
LS-TCL-02352×3 μm2/3"56 mm$859.00quoteView
LS-TCL-02361.333×5 μm2/3"60.1 mm$859.00quoteView
LS-TCL-02371×7 μm2/3"62.2 mm$859.00quoteView
LS-TCL-02380.735×12 μm2/3"53.9 mm$959.00quoteView
LS-TCL-01360.385×13 μm1/2"43.1 mm$1,069.00quoteView
LS-TCL-01730.29×18 μm1/3"43.1 mm$1,069.00quoteView
LS-TCL-02390.528×10 μm2/3"43.1 mm$1,069.00quoteView
LS-TCL-01370.255×20 μm1/2"67.2 mm$1,129.00quoteView
LS-TCL-01740.192×26 μm1/3"67.2 mm$1,129.00quoteView
LS-TCL-02400.35×15 μm2/3"67.2 mm$1,129.00quoteView
LS-TCL-01380.177×29 μm1/2"102.5 mm$1,499.00quoteView
LS-TCL-01750.133×38 μm1/3"102.5 mm$1,499.00quoteView
LS-TCL-02410.243×21 μm2/3"102.5 mm$1,499.00quoteView
LS-TCL-01390.134×38 μm1/2"132.9 mm$1,719.00quoteView
LS-TCL-01760.098×52 μm1/3"133.4 mm$1,719.00quoteView
LS-TCL-02420.184×28 μm2/3"132.9 mm$1,719.00quoteView
LS-TCL-01400.114×45 μm1/2"157.8 mm$1,989.00quoteView
LS-TCL-01770.084×60 μm1/3"157.8 mm$1,989.00quoteView
LS-TCL-02430.157×32 μm2/3"157.8 mm$1,989.00quoteView
LS-TCL-01410.1×51 μm1/2"181.8 mm$2,219.00quoteView
LS-TCL-01780.074×69 μm1/3"181.9 mm$2,219.00quoteView
LS-TCL-02440.138×37 μm2/3"181.8 mm$2,219.00quoteView
LS-TCL-02450.122×42 μm2/3"226.7 mm$2,589.00quoteView
LS-TCL-01420.08×63 μm1/2"226.7 mm$2,979.00quoteView
LS-TCL-01790.059×86 μm1/3"225.9 mm$2,979.00quoteView
LS-TCL-02460.11×46 μm2/3"226.7 mm$2,979.00quoteView
LS-TCL-01430.068×75 μm2/3"278.6 mm$3,819.00quoteView
LS-TCL-01800.05×102 μm1/2"279.6 mm$3,819.00quoteView
LS-TCL-02470.104×49 μm2/3"279.7 mm$3,819.00quoteView
LS-TCL-02480.093×55 μm2/3"278.6 mm$3,819.00quoteView
LS-TCL-01440.052×98 μm1/2"334.5 mm$4,569.00quoteView
LS-TCL-01810.038×134 μm1/3"334.5 mm$4,569.00quoteView
LS-TCL-02490.079×64 μm2/3"334.5 mm$4,569.00quoteView
LS-TCL-02500.072×70 μm2/3"334.5 mm$4,569.00quoteView
LS-TCL-01450.044×115 μm1/2"396 mm$6,079.00quoteView
LS-TCL-01820.033×154 μm1/3"396 mm$6,079.00quoteView
LS-TCL-02510.068×75 μm2/3"396 mm$6,079.00quoteView
LS-TCL-02520.061×83 μm2/3"396 mm$6,079.00quoteView
LS-TCL-02530.051×100 μm2/3"526.9 mm$9,289.00quoteView
LS-TCL-01460.033×154 μm1/2"526.9 mm$9,899.00quoteView
LS-TCL-02540.046×110 μm2/3"526.9 mm$9,899.00quoteView
LS-TCL-01830.025×203 μm1/3"527 mm$10,269.00quoteView
LS-TCL-02550.044×115 μm2/3"492.8 mm$12,959.00quoteView
LS-TCL-02560.037×137 μm2/3"492.8 mm$13,569.00quoteView
