0.061× telecentric lens, 2/3", C-mount (LS-TCL-0252)

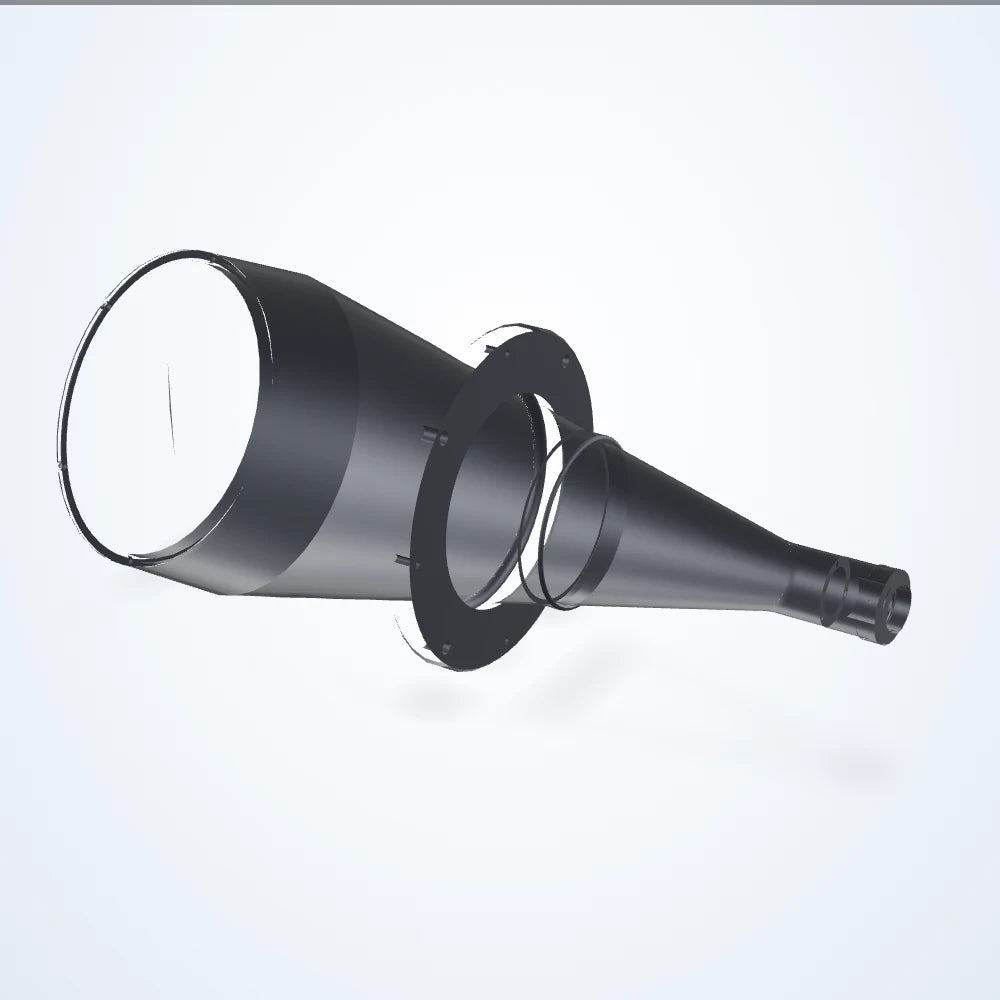

  • 0.061× telecentric lens, 2/3", C-mount (LS-TCL-0252)

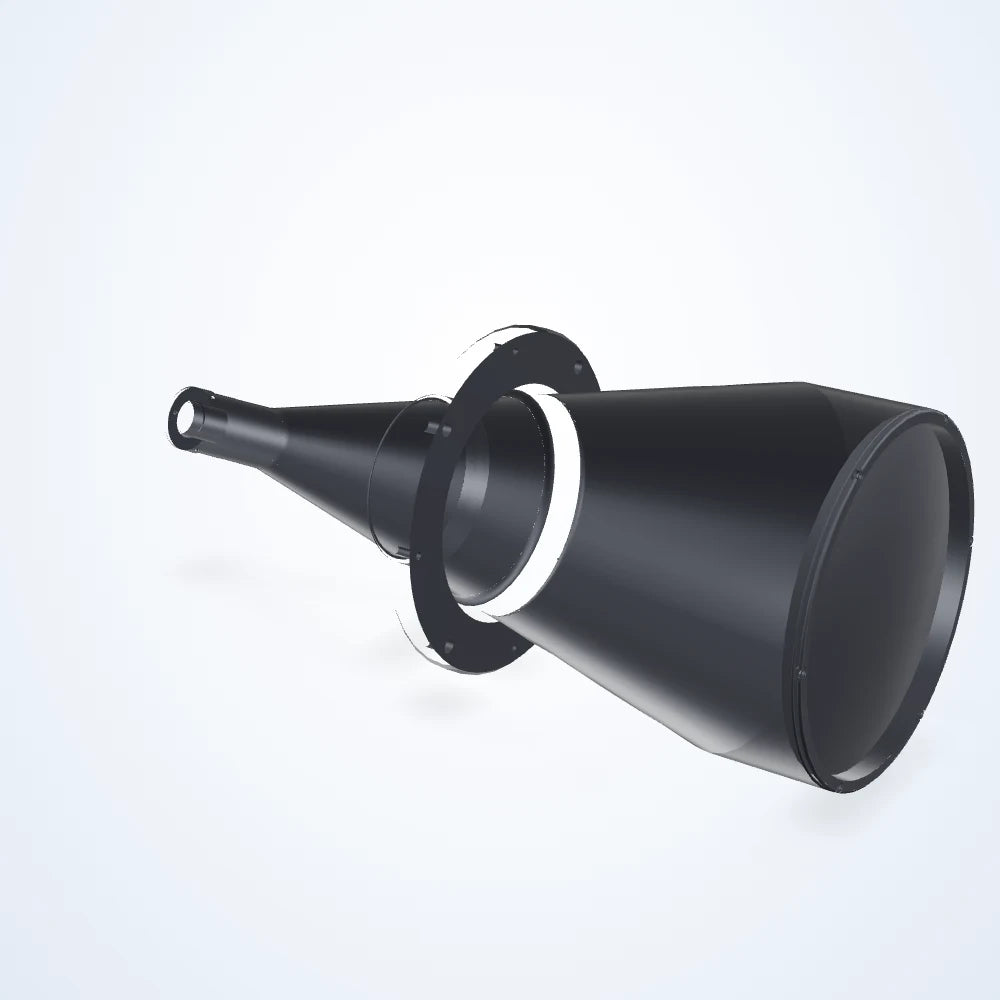

  • 0.061× telecentric lens, 2/3", C-mount (LS-TCL-0252) - view 2

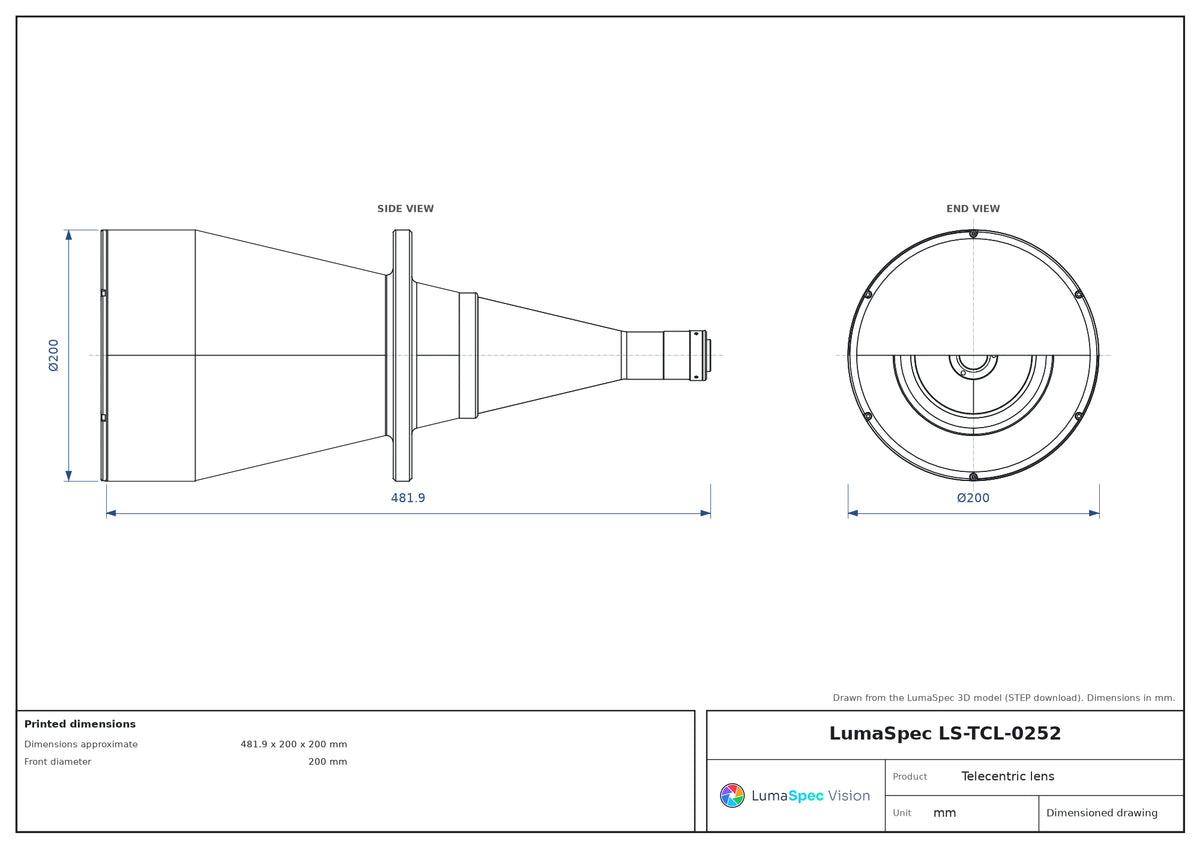

  • LS-TCL-0252 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.061× telecentric lens, 2/3", C-mount (LS-TCL-0252)

Model LS-TCL-0252

  • Magnification0.061×
  • MountC-mount
  • Sensor2/3"
  • Working distance396 mm
  • Resolution83 μm
$6,079.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 396 mm; depth of field 111.3 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0252
FOV @ 1/1.8″116.89 x 87.38 mm
Fov @ 1/2.0″104.92 x 78.69 mm
Fov @ 1/2.5″93.44 x 70.16 mm
FOV @ 1/2″104.92 x 78.69 mm
Fov @ 1/3.0″78.69 x 59.02 mm
FOV @ 2/3″139.34 x 116.23 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.061×
Working distance396 mm
Depth of field111.3 mm
Distortion maximum (%)< 0.08
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.05°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)83 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate481.9 x 200 x 200 mm
Front diameter200 mm
Weight5853 Grams
