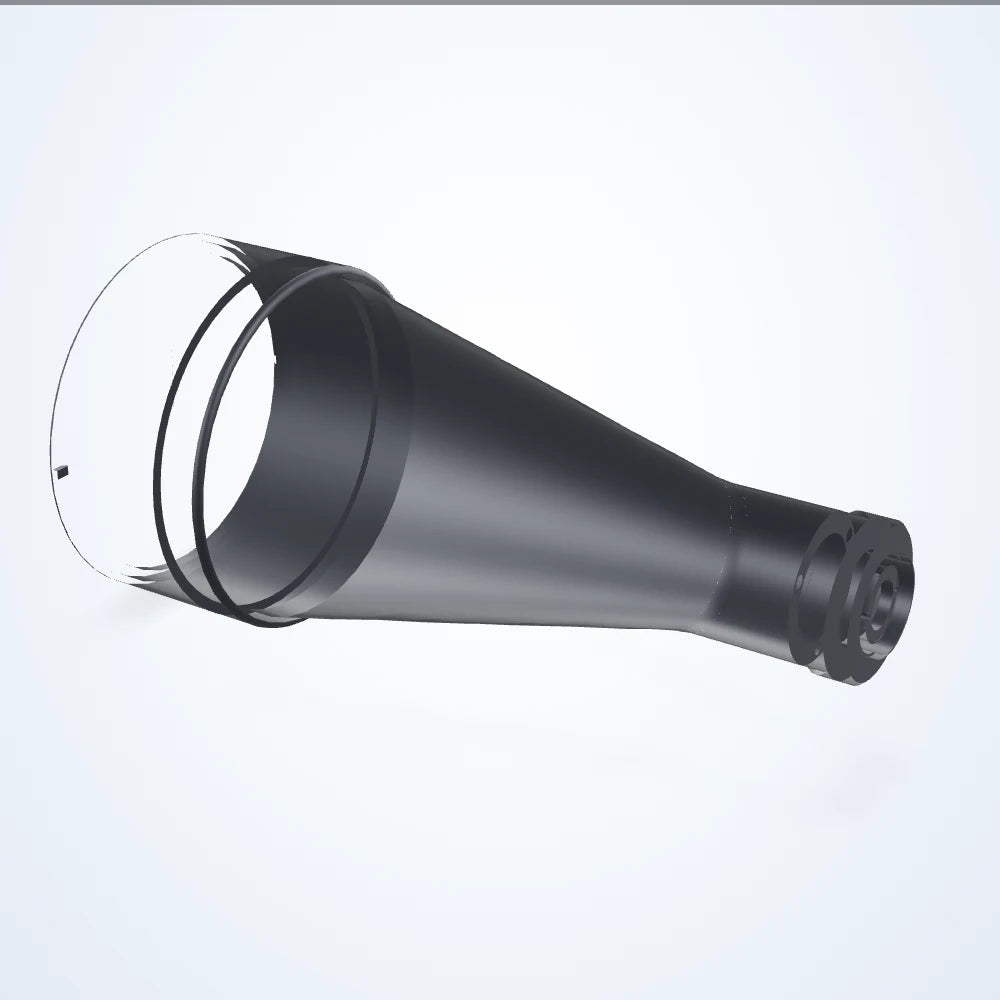

  • 0.074× telecentric lens, 1/3", C-mount (LS-TCL-0178)

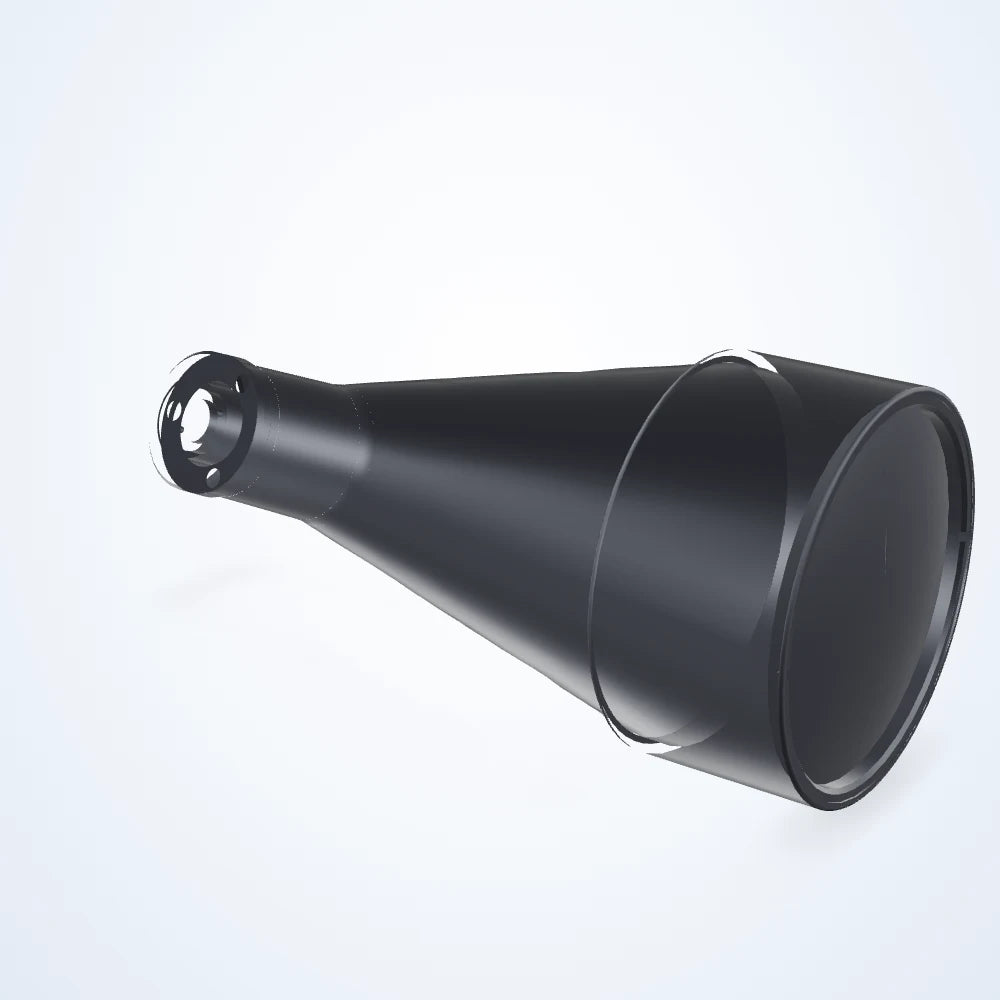

  • 0.074× telecentric lens, 1/3", C-mount (LS-TCL-0178) - view 2

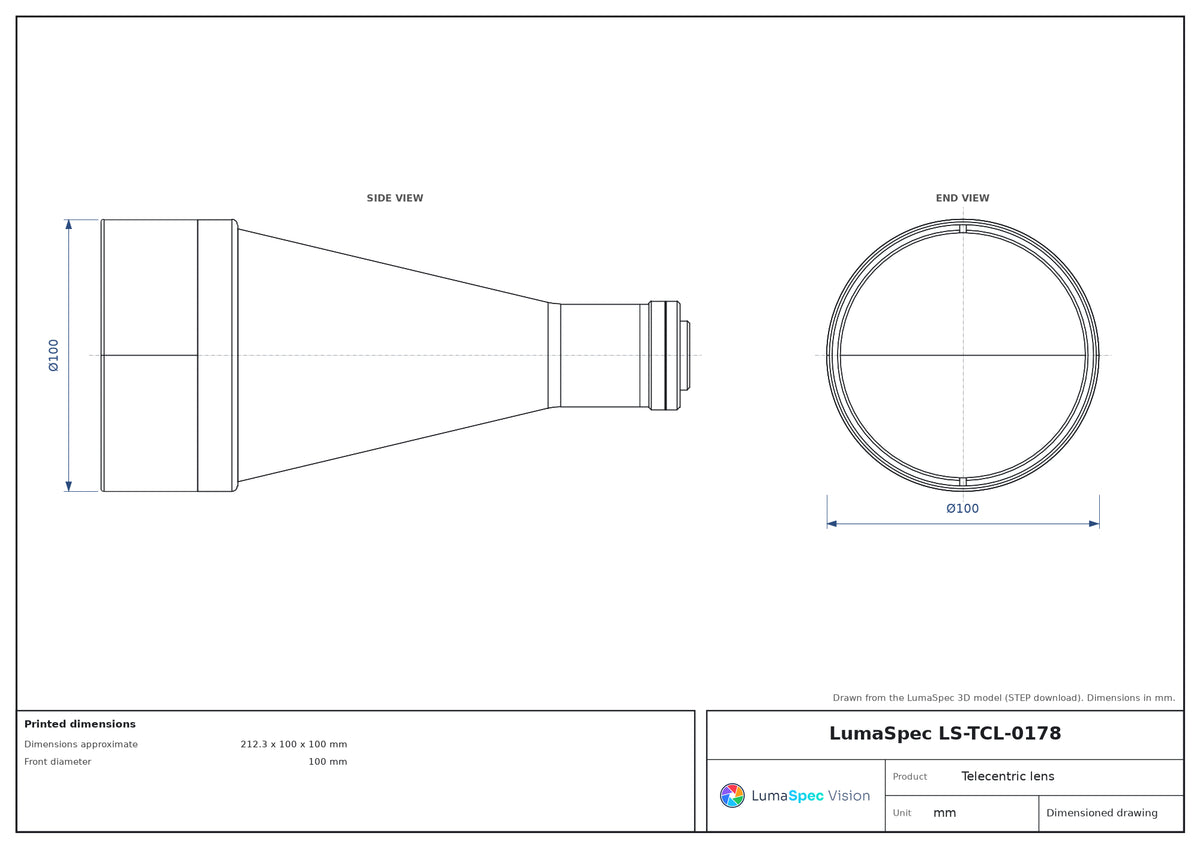

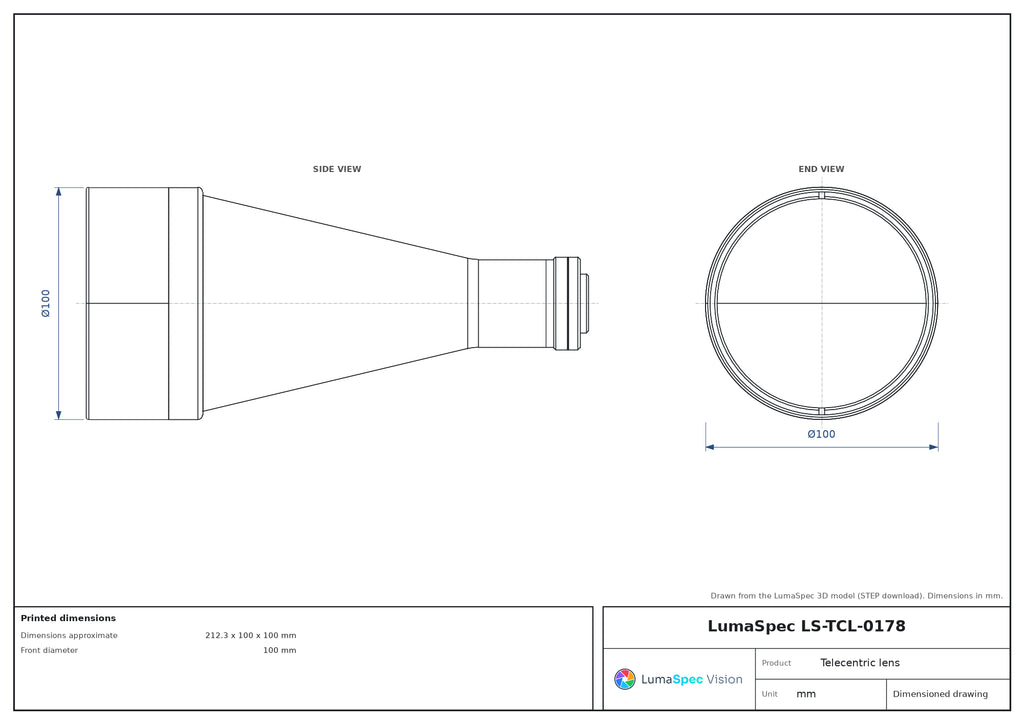

  • LS-TCL-0178 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.074× telecentric lens, 1/3", C-mount (LS-TCL-0178)

Model LS-TCL-0178

  • Magnification0.074×
  • MountC-mount
  • Sensor1/3"
  • Working distance181.9 mm
  • Resolution69 μm
$2,219.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.9 mm; depth of field 75.6 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0178
FOV @ 1/1.8″72.03 mm ø
Fov @ 1/2.0″64.86 mm ø
Fov @ 1/2.5″57.80 mm ø
FOV @ 1/2″64.86 mm ø
Fov @ 1/3.0″64.86 x 48.65 mm
FOV @ 2/3″81 mm ø
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.074×
Working distance181.9 mm
Depth of field75.6 mm
Distortion maximum (%)< 0.07
Distortion typical (%)< 0.03
Filter threadNo Filter Threads
Image circle6 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.06°

Sensor and imaging

Sensor format1/3"
Resolution (pixel size)69 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate212.3 x 100 x 100 mm
Front diameter100 mm
Weight919 Grams
