0.243× telecentric lens, 2/3", C-mount (LS-TCL-0241)

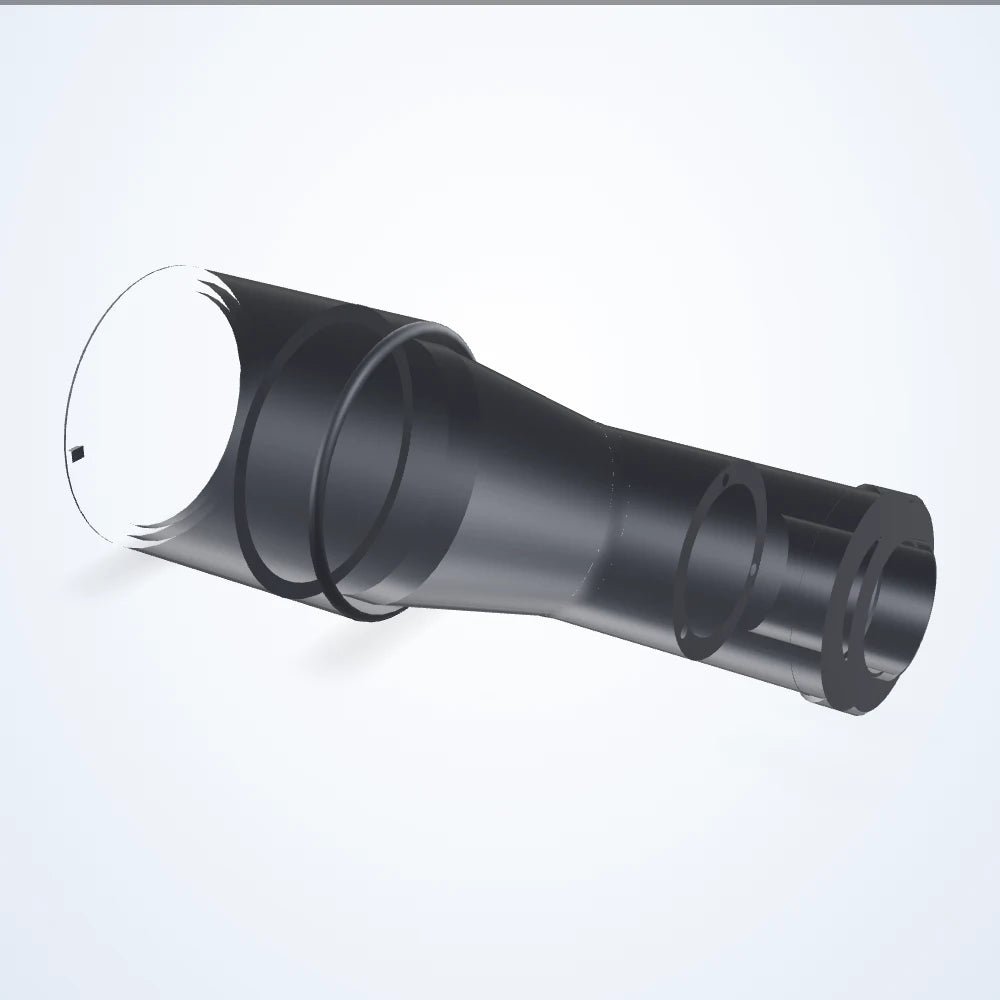

  • 0.243× telecentric lens, 2/3", C-mount (LS-TCL-0241)

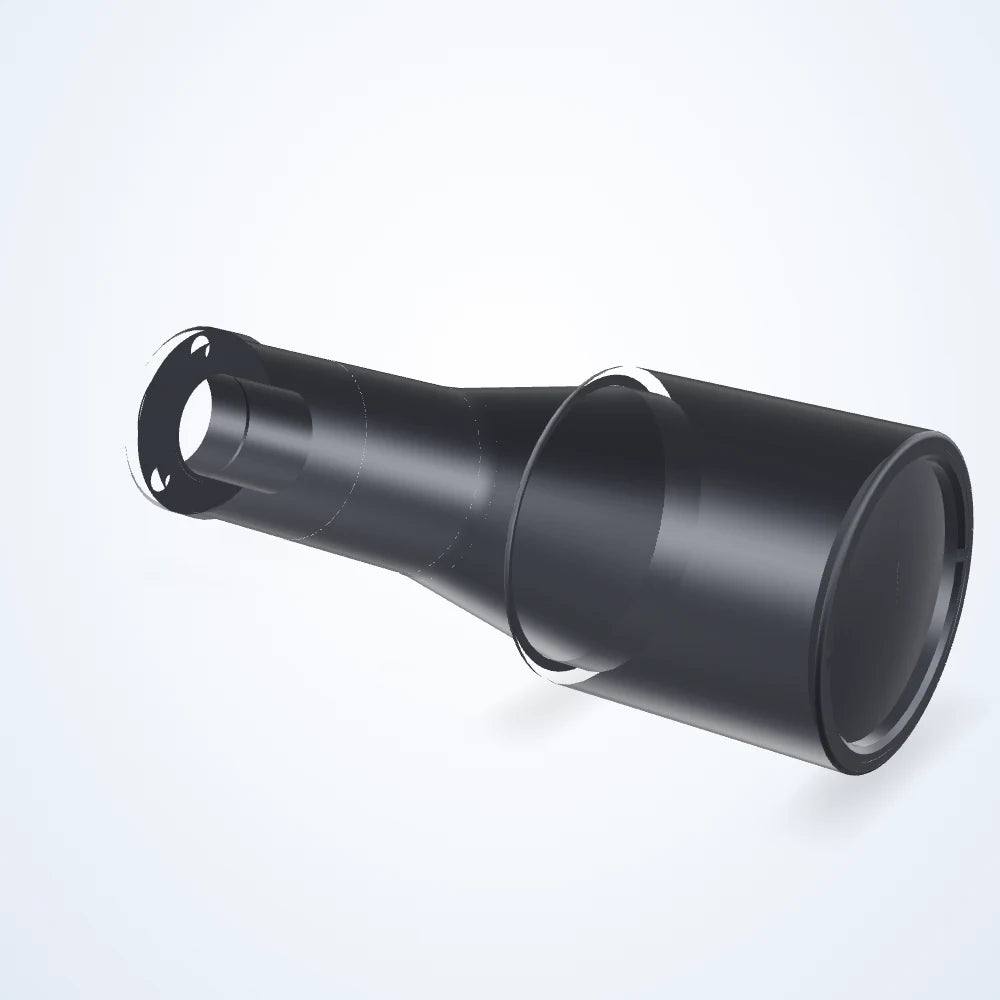

  • 0.243× telecentric lens, 2/3", C-mount (LS-TCL-0241) - view 2

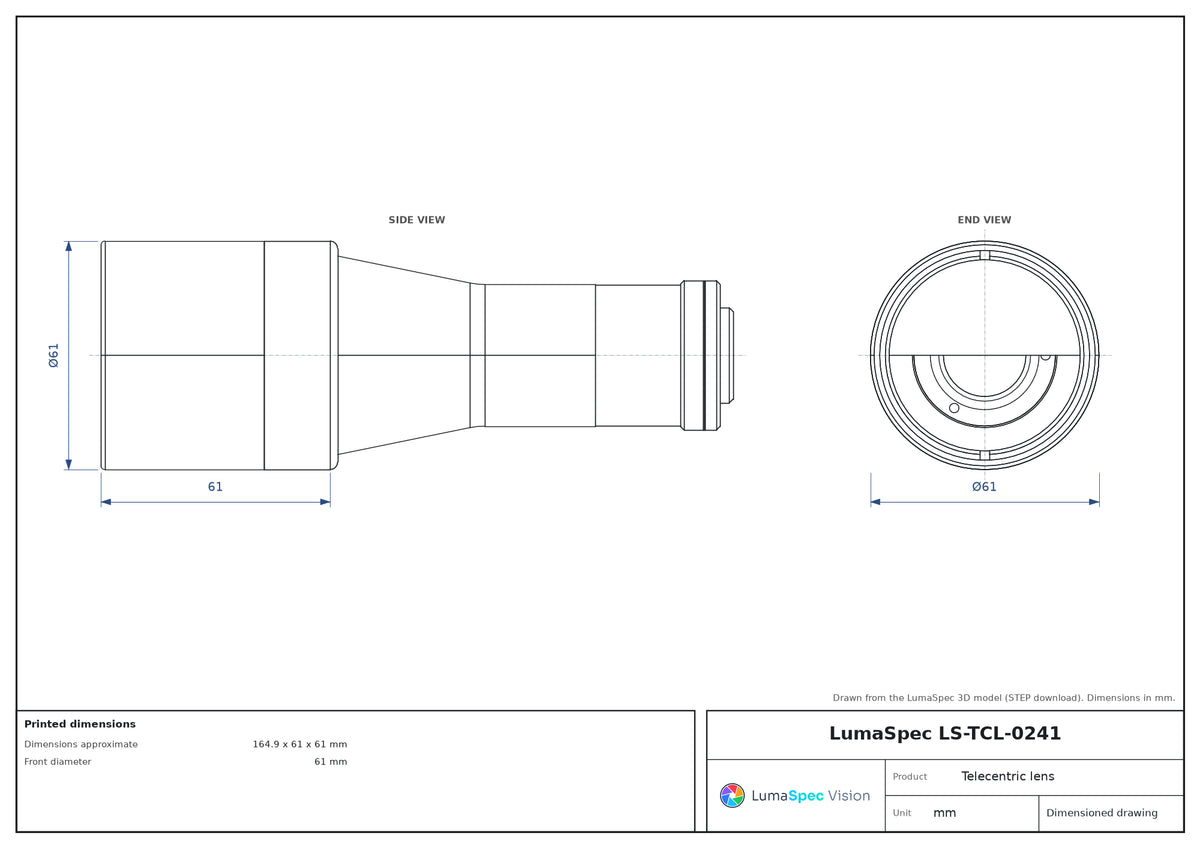

  • LS-TCL-0241 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.243× telecentric lens, 2/3", C-mount, WD 102.5 mm (LS-TCL-0241)

Model LS-TCL-0241

  • Magnification0.243×
  • MountC-mount
  • Sensor2/3"
  • Working distance102.5 mm
  • Resolution21 μm
$1,499.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 102.5 mm; depth of field 7 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0241
FOV @ 1/1.8″29.34 x 21.93 mm
Fov @ 1/2.0″26.34 x 19.75 mm
Fov @ 1/2.5″23.46 x 17.61 mm
FOV @ 1/2″26.34 x 19.75 mm
Fov @ 1/3.0″19.75 x 14.81 mm
FOV @ 2/3″34.98 x 29.18 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.243×
Working distance102.5 mm
Depth of field7 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)21 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate164.9 x 61 x 61 mm
Front diameter61 mm
Weight503 Grams
