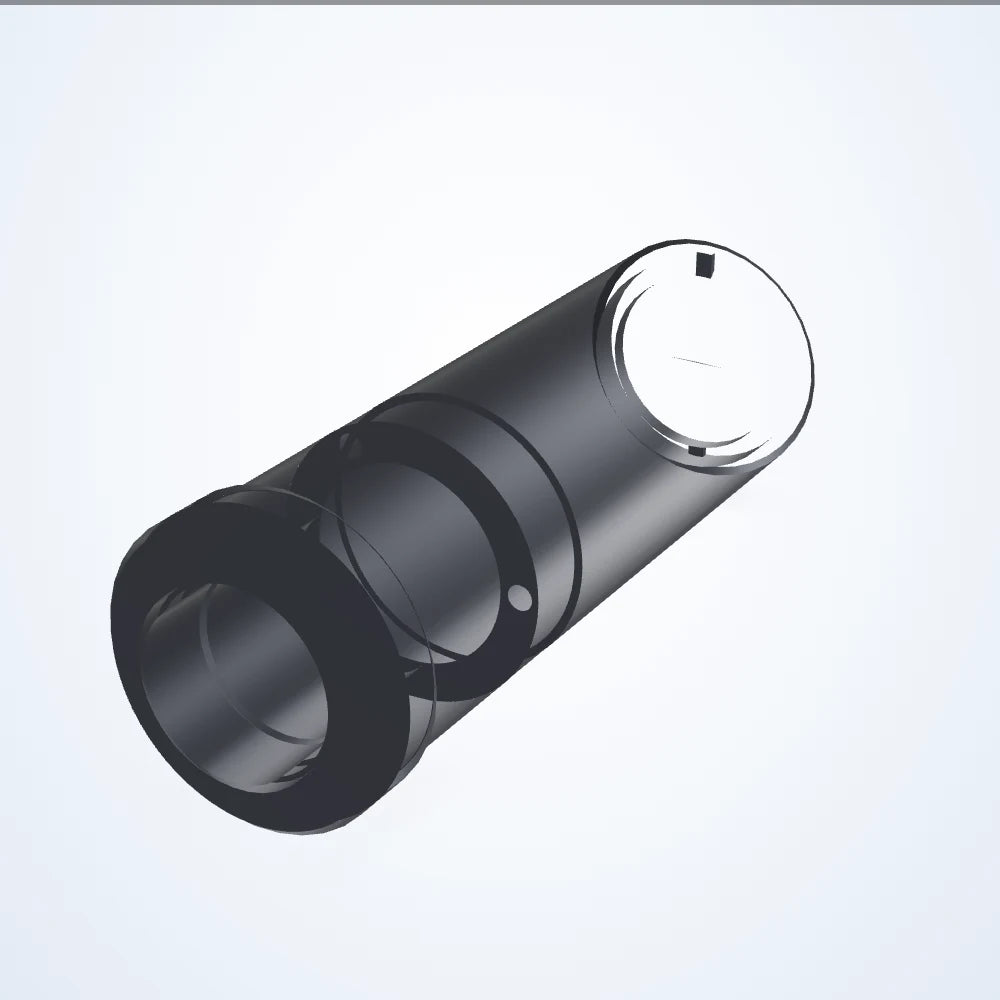

  • 0.528× telecentric lens, 2/3", C-mount (LS-TCL-0239)

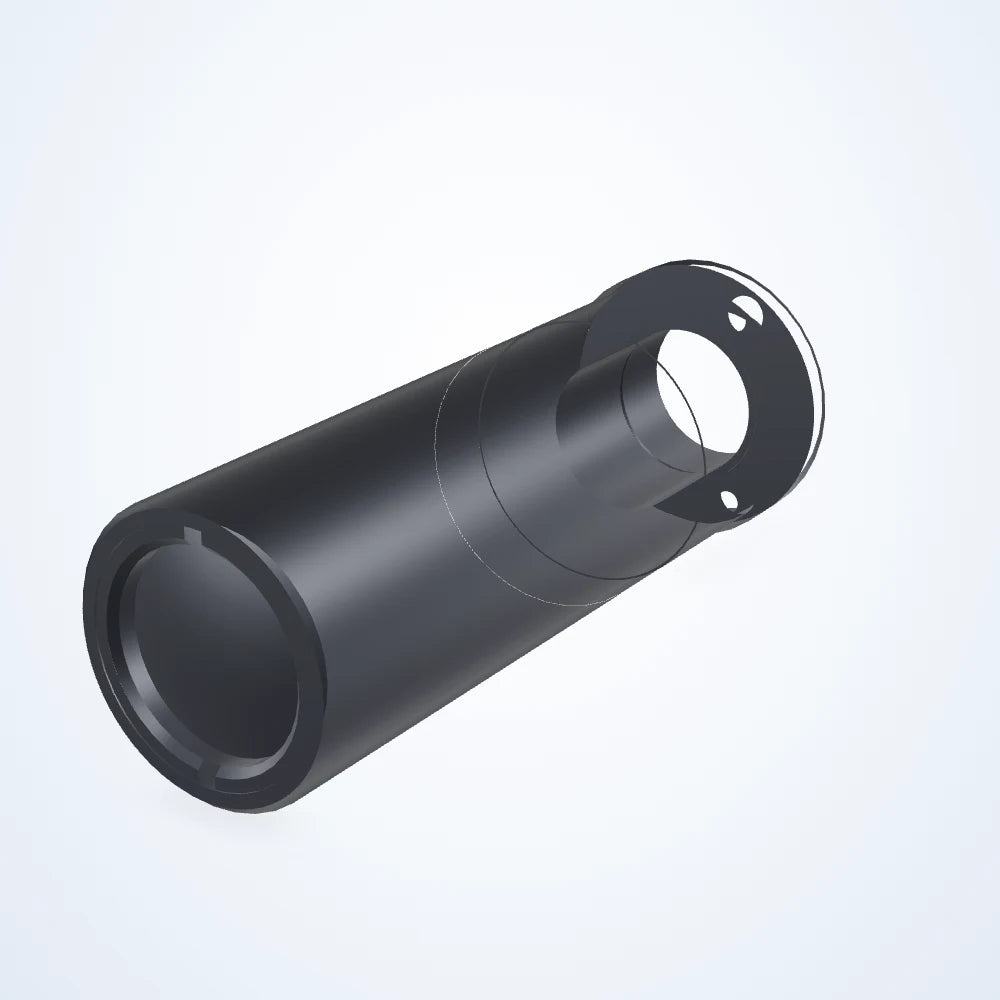

  • 0.528× telecentric lens, 2/3", C-mount (LS-TCL-0239) - view 2

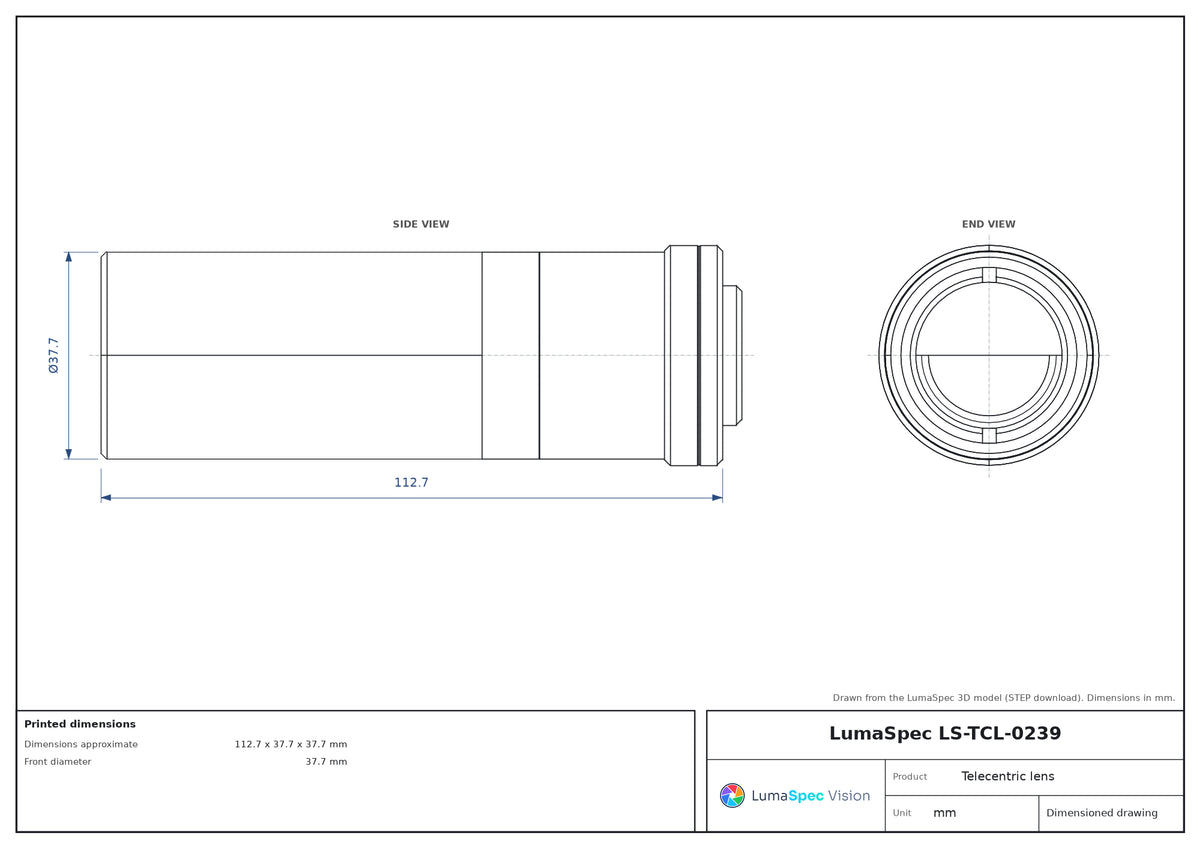

  • LS-TCL-0239 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.528× telecentric lens, 2/3", C-mount (LS-TCL-0239)

Model LS-TCL-0239

  • Magnification0.528×
  • MountC-mount
  • Sensor2/3"
  • Working distance43.1 mm
  • Resolution10 μm
$1,069.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 43.1 mm; depth of field 1.5 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0239
FOV @ 1/1.8″13.50 x 10.09 mm
Fov @ 1/2.0″12.12 x 9.09 mm
Fov @ 1/2.5″10.80 x 8.11 mm
FOV @ 1/2″12.12 x 9.09 mm
Fov @ 1/3.0″9.09 x 6.82 mm
FOV @ 2/3″16.10 x 13.43 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.528×
Working distance43.1 mm
Depth of field1.5 mm
Distortion maximum (%)< 0.07
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.06°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)10 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate112.7 x 37.7 x 37.7 mm
Front diameter37.7 mm
Weight301 Grams
