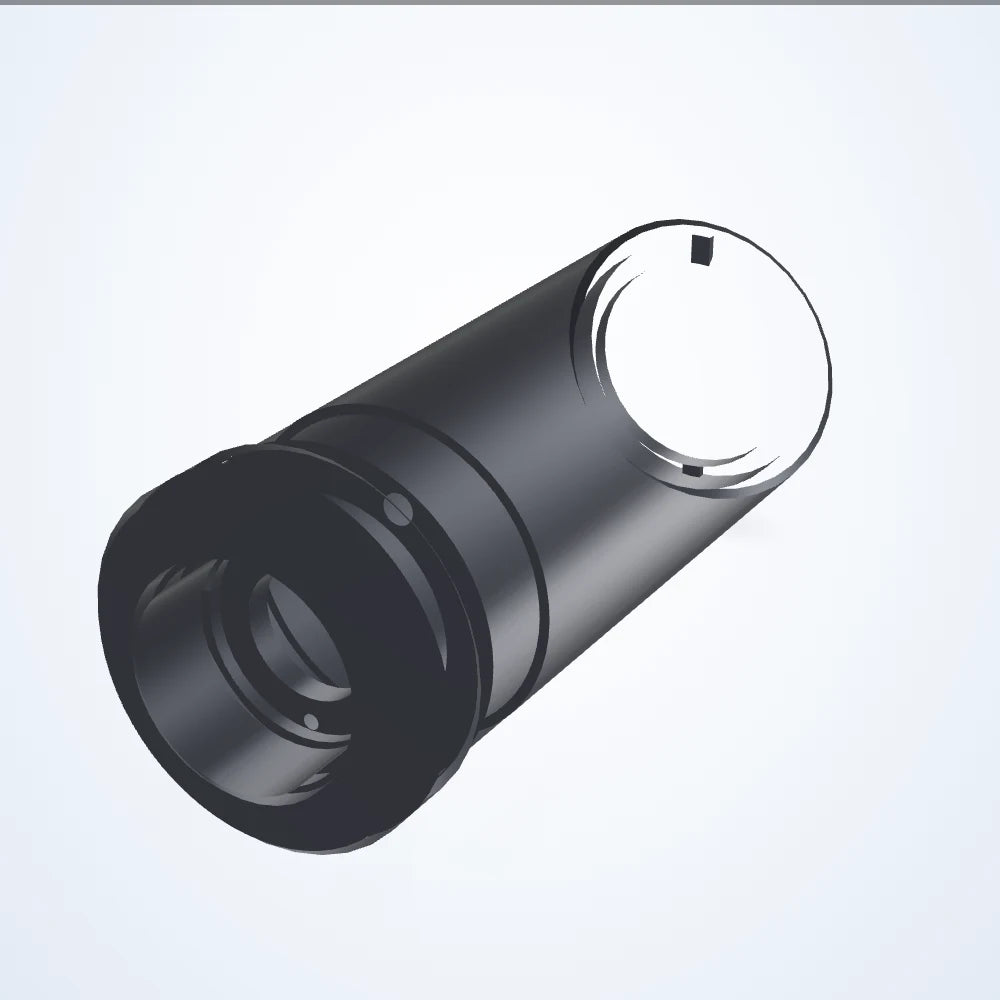

  • 0.385× telecentric lens, 1/2", C-mount (LS-TCL-0136)

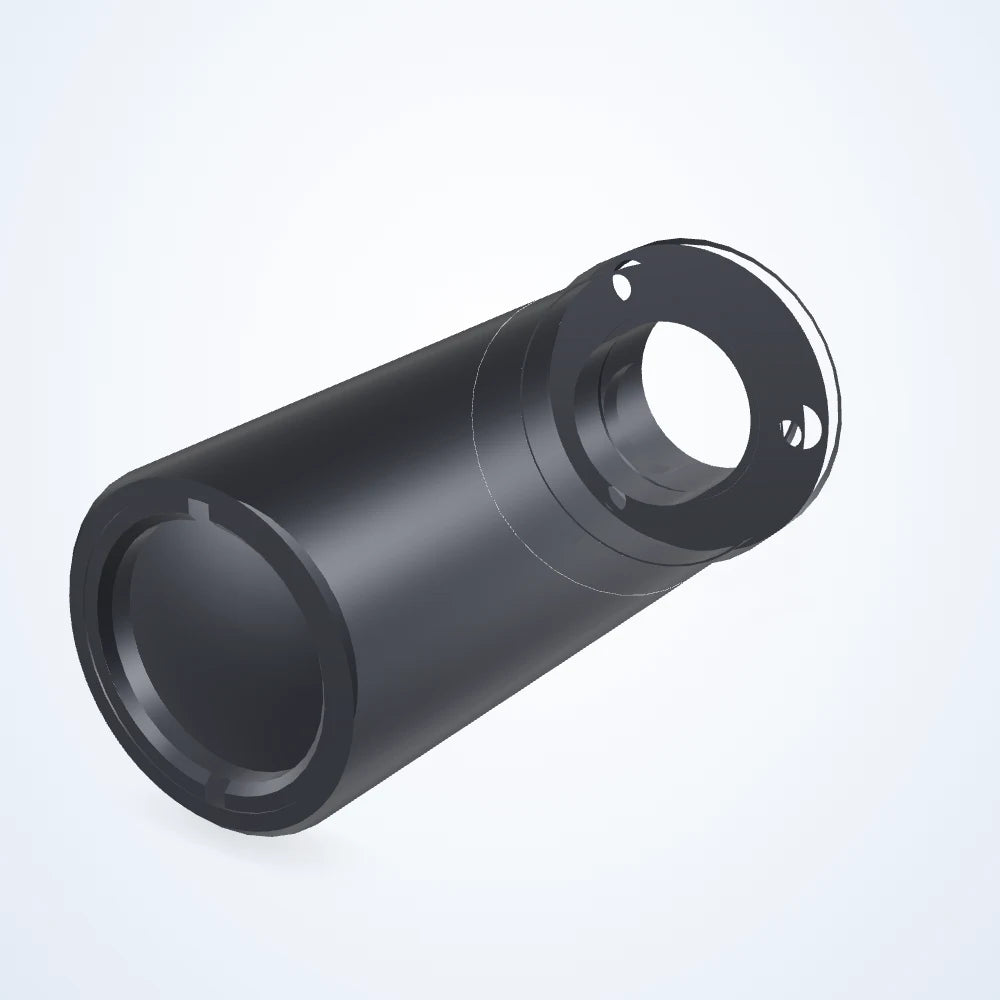

  • 0.385× telecentric lens, 1/2", C-mount (LS-TCL-0136) - view 2

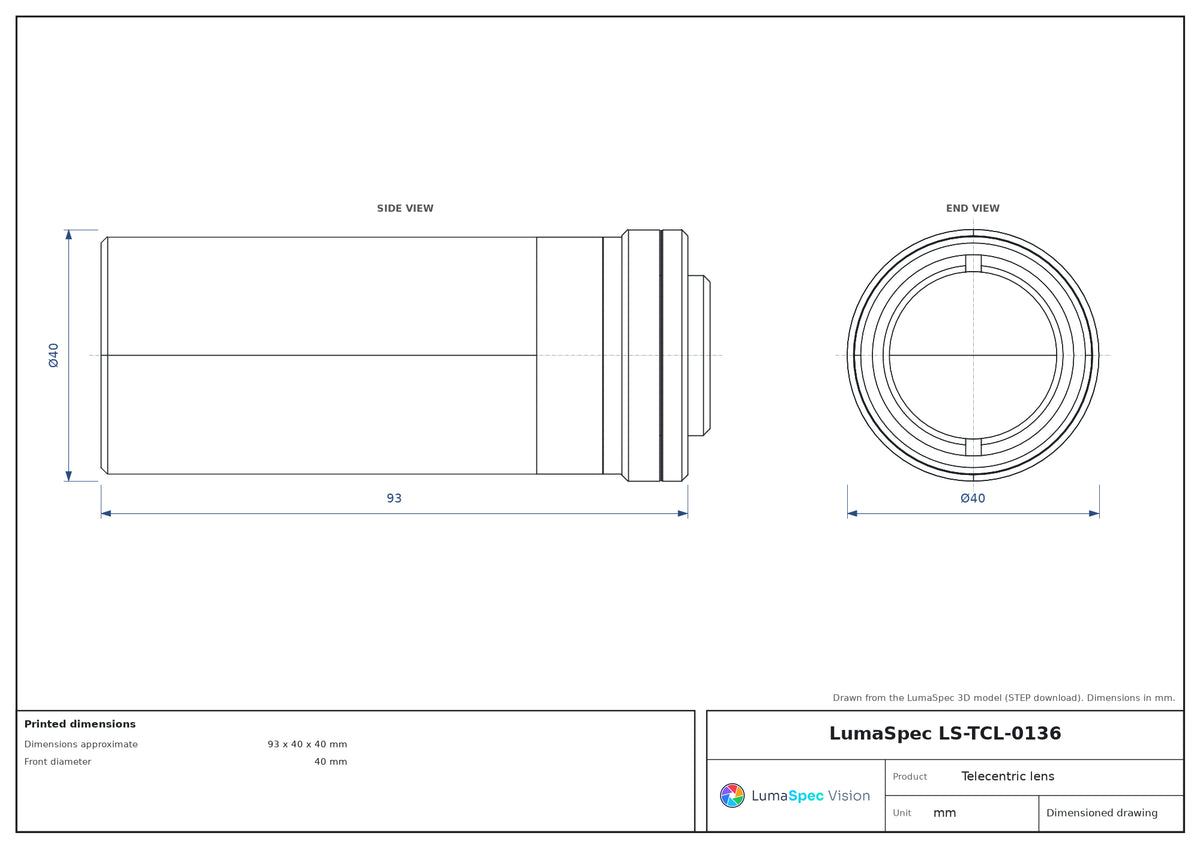

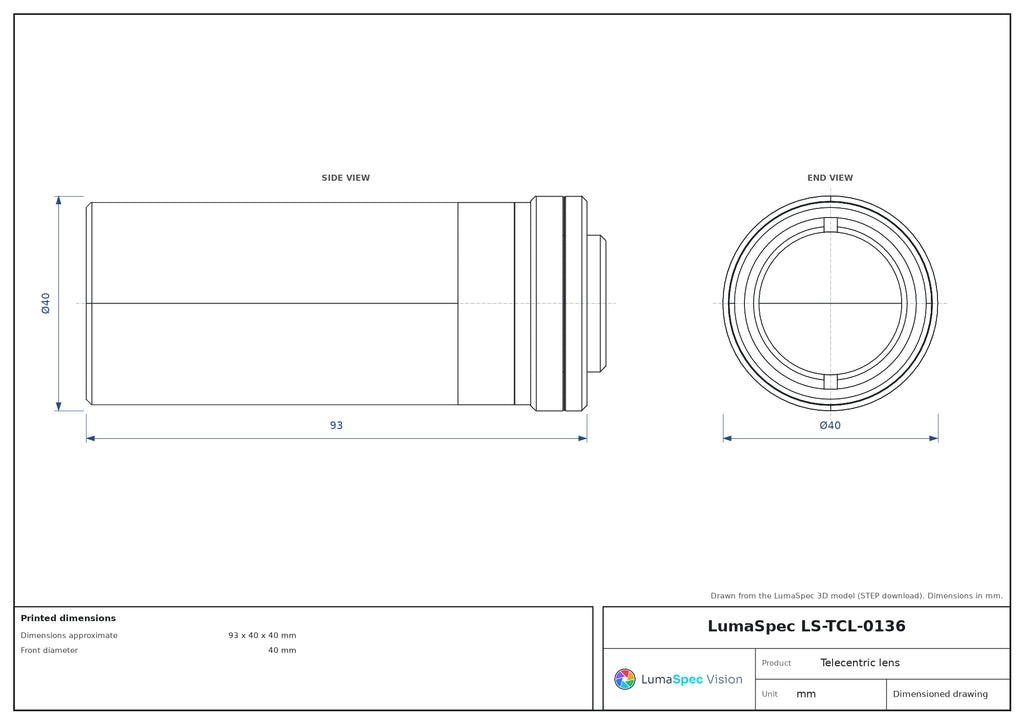

  • LS-TCL-0136 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.385× telecentric lens, 1/2", C-mount (LS-TCL-0136)

Model LS-TCL-0136

  • Magnification0.385×
  • MountC-mount
  • Sensor1/2"
  • Working distance43.1 mm
  • Resolution13 μm
$1,069.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 43.1 mm; depth of field 2.8 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0136
FOV @ 1/1.8″18.52 x 13.84 mm
Fov @ 1/2.0″16.62 x 12.47 mm
Fov @ 1/2.5″14.81 x 11.12 mm
FOV @ 1/2″16.62 x 12.47 mm
Fov @ 1/3.0″12.47 x 9.35 mm
FOV @ 2/3″18.4 mm ø
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.385×
Working distance43.1 mm
Depth of field2.8 mm
Distortion maximum (%)< 0.08
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle8 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format1/2"
Resolution (pixel size)13 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate93 x 40 x 40 mm
Front diameter40 mm
Weight254 Grams
