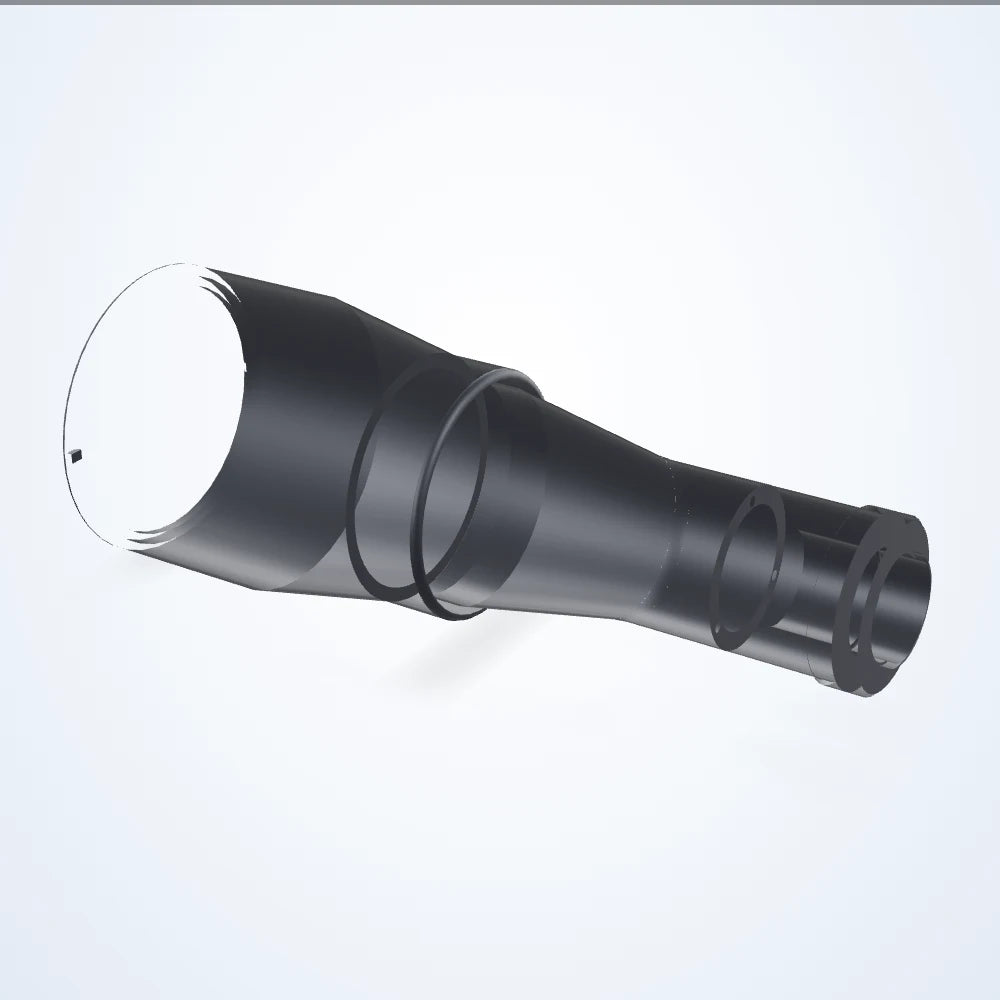

0.184× telecentric lens, 2/3", C-mount (LS-TCL-0242)
  • 0.184× telecentric lens, 2/3", C-mount (LS-TCL-0242)

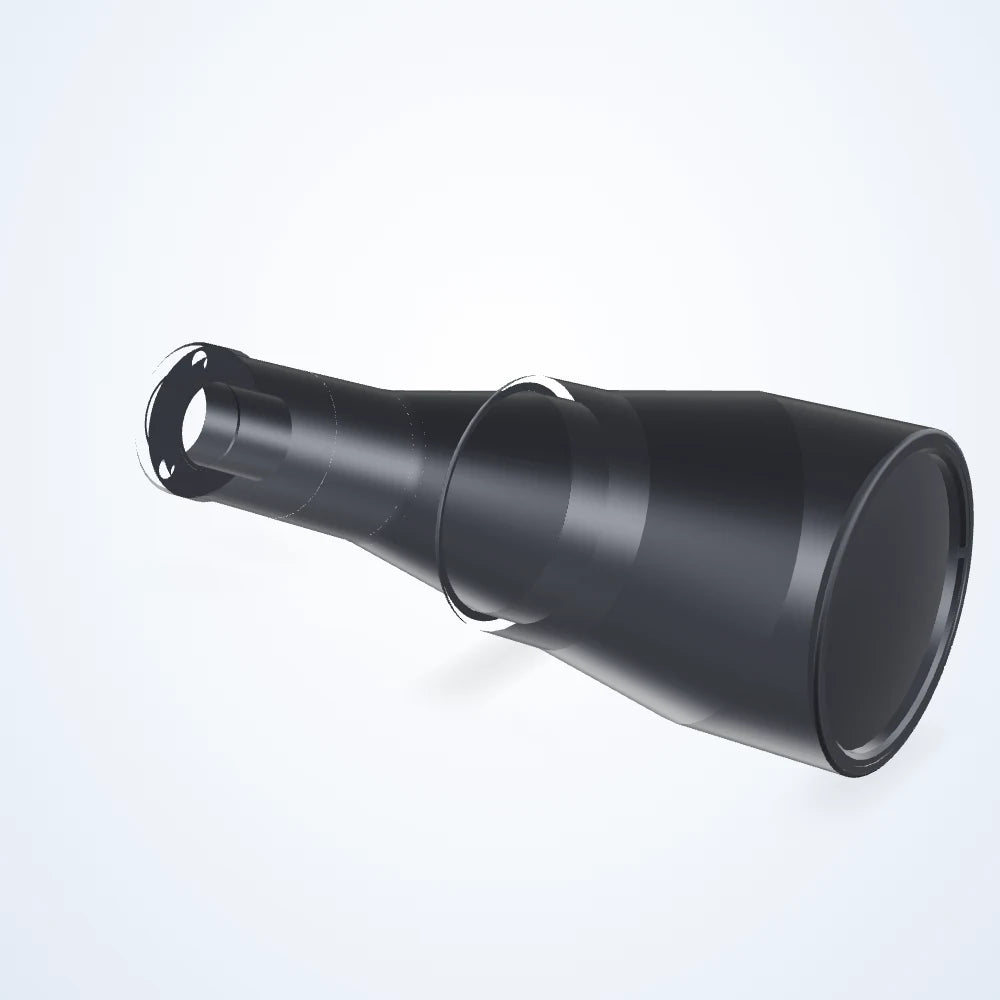

  • 0.184× telecentric lens, 2/3", C-mount (LS-TCL-0242) - view 2

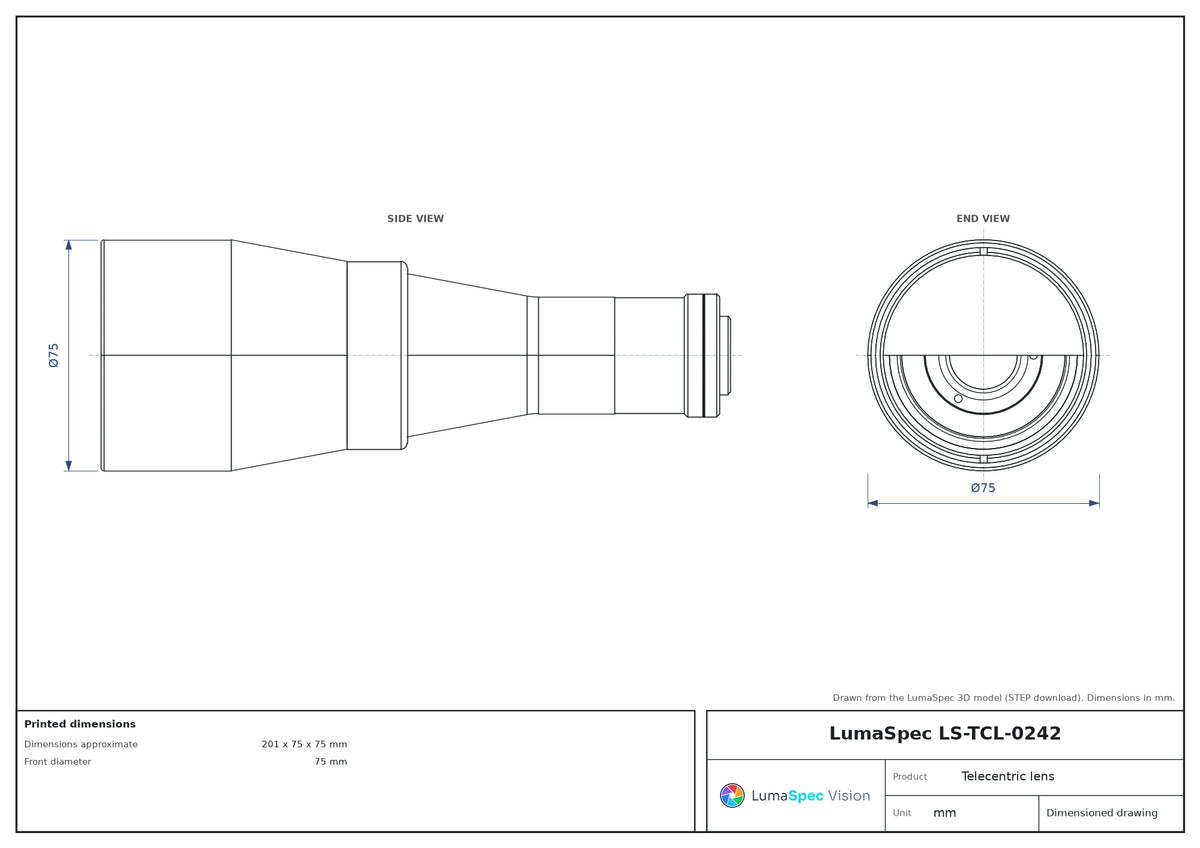

  • LS-TCL-0242 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.184× telecentric lens, 2/3", C-mount (LS-TCL-0242)

Model LS-TCL-0242

  • Magnification0.184×
  • MountC-mount
  • Sensor2/3"
  • Working distance132.9 mm
  • Resolution28 μm
$1,719.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.9 mm; depth of field 12.2 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0242
FOV @ 1/1.8″38.75 x 28.97 mm
Fov @ 1/2.0″34.78 x 26.09 mm
Fov @ 1/2.5″30.98 x 23.26 mm
FOV @ 1/2″34.78 x 26.09 mm
Fov @ 1/3.0″26.09 x 19.57 mm
FOV @ 2/3″46.20 x 38.53 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.184×
Working distance132.9 mm
Depth of field12.2 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.05
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)28 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate201 x 75 x 75 mm
Front diameter75 mm
Weight698 Grams
