0.098× telecentric lens, 1/3", C-mount (LS-TCL-0176)

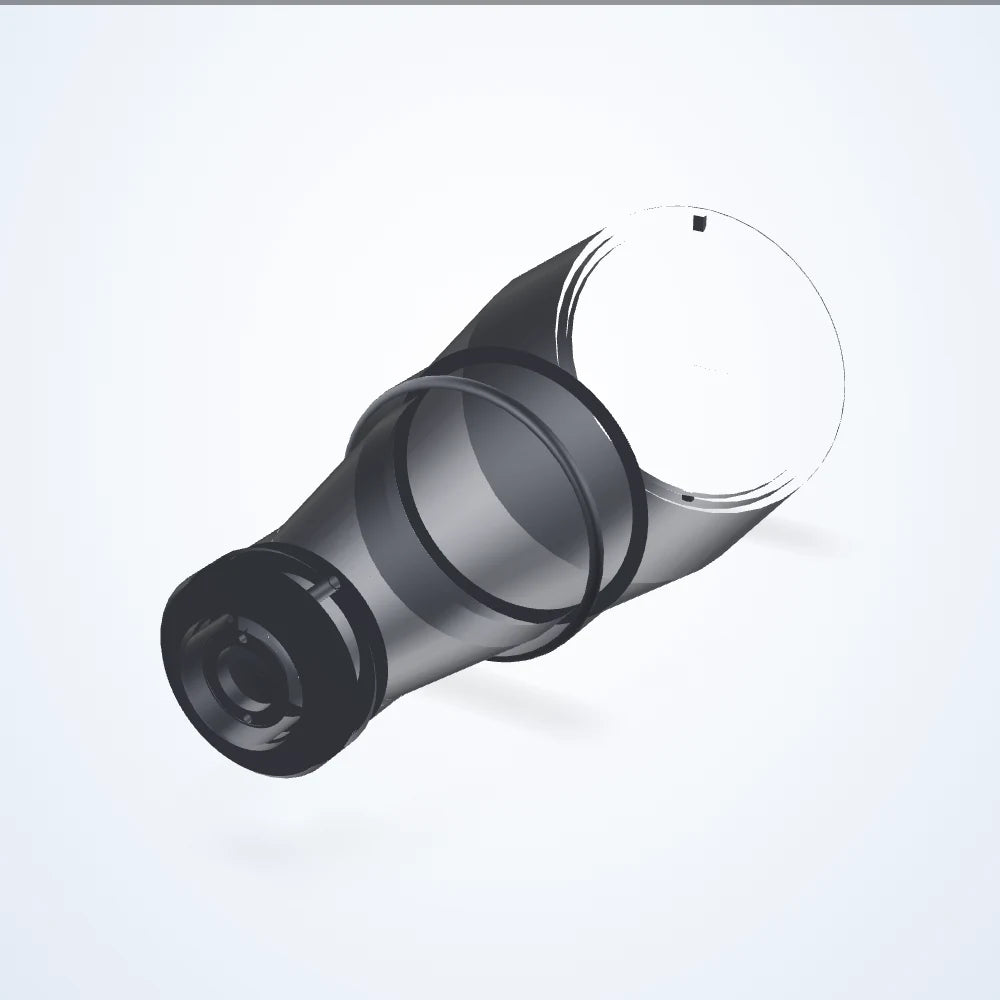

  • 0.098× telecentric lens, 1/3", C-mount (LS-TCL-0176)

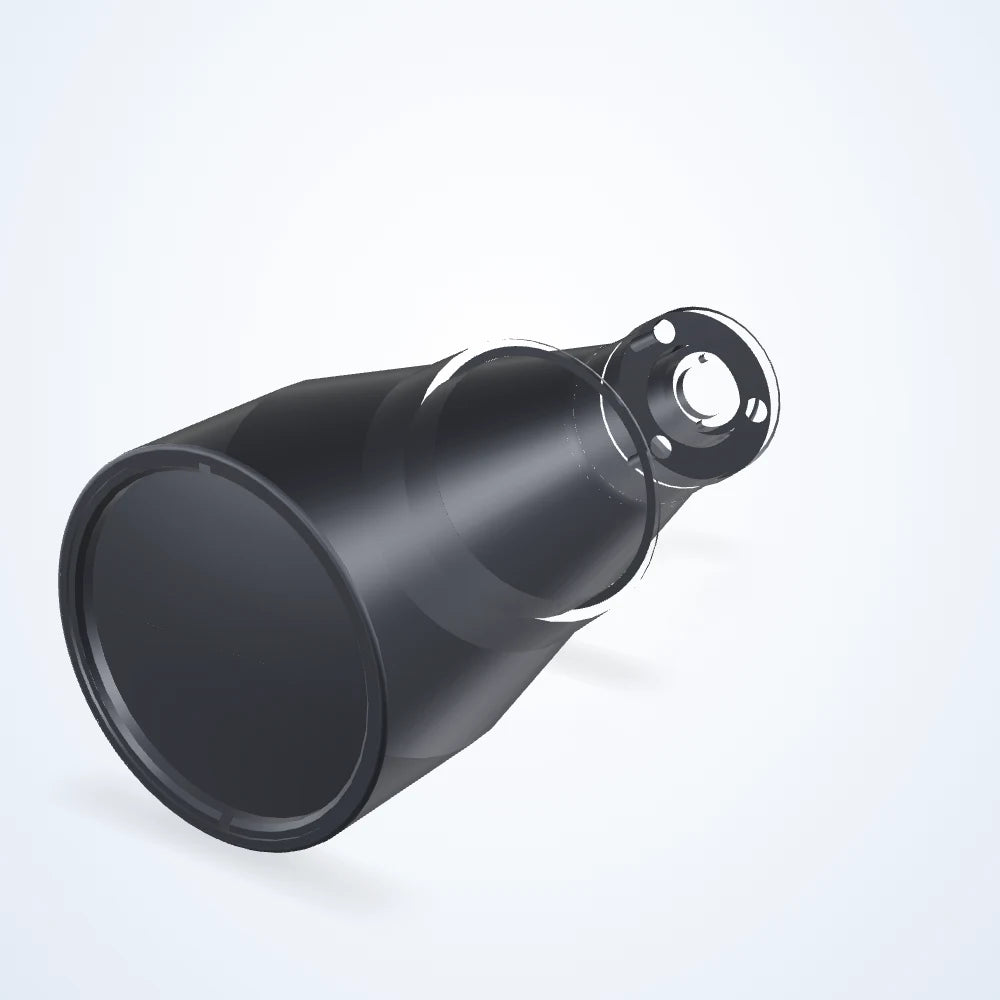

  • 0.098× telecentric lens, 1/3", C-mount (LS-TCL-0176) - view 2

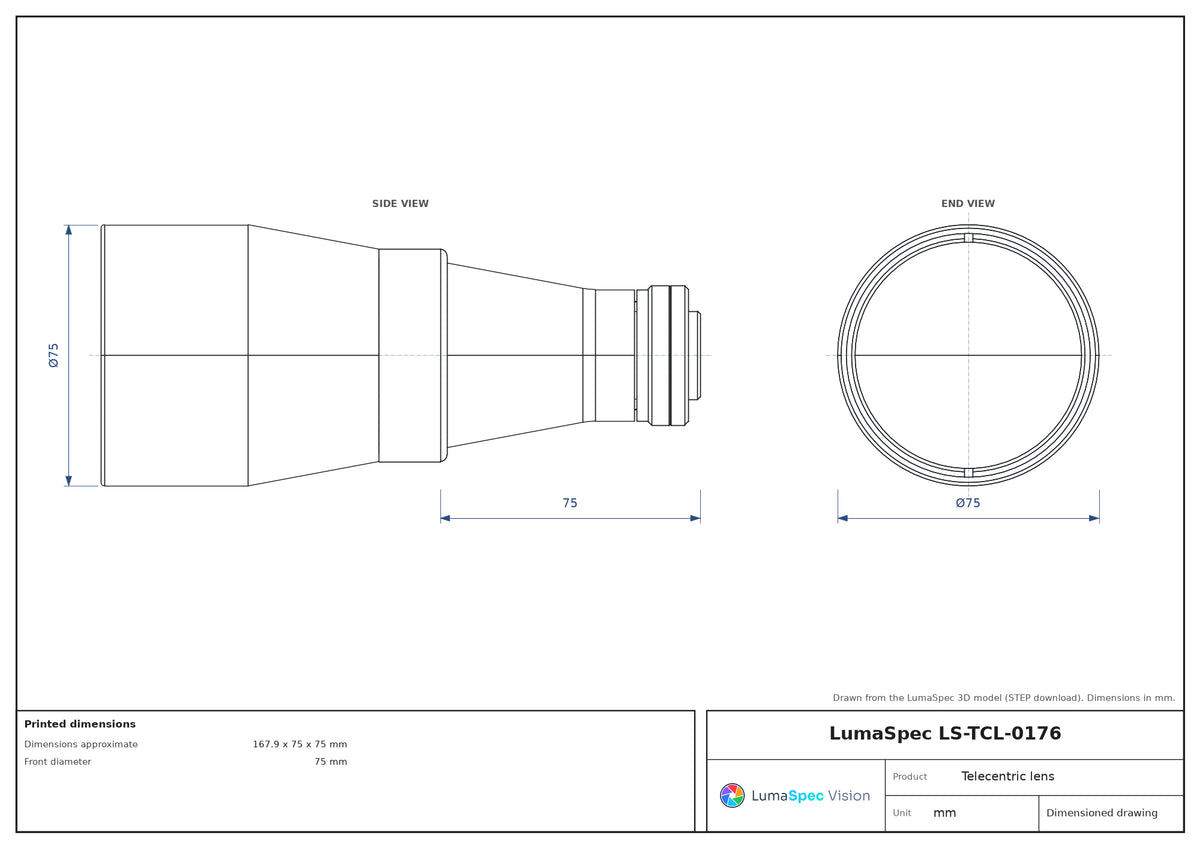

  • LS-TCL-0176 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.098× telecentric lens, 1/3", C-mount (LS-TCL-0176)

Model LS-TCL-0176

  • Magnification0.098×
  • MountC-mount
  • Sensor1/3"
  • Working distance133.4 mm
  • Resolution52 μm
$1,719.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 133.4 mm; depth of field 43.1 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0176
FOV @ 1/1.8″54.39 mm ø
Fov @ 1/2.0″48.98 mm ø
Fov @ 1/2.5″43.60 mm ø
FOV @ 1/2″48.98 mm ø
Fov @ 1/3.0″48.98 x 36.73 mm
FOV @ 2/3″61.2 mm ø
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.098×
Working distance133.4 mm
Depth of field43.1 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.06
Filter threadNo Filter Threads
Image circle6 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor format1/3"
Resolution (pixel size)52 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate167.9 x 75 x 75 mm
Front diameter75 mm
Weight622 Grams
