0.122× telecentric lens, 2/3", C-mount (LS-TCL-0245)

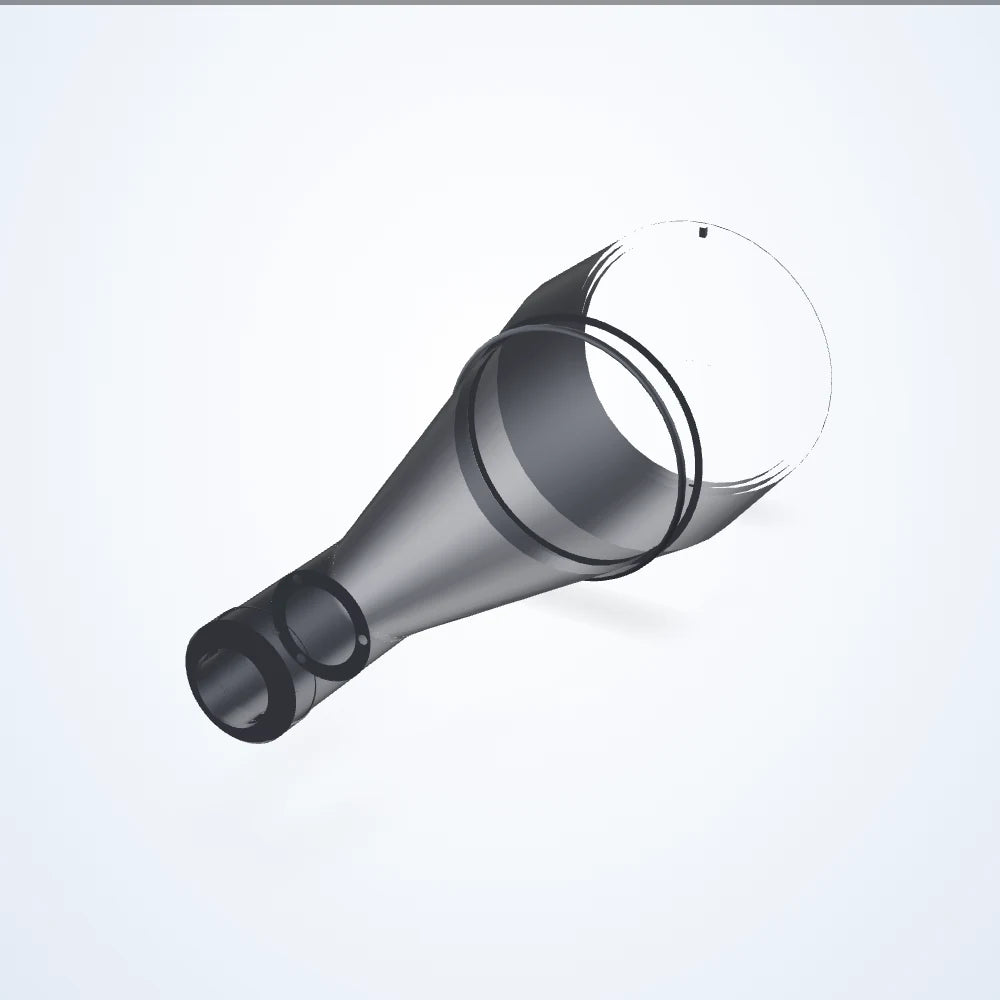

  • 0.122× telecentric lens, 2/3", C-mount (LS-TCL-0245)

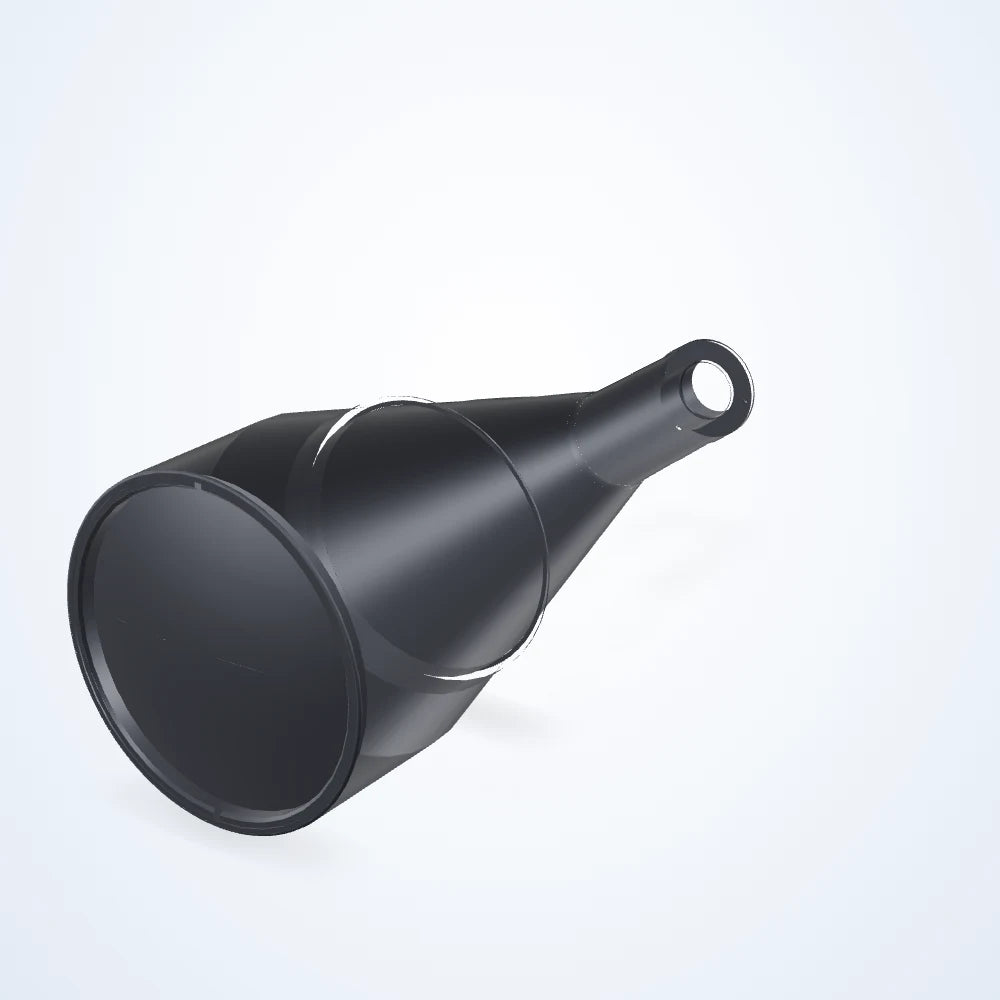

  • 0.122× telecentric lens, 2/3", C-mount (LS-TCL-0245) - view 2

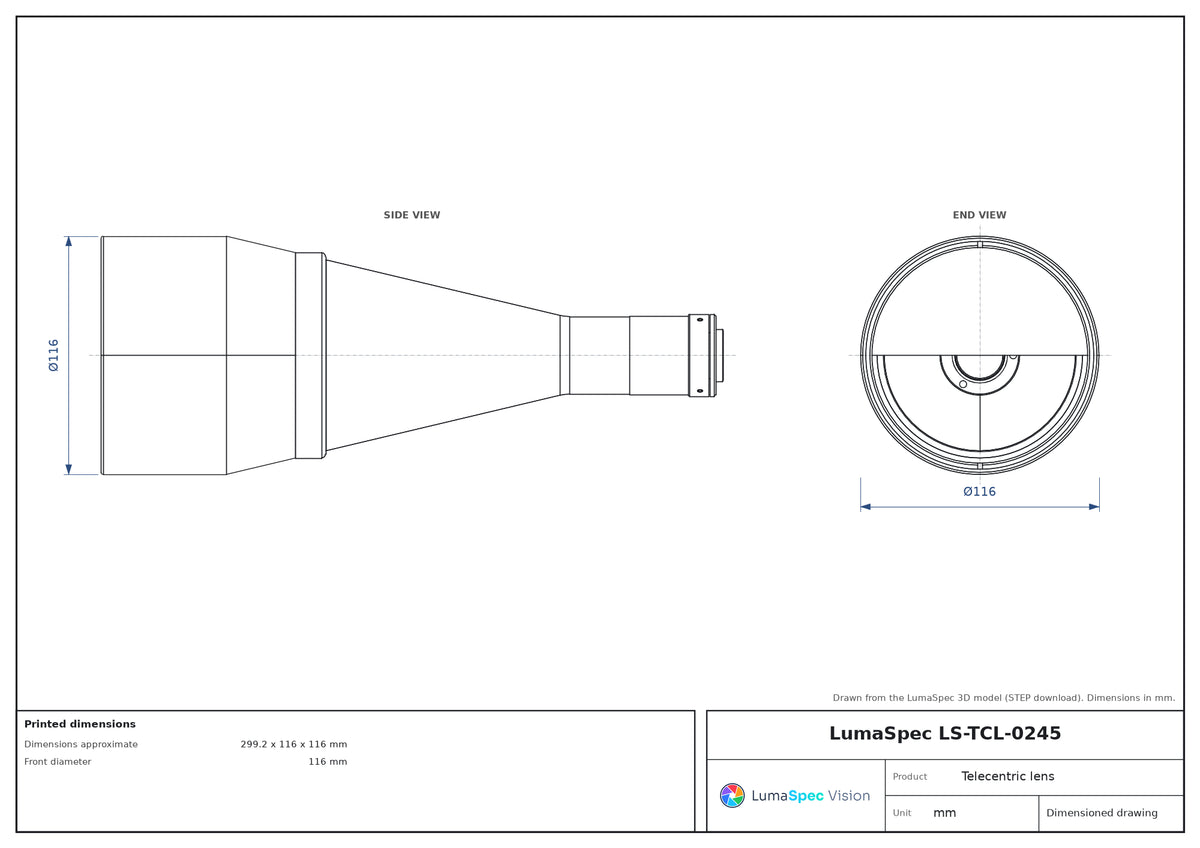

  • LS-TCL-0245 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.122× telecentric lens, 2/3", C-mount (LS-TCL-0245)

Model LS-TCL-0245

  • Magnification0.122×
  • MountC-mount
  • Sensor2/3"
  • Working distance226.7 mm
  • Resolution42 μm
$2,589.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.7 mm; depth of field 27.8 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0245
FOV @ 1/1.8″58.44 x 43.69 mm
Fov @ 1/2.0″52.46 x 39.34 mm
Fov @ 1/2.5″46.72 x 35.08 mm
FOV @ 1/2″52.46 x 39.34 mm
Fov @ 1/3.0″39.34 x 29.51 mm
FOV @ 2/3″69.67 x 58.11 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.122×
Working distance226.7 mm
Depth of field27.8 mm
Distortion maximum (%)< 0.07
Distortion typical (%)< 0.03
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)42 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate299.2 x 116 x 116 mm
Front diameter116 mm
Weight1480 Grams
