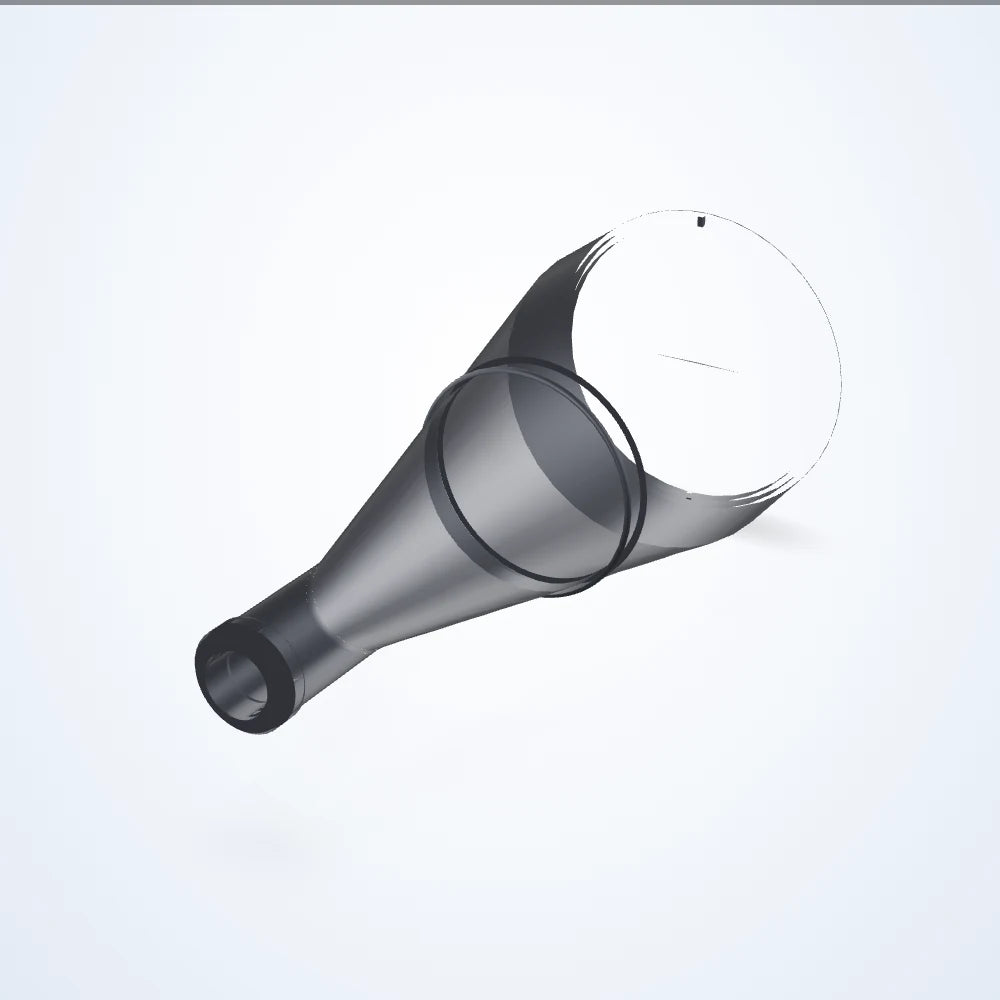

  • 0.093× telecentric lens, 2/3", C-mount (LS-TCL-0248)

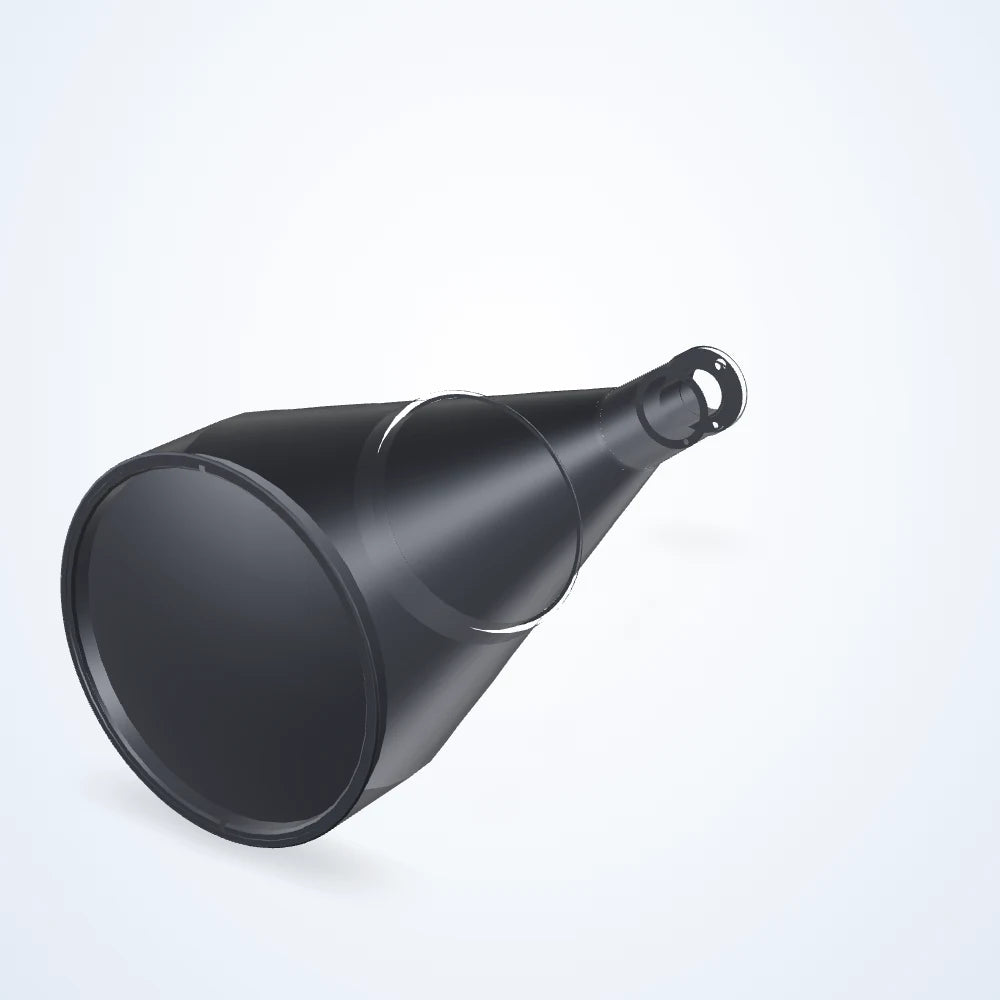

  • 0.093× telecentric lens, 2/3", C-mount (LS-TCL-0248) - view 2

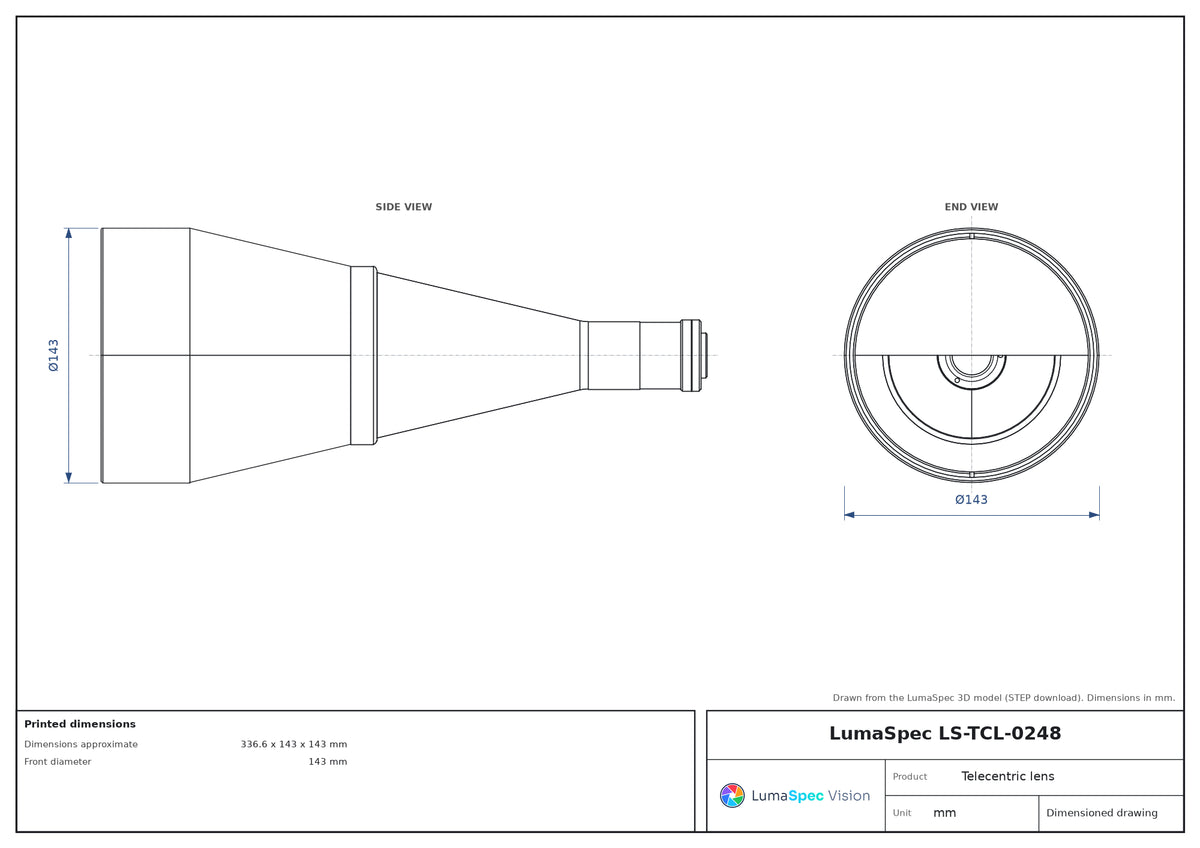

  • LS-TCL-0248 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.093× telecentric lens, 2/3", C-mount (LS-TCL-0248)

Model LS-TCL-0248

  • Magnification0.093×
  • MountC-mount
  • Sensor2/3"
  • Working distance278.6 mm
  • Resolution55 μm
$3,819.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 47.9 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0248
FOV @ 1/1.8″76.67 x 57.31 mm
Fov @ 1/2.0″68.82 x 51.61 mm
Fov @ 1/2.5″61.29 x 46.02 mm
FOV @ 1/2″68.82 x 51.61 mm
Fov @ 1/3.0″51.61 x 38.71 mm
FOV @ 2/3″91.40 x 76.24 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.093×
Working distance278.6 mm
Depth of field47.9 mm
Distortion maximum (%)< 0.08
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.06°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)55 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate336.6 x 143 x 143 mm
Front diameter143 mm
Weight2262 Grams
