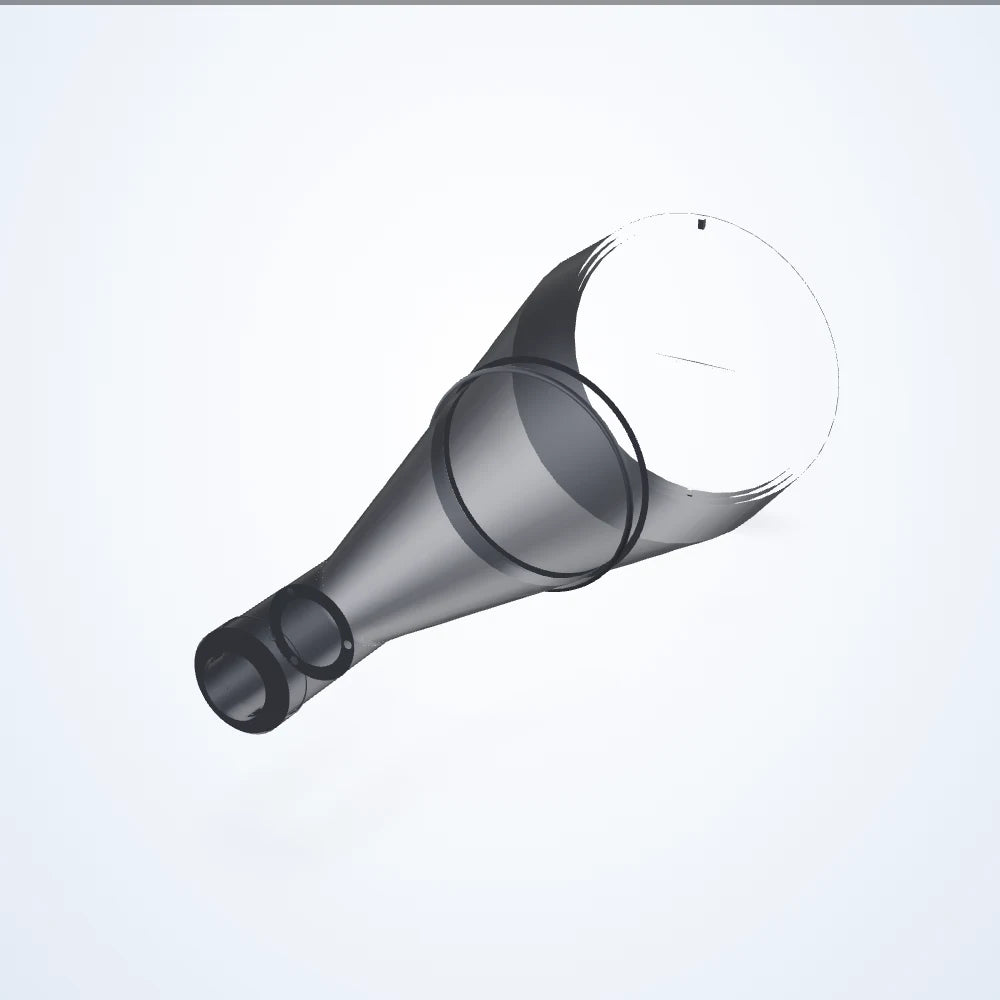

  • 0.104× telecentric lens, 2/3", C-mount (LS-TCL-0247)

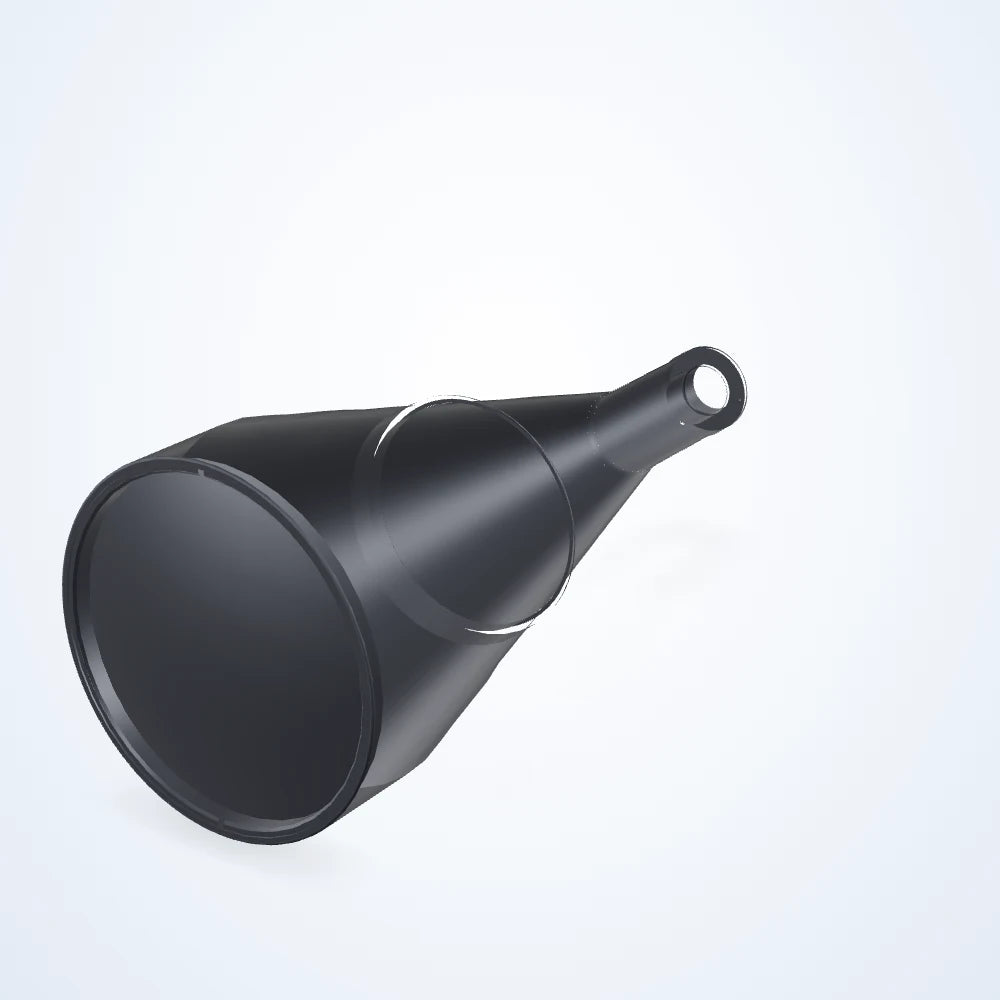

  • 0.104× telecentric lens, 2/3", C-mount (LS-TCL-0247) - view 2

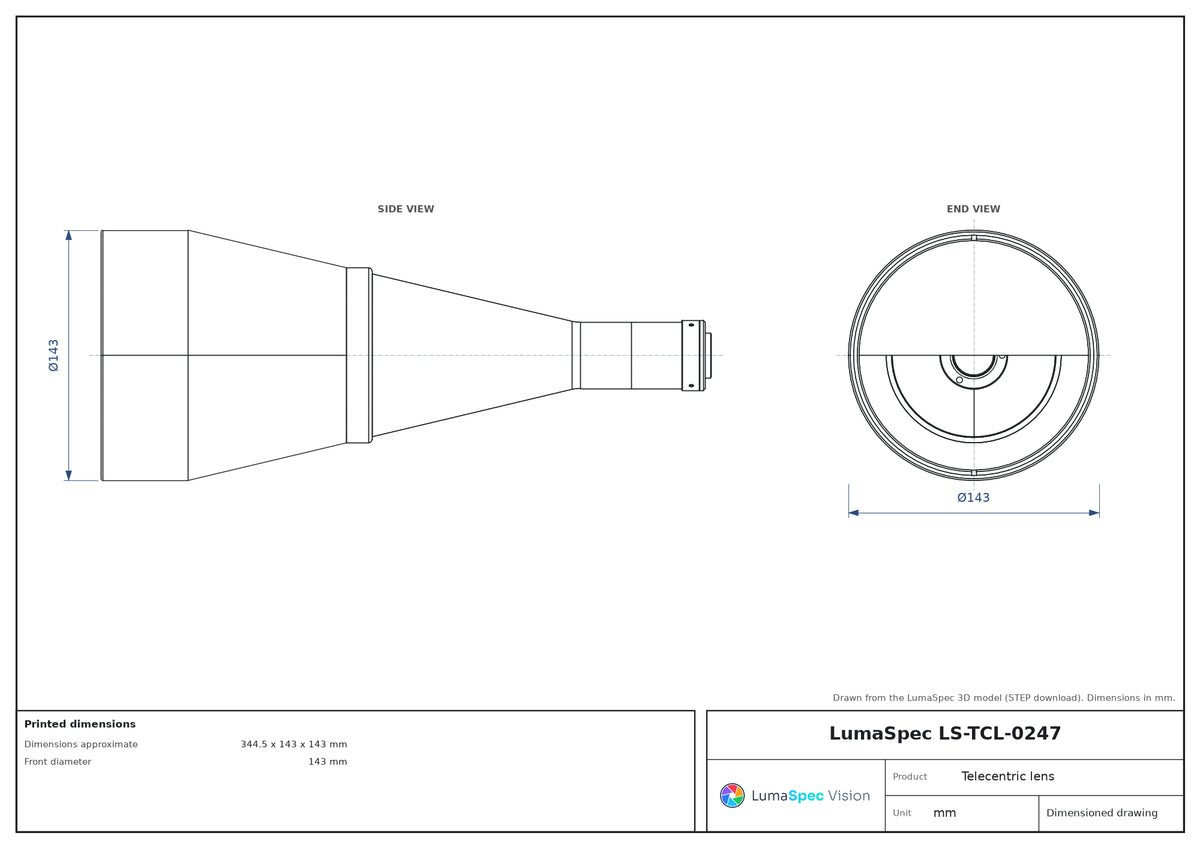

  • LS-TCL-0247 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.104× telecentric lens, 2/3", C-mount (LS-TCL-0247)

Model LS-TCL-0247

  • Magnification0.104×
  • MountC-mount
  • Sensor2/3"
  • Working distance279.7 mm
  • Resolution49 μm
$3,819.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 279.7 mm; depth of field 38.3 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0247
FOV @ 1/1.8″68.56 x 51.25 mm
Fov @ 1/2.0″61.54 x 46.15 mm
Fov @ 1/2.5″54.81 x 41.15 mm
FOV @ 1/2″61.54 x 46.15 mm
Fov @ 1/3.0″46.15 x 34.62 mm
FOV @ 2/3″81.73 x 68.17 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.104×
Working distance279.7 mm
Depth of field38.3 mm
Distortion maximum (%)< 0.08
Distortion typical (%)< 0.02
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)49 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate344.5 x 143 x 143 mm
Front diameter143 mm
Weight2283 Grams
