0.068× telecentric lens, 2/3", C-mount, WD 278.6 mm (LS-TCL-0143)
  • 0.068× telecentric lens, 2/3", C-mount, WD 278.6 mm (LS-TCL-0143)

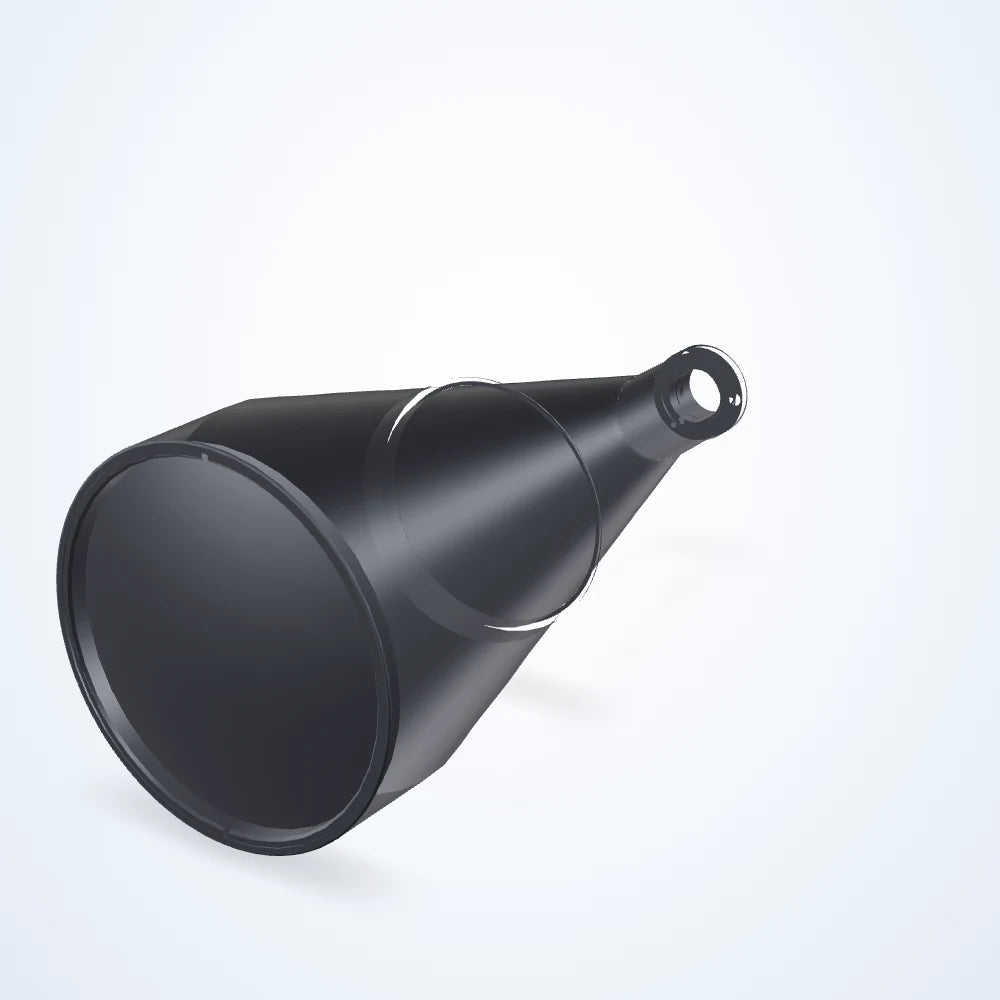

  • 0.068× telecentric lens, 2/3", C-mount, WD 278.6 mm (LS-TCL-0143) - view 2

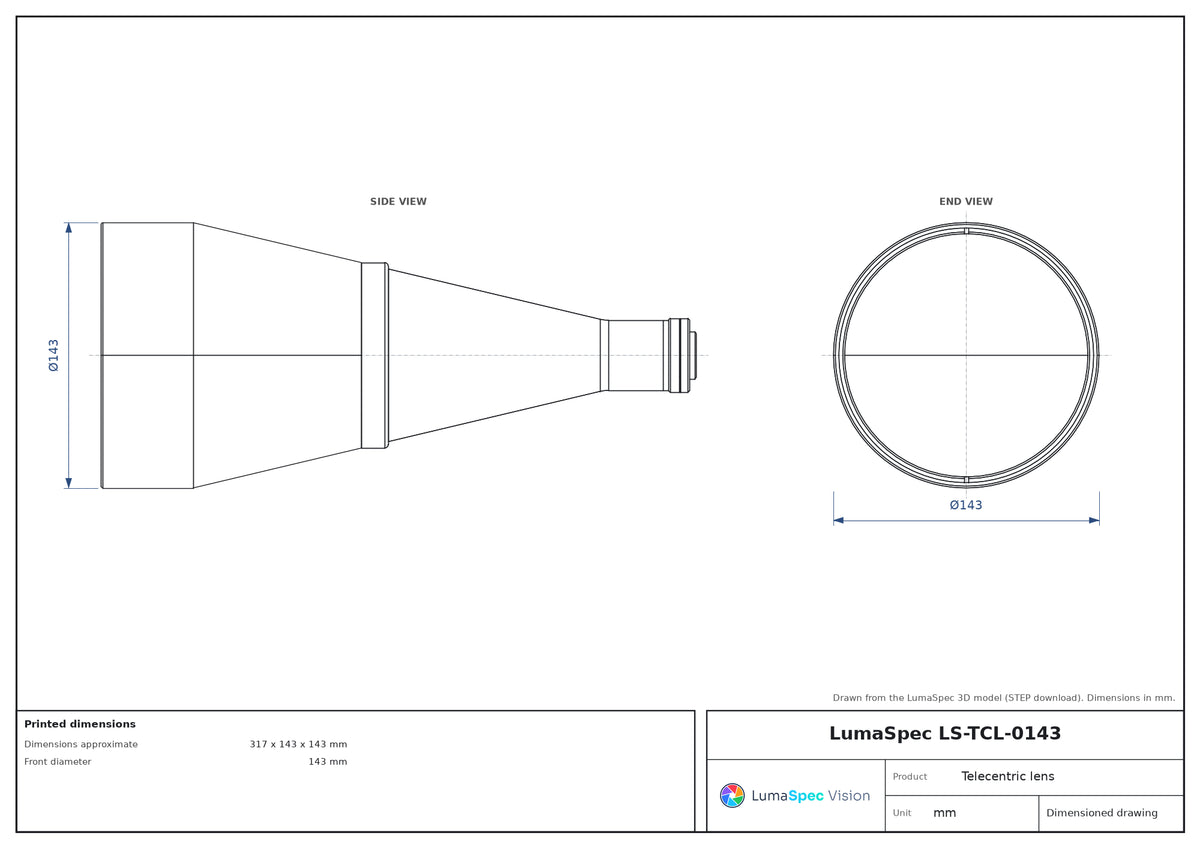

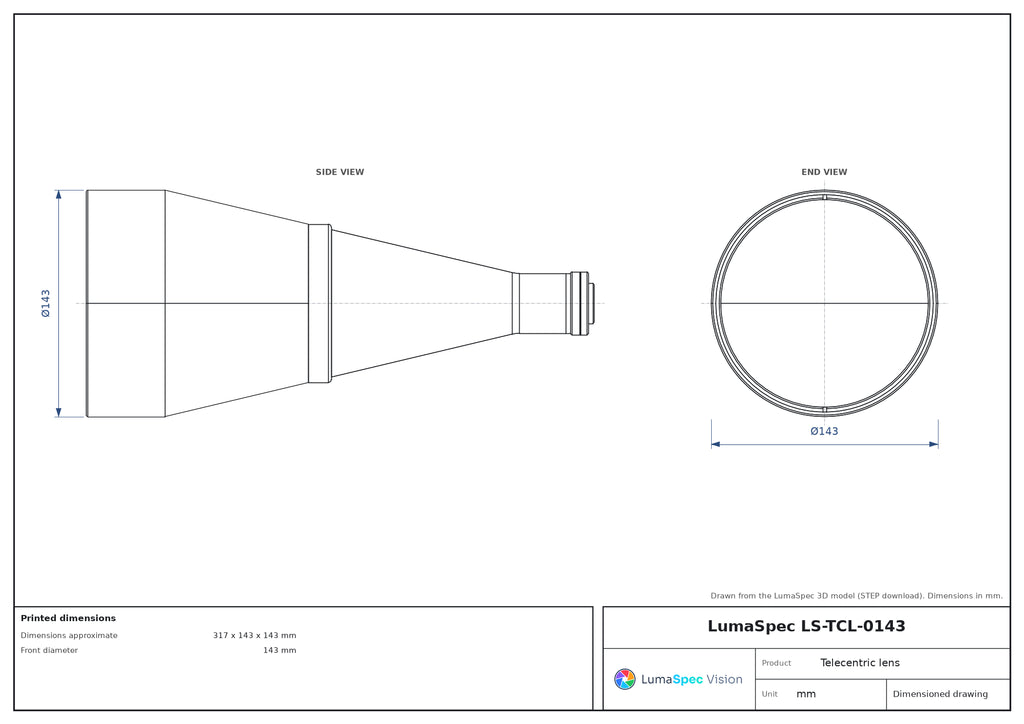

  • LS-TCL-0143 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.068× telecentric lens, 2/3", C-mount, WD 278.6 mm (LS-TCL-0143)

Model LS-TCL-0143

  • Magnification0.068×
  • MountC-mount
  • Sensor2/3"
  • Working distance278.6 mm
  • Resolution75 μm
$3,819.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 89.5 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0143
FOV @ 1/1.8″104.85 x 78.38 mm
Fov @ 1/2.0″94.12 x 70.59 mm
Fov @ 1/2.5″83.82 x 62.94 mm
FOV @ 1/2″94.12 x 70.59 mm
Fov @ 1/3.0″70.59 x 52.94 mm
FOV @ 2/3″104 mm ø
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.068×
Working distance278.6 mm
Depth of field89.5 mm
Distortion maximum (%)< 0.08
Distortion typical (%)< 0.03
Filter threadNo Filter Threads
Image circle8 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.06°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)75 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate317 x 143 x 143 mm
Front diameter143 mm
Weight2215 Grams
