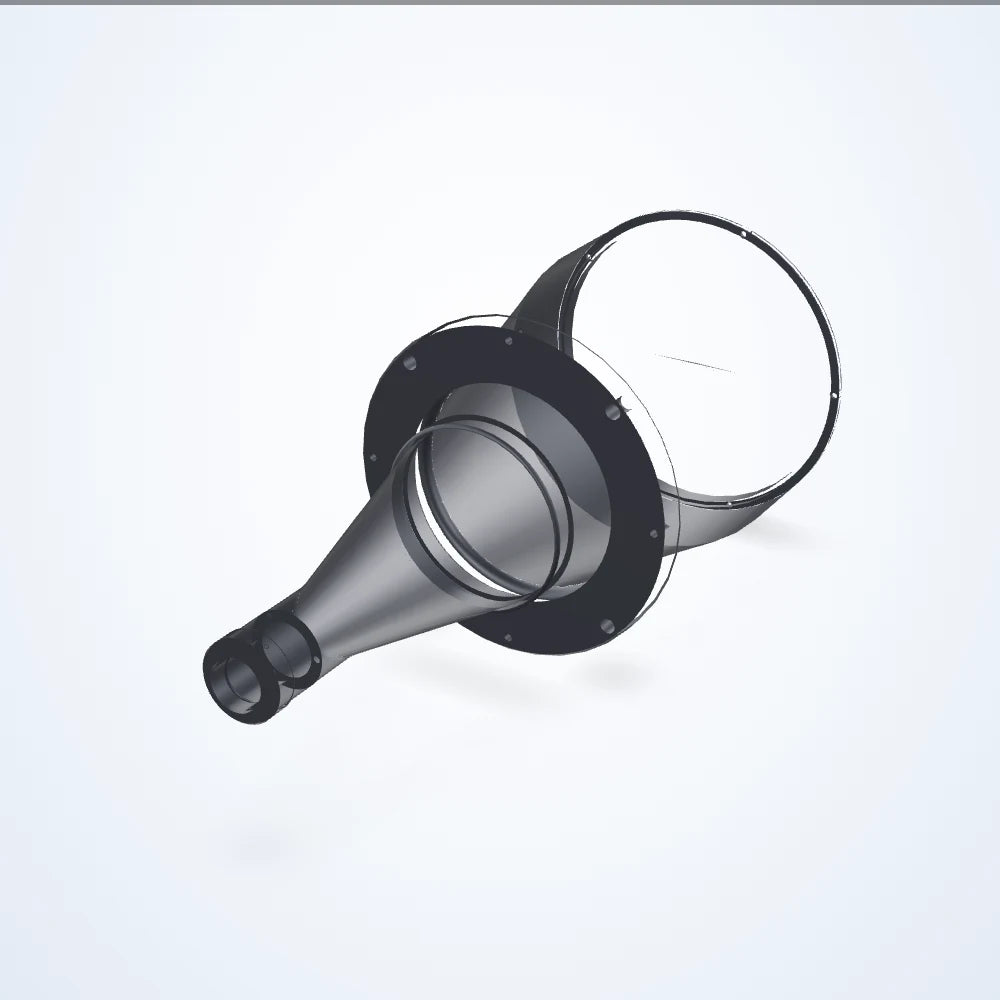

  • 0.072× telecentric lens, 2/3", C-mount (LS-TCL-0250)

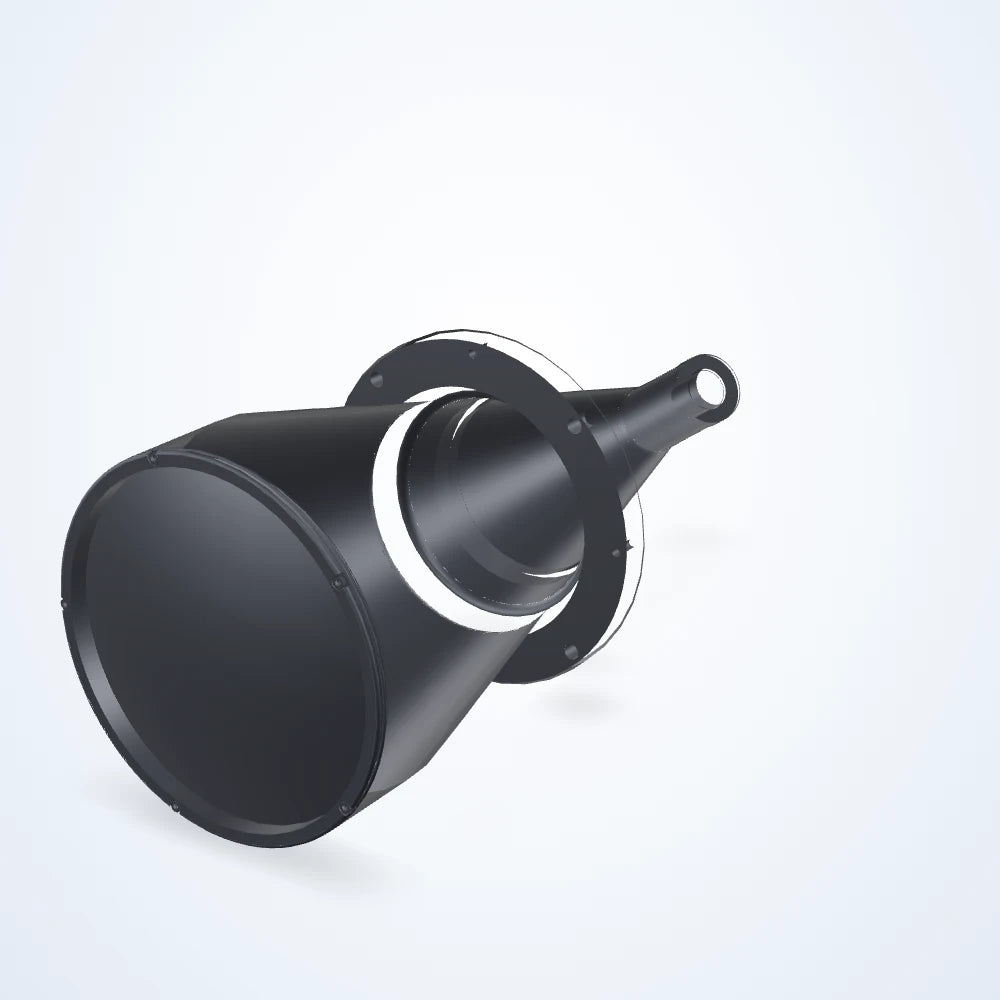

  • 0.072× telecentric lens, 2/3", C-mount (LS-TCL-0250) - view 2

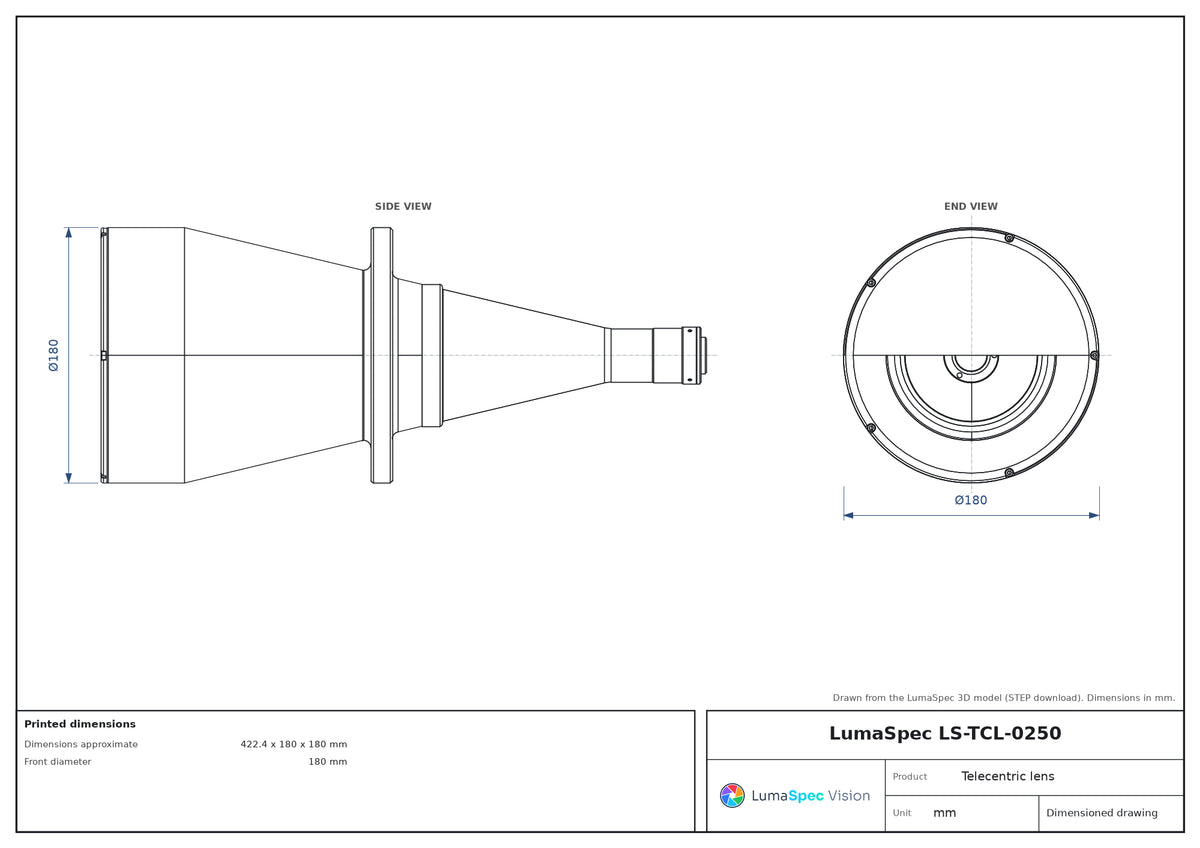

  • LS-TCL-0250 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.072× telecentric lens, 2/3", C-mount (LS-TCL-0250)

Model LS-TCL-0250

  • Magnification0.072×
  • MountC-mount
  • Sensor2/3"
  • Working distance334.5 mm
  • Resolution70 μm
$4,569.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 334.5 mm; depth of field 79.9 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0250
FOV @ 1/1.8″99.03 x 74.03 mm
Fov @ 1/2.0″88.89 x 66.67 mm
Fov @ 1/2.5″79.17 x 59.44 mm
FOV @ 1/2″88.89 x 66.67 mm
Fov @ 1/3.0″66.67 x 50.00 mm
FOV @ 2/3″118.06 x 98.47 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.072×
Working distance334.5 mm
Depth of field79.9 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.07°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)70 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate422.4 x 180 x 180 mm
Front diameter180 mm
Weight4720 Grams
