0.037× telecentric lens, 2/3", C-mount (LS-TCL-0256)

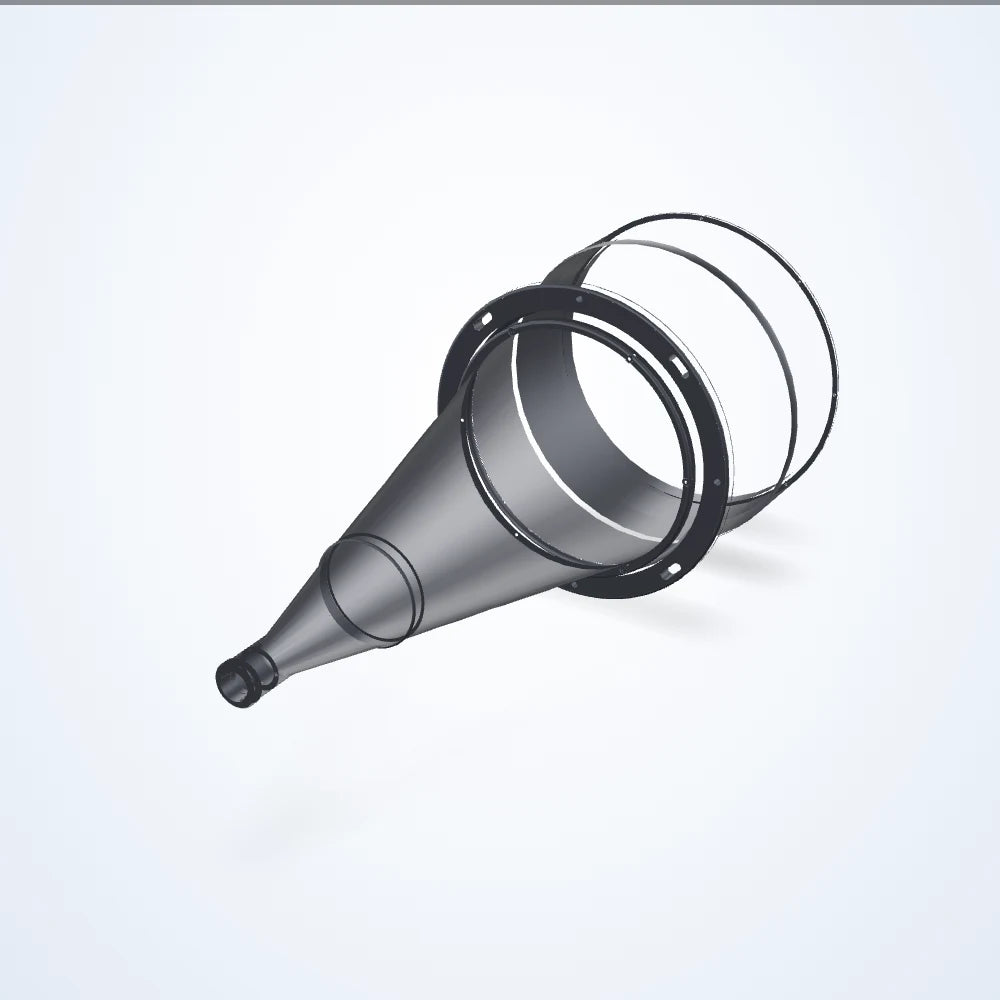

  • 0.037× telecentric lens, 2/3", C-mount (LS-TCL-0256)

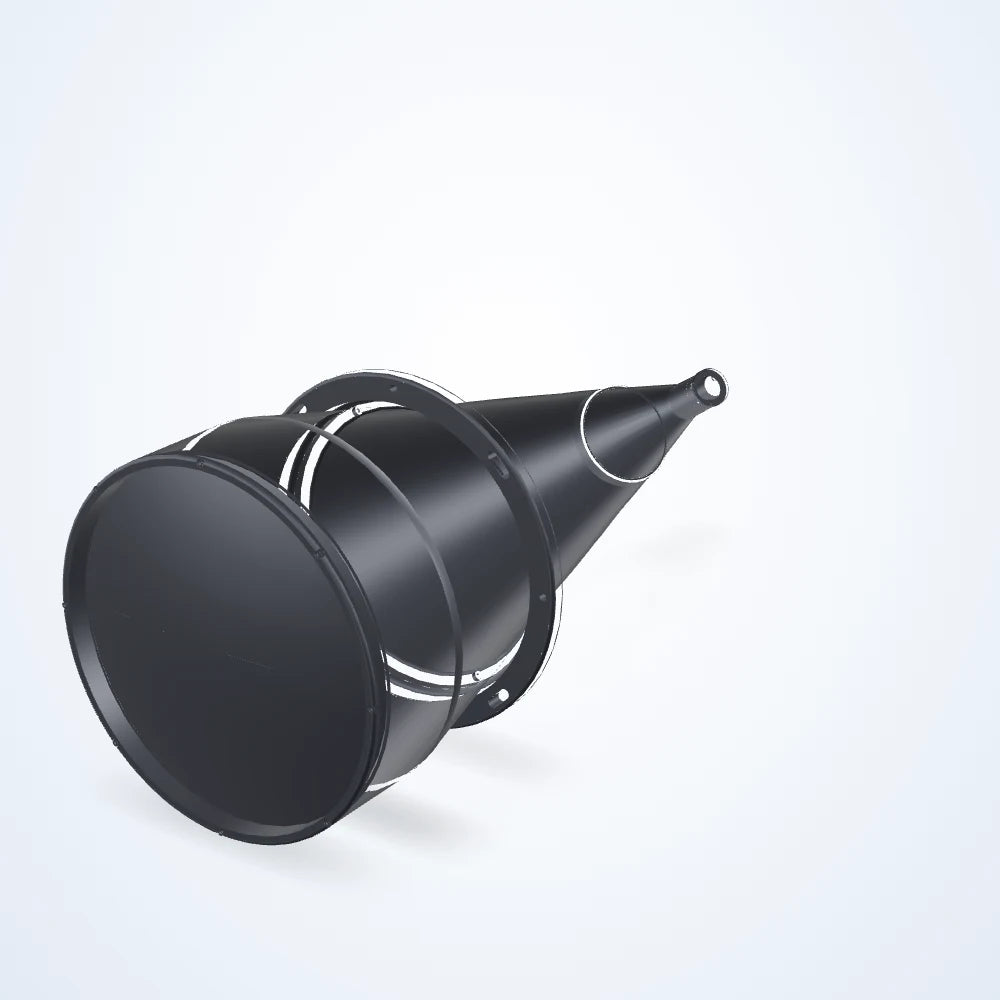

  • 0.037× telecentric lens, 2/3", C-mount (LS-TCL-0256) - view 2

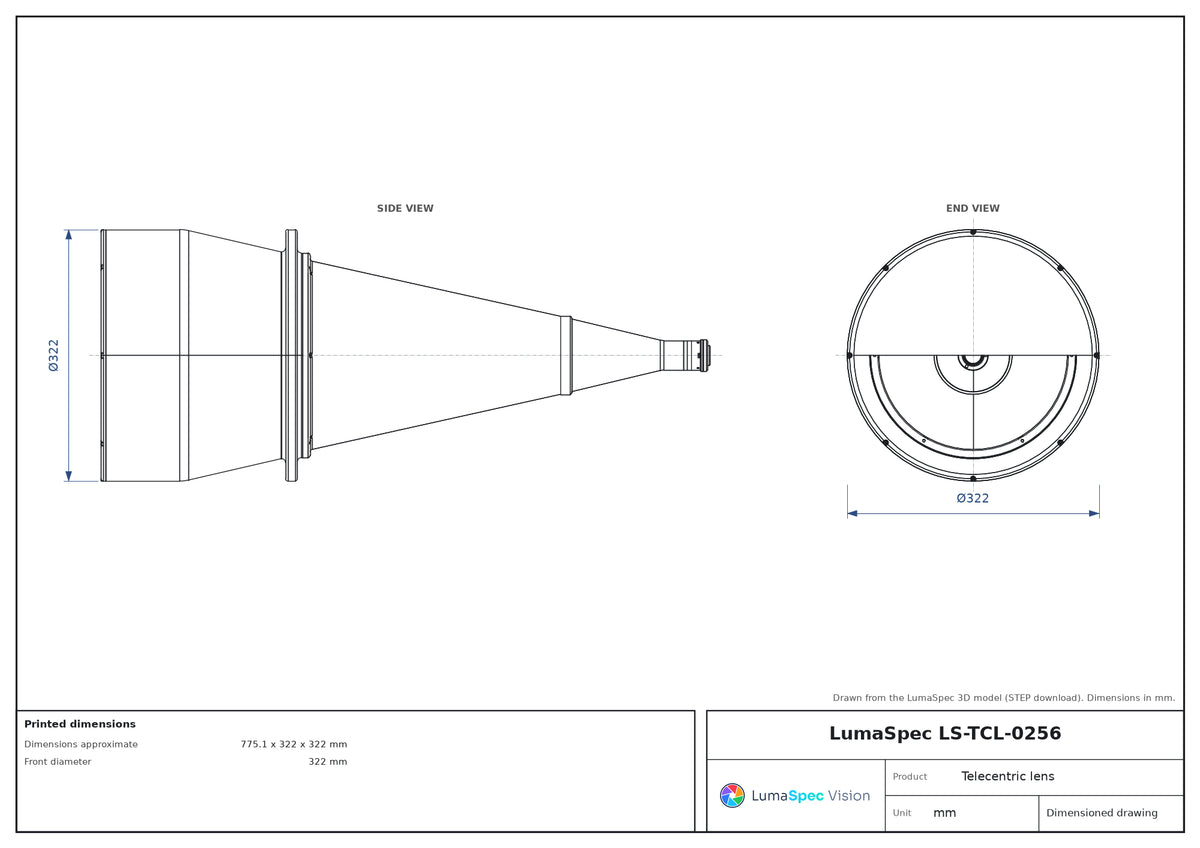

  • LS-TCL-0256 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.037× telecentric lens, 2/3", C-mount (LS-TCL-0256)

Model LS-TCL-0256

  • Magnification0.037×
  • MountC-mount
  • Sensor2/3"
  • Working distance492.8 mm
  • Resolution137 μm
$13,569.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 492.8 mm; depth of field 302.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0256
FOV @ 1/1.8″192.70 x 144.05 mm
Fov @ 1/2.0″172.97 x 129.73 mm
Fov @ 1/2.5″154.05 x 115.68 mm
FOV @ 1/2″172.97 x 129.73 mm
Fov @ 1/3.0″129.73 x 97.30 mm
FOV @ 2/3″229.73 x 191.62 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.037×
Working distance492.8 mm
Depth of field302.4 mm
Distortion maximum (%)< 0.08
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.03°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)137 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate775.1 x 322 x 322 mm
Front diameter322 mm
Weight18241 Grams
