0.079× telecentric lens, 2/3", C-mount (LS-TCL-0249)

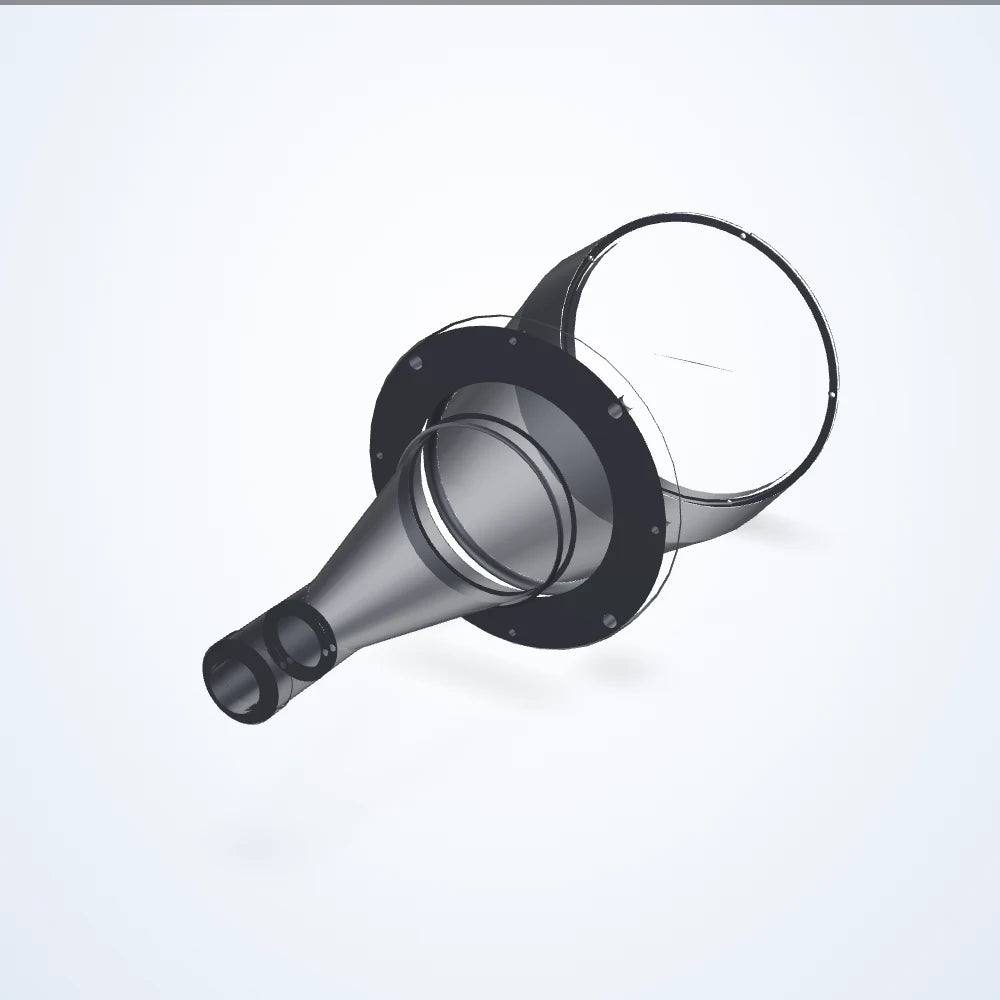

  • 0.079× telecentric lens, 2/3", C-mount (LS-TCL-0249)

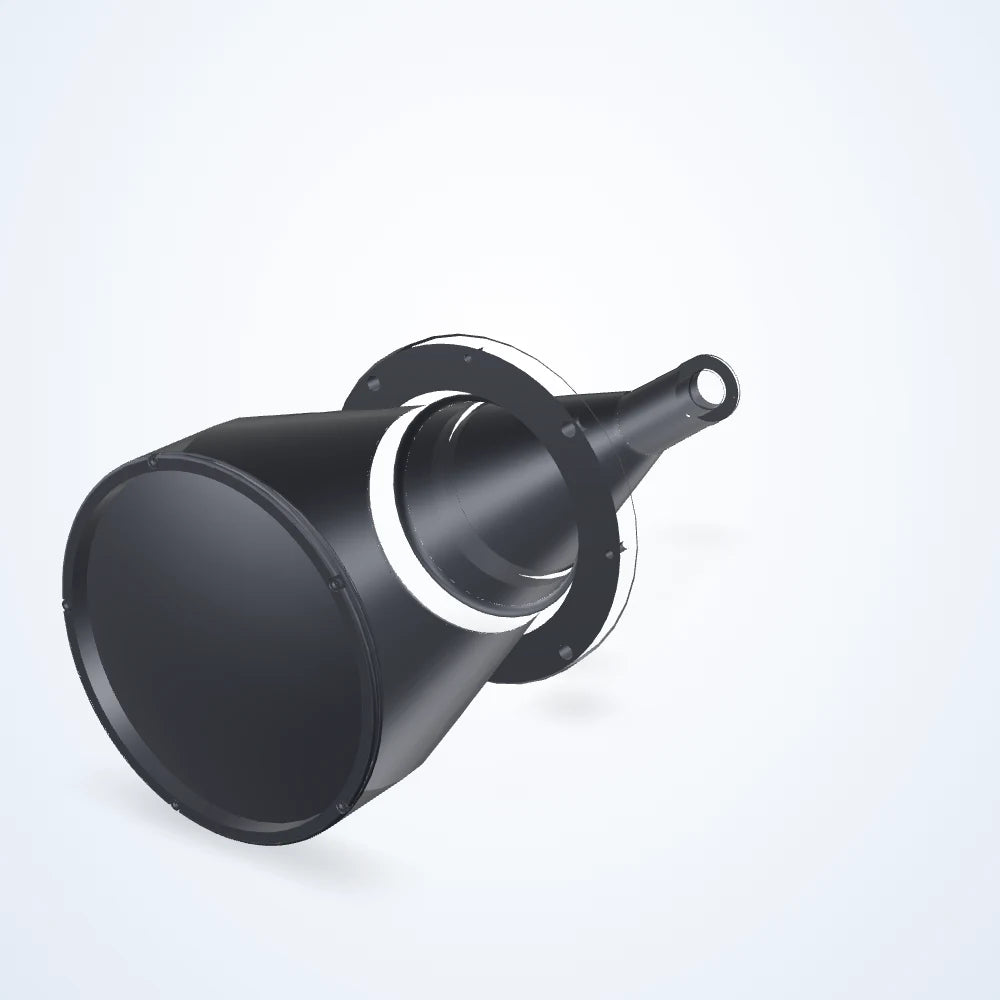

  • 0.079× telecentric lens, 2/3", C-mount (LS-TCL-0249) - view 2

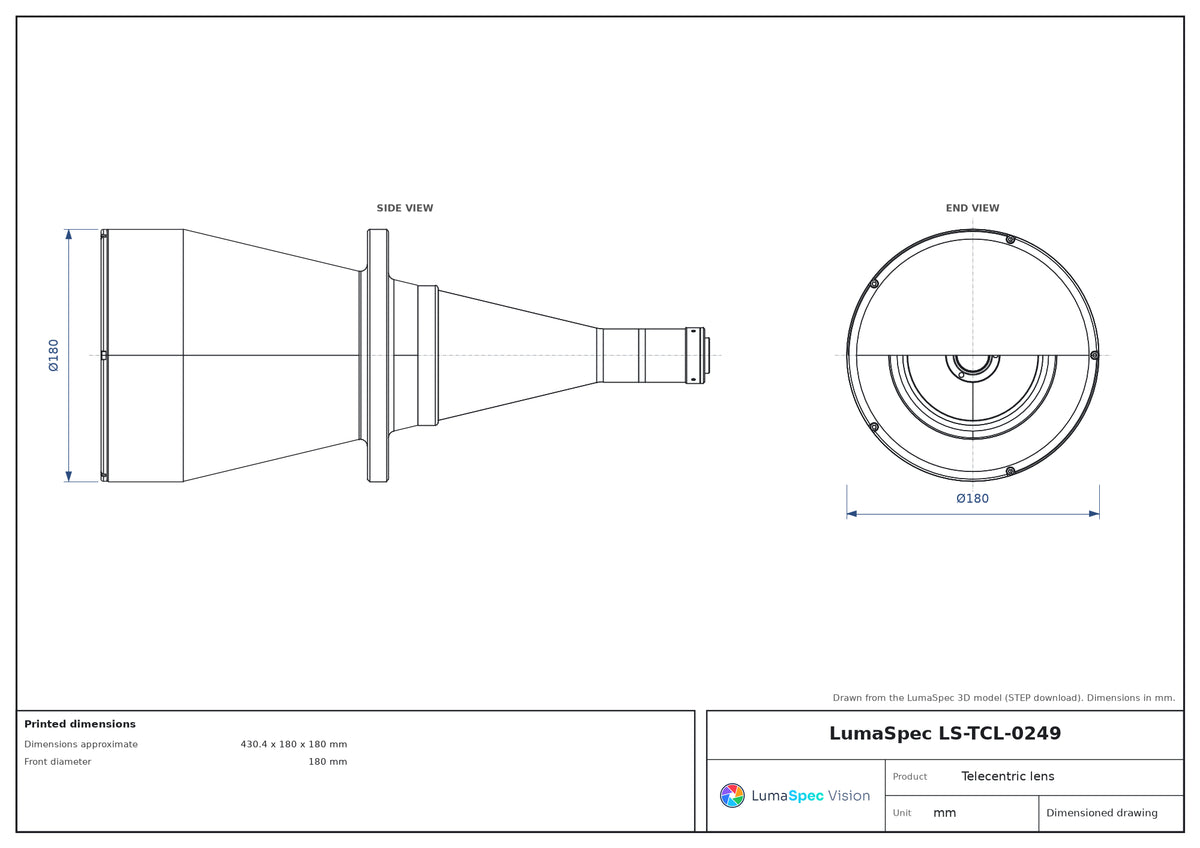

  • LS-TCL-0249 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.079× telecentric lens, 2/3", C-mount (LS-TCL-0249)

Model LS-TCL-0249

  • Magnification0.079×
  • MountC-mount
  • Sensor2/3"
  • Working distance334.5 mm
  • Resolution64 μm
$4,569.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 334.5 mm; depth of field 66.3 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0249
FOV @ 1/1.8″90.25 x 67.47 mm
Fov @ 1/2.0″81.01 x 60.76 mm
Fov @ 1/2.5″72.15 x 54.18 mm
FOV @ 1/2″81.01 x 60.76 mm
Fov @ 1/3.0″60.76 x 45.57 mm
FOV @ 2/3″107.59 x 89.75 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.079×
Working distance334.5 mm
Depth of field66.3 mm
Distortion maximum (%)< 0.07
Distortion typical (%)< 0.03
Filter threadNo Filter Threads
Image circle11 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.06°

Sensor and imaging

Sensor format2/3"
Resolution (pixel size)64 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate430.4 x 180 x 180 mm
Front diameter180 mm
Weight4734 Grams
