0.08× telecentric lens, 1/2", C-mount (LS-TCL-0142)

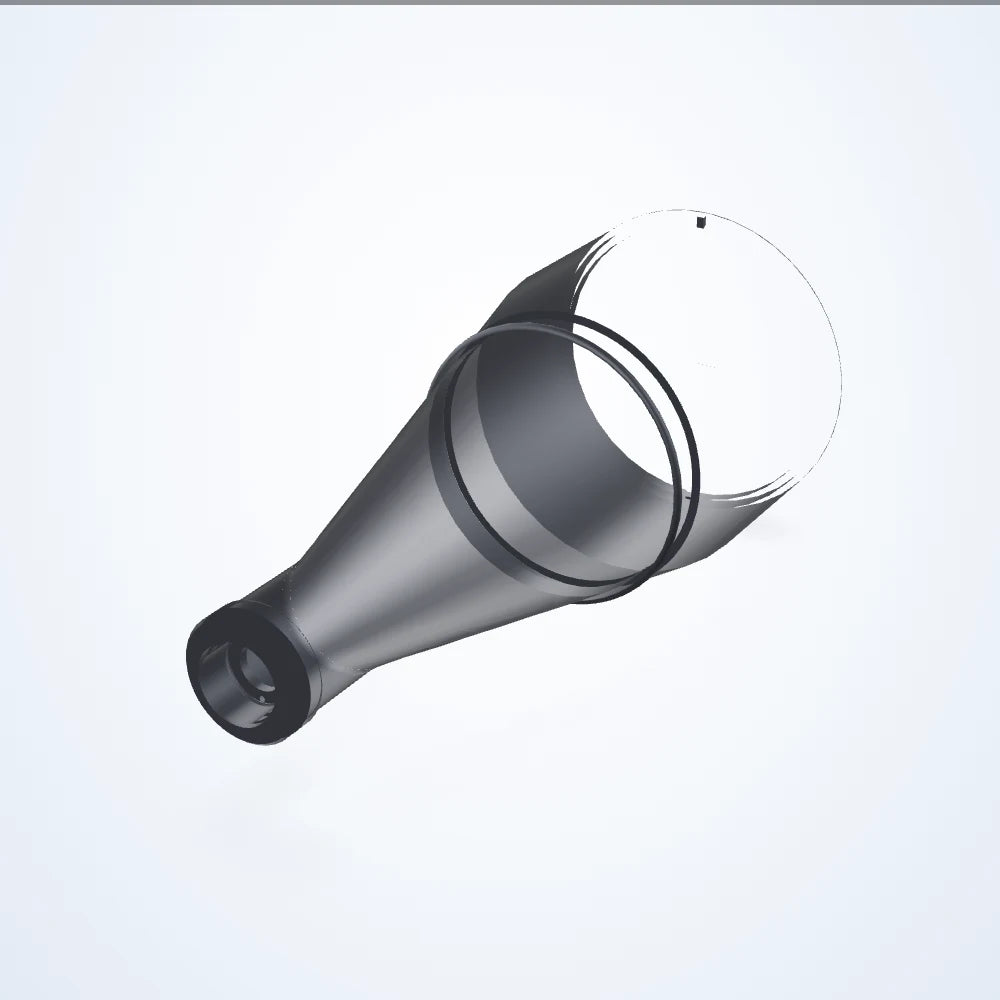

  • 0.08× telecentric lens, 1/2", C-mount (LS-TCL-0142)

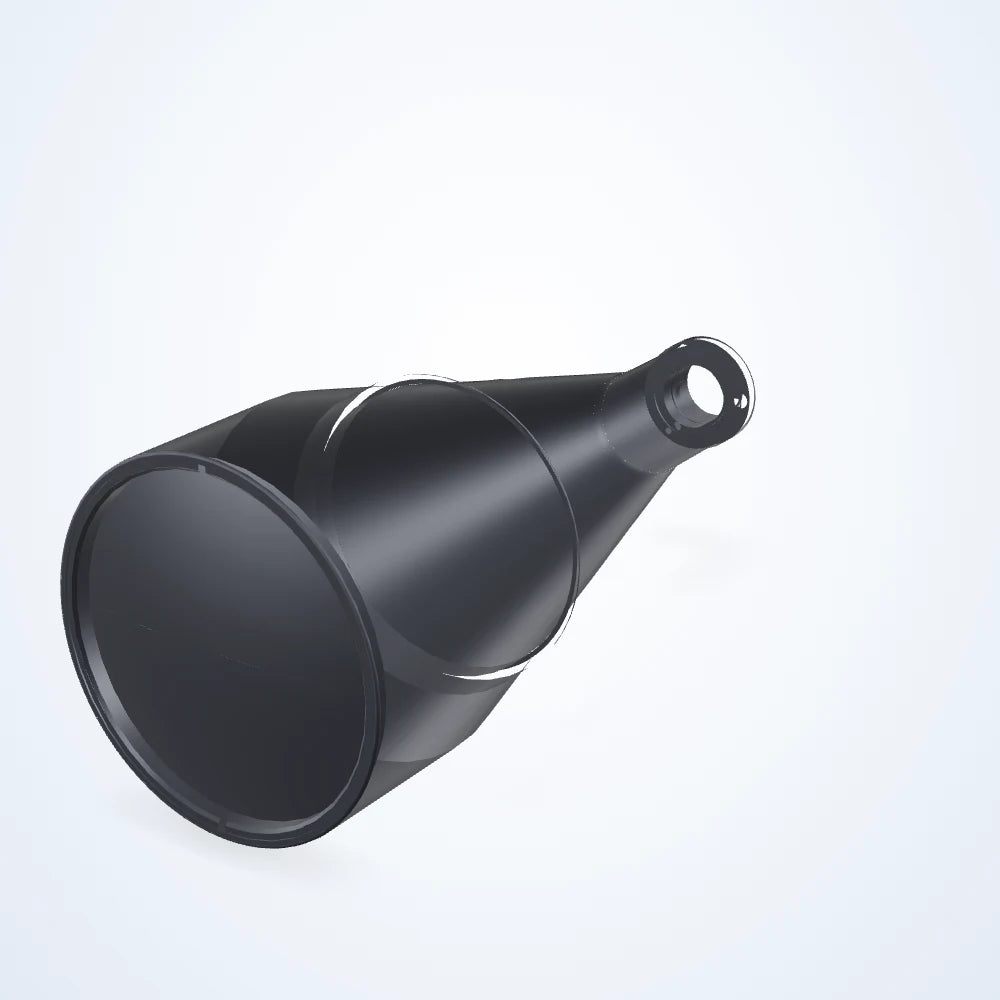

  • 0.08× telecentric lens, 1/2", C-mount (LS-TCL-0142) - view 2

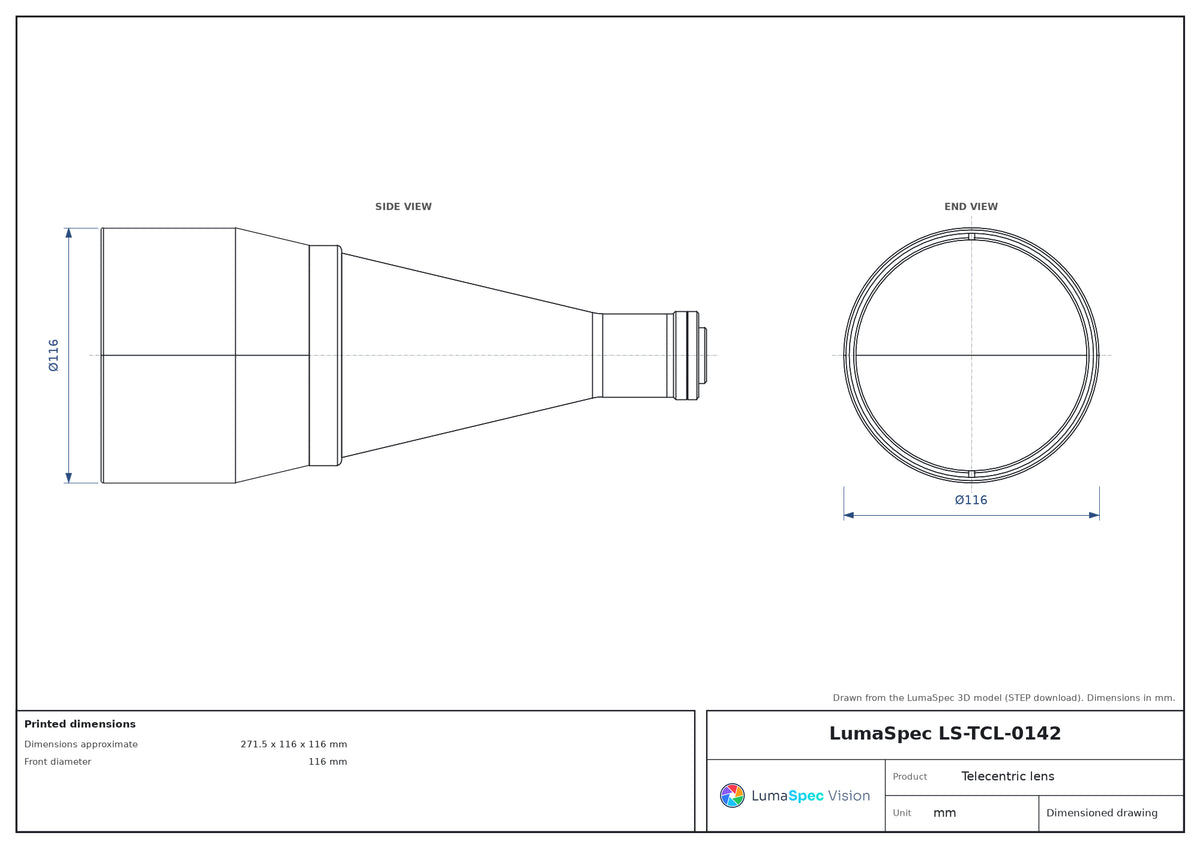

  • LS-TCL-0142 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.08× telecentric lens, 1/2", C-mount (LS-TCL-0142)

Model LS-TCL-0142

  • Magnification0.08×
  • MountC-mount
  • Sensor1/2"
  • Working distance226.7 mm
  • Resolution63 μm
$2,979.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.7 mm; depth of field 64.7 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0142
FOV @ 1/1.8″89.13 x 66.63 mm
Fov @ 1/2.0″80.00 x 60.00 mm
Fov @ 1/2.5″71.25 x 53.50 mm
FOV @ 1/2″80.00 x 60.00 mm
Fov @ 1/3.0″60.00 x 45.00 mm
FOV @ 2/3″88.6 mm ø
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.08×
Working distance226.7 mm
Depth of field64.7 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle8 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.03°

Sensor and imaging

Sensor format1/2"
Resolution (pixel size)63 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate271.5 x 116 x 116 mm
Front diameter116 mm
Weight1411 Grams
