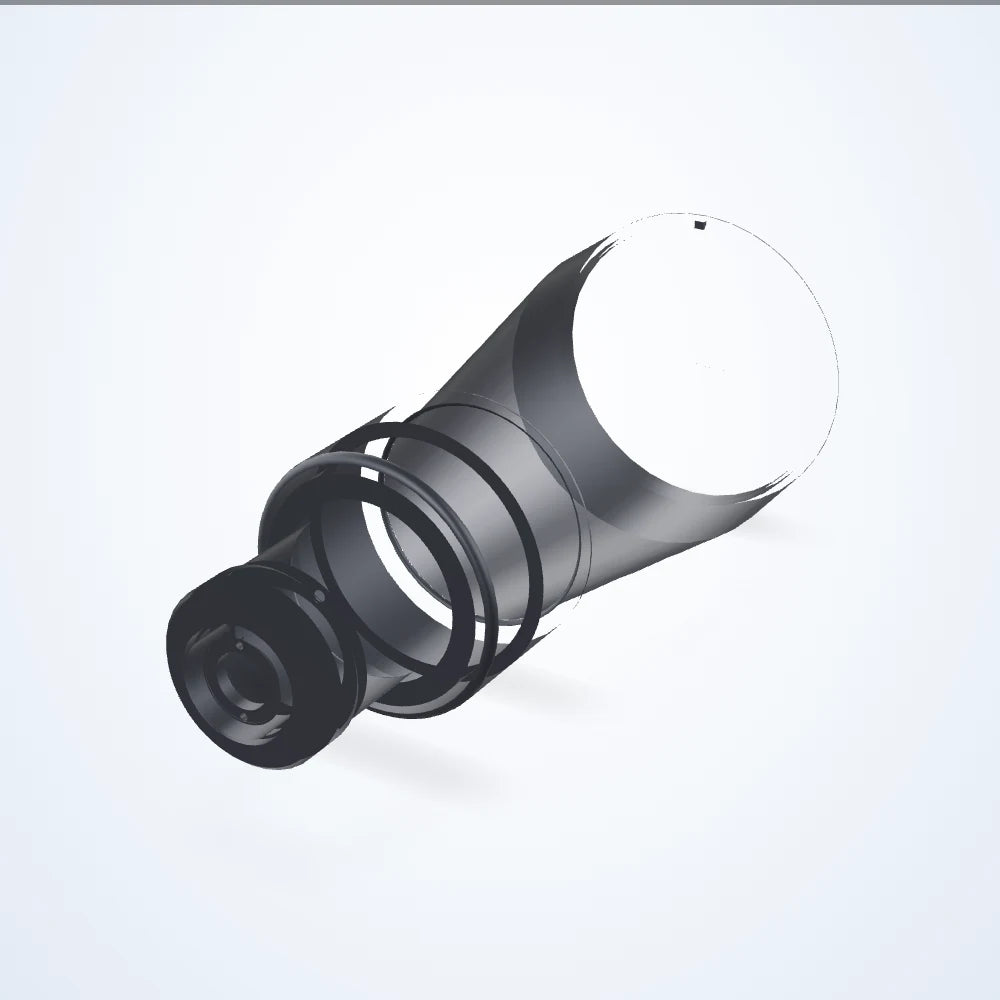

  • 0.084× telecentric lens, 1/3", C-mount (LS-TCL-0177)

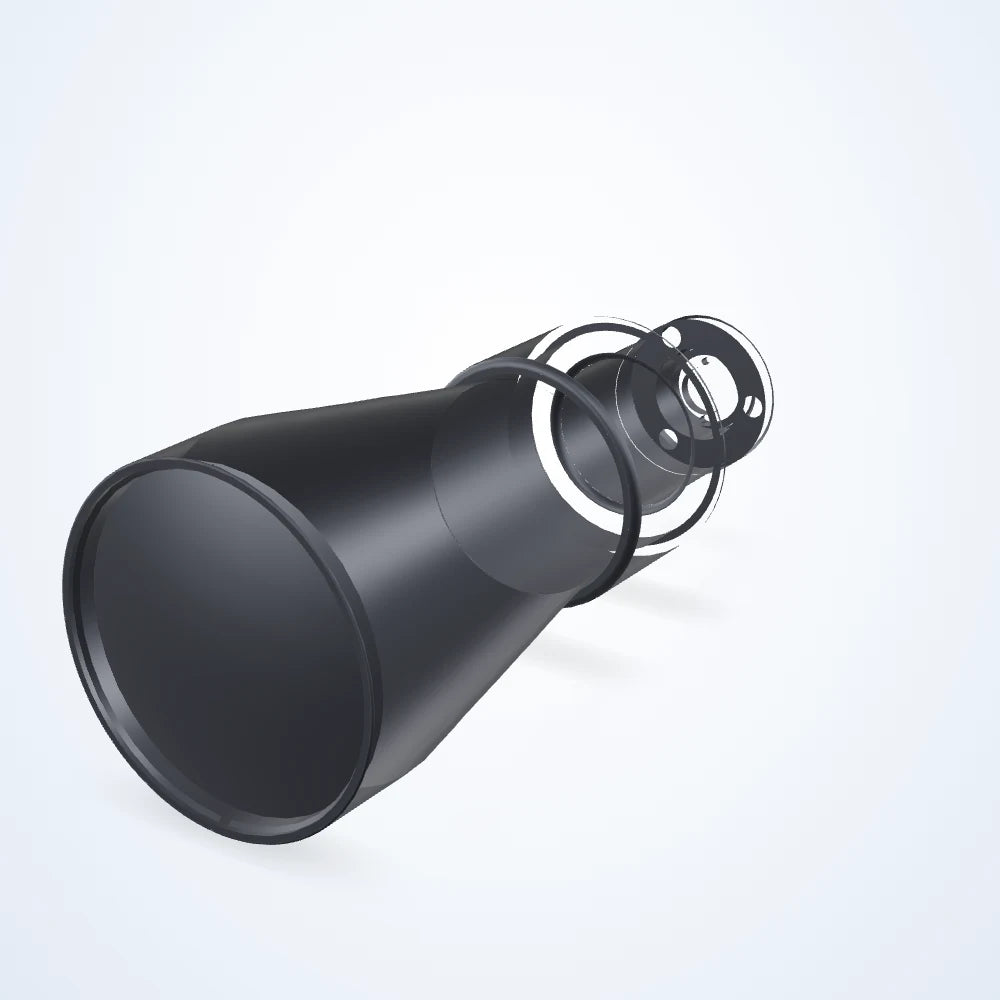

  • 0.084× telecentric lens, 1/3", C-mount (LS-TCL-0177) - view 2

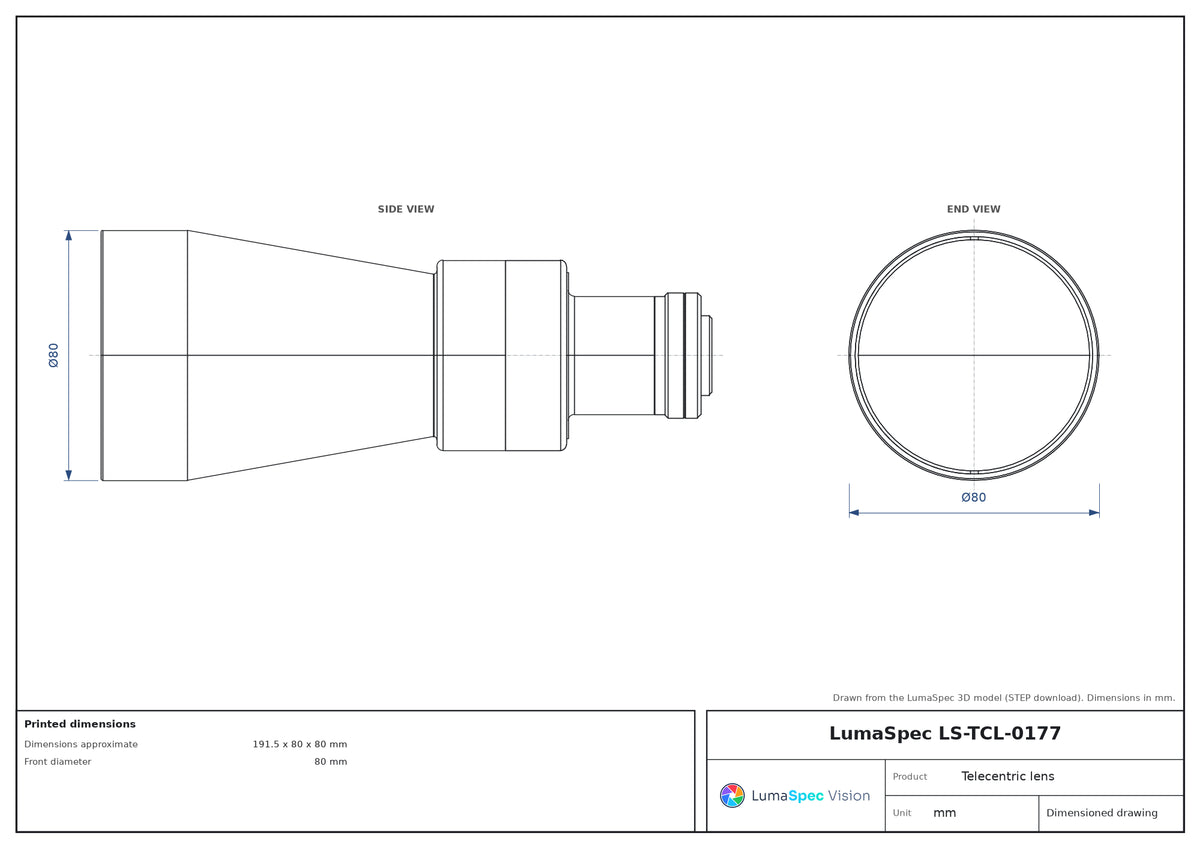

  • LS-TCL-0177 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.084× telecentric lens, 1/3", C-mount (LS-TCL-0177)

Model LS-TCL-0177

  • Magnification0.084×
  • MountC-mount
  • Sensor1/3"
  • Working distance157.8 mm
  • Resolution60 μm
$1,989.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 157.8 mm; depth of field 58.7 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0177
FOV @ 1/1.8″63.45 mm ø
Fov @ 1/2.0″57.14 mm ø
Fov @ 1/2.5″50.90 mm ø
FOV @ 1/2″57.14 mm ø
Fov @ 1/3.0″57.14 x 42.86 mm
FOV @ 2/3″71.4 mm ø
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.084×
Working distance157.8 mm
Depth of field58.7 mm
Distortion maximum (%)< 0.08
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle6 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format1/3"
Resolution (pixel size)60 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate191.5 x 80 x 80 mm
Front diameter80 mm
Weight819 Grams
