0.05× telecentric lens, 1/2", C-mount (LS-TCL-0180)

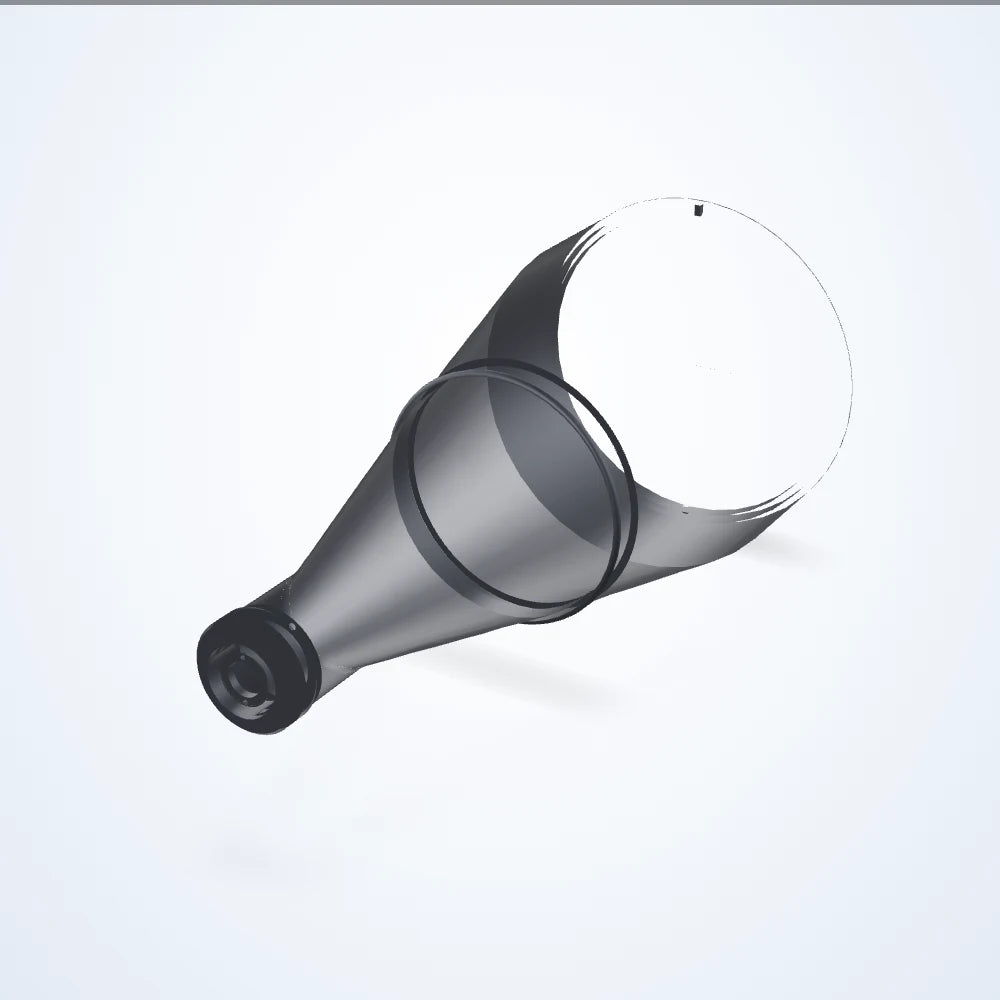

  • 0.05× telecentric lens, 1/2", C-mount (LS-TCL-0180)

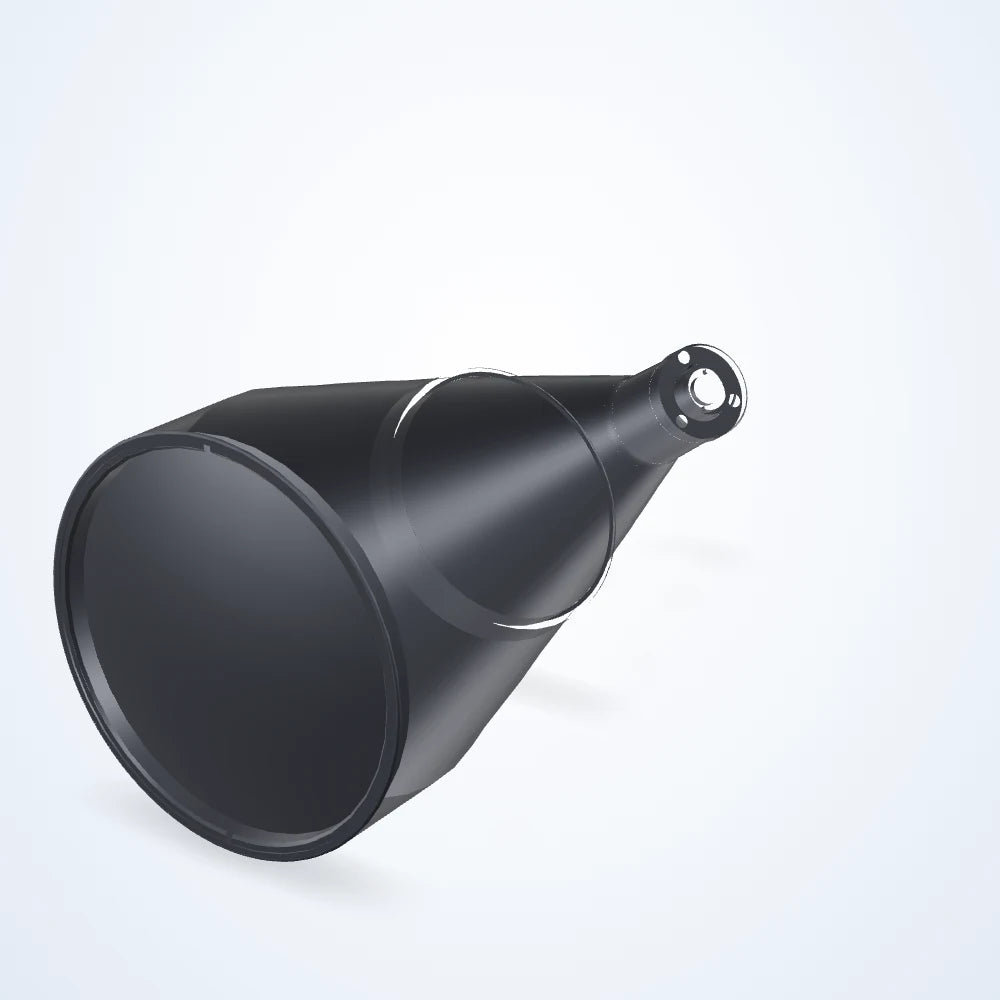

  • 0.05× telecentric lens, 1/2", C-mount (LS-TCL-0180) - view 2

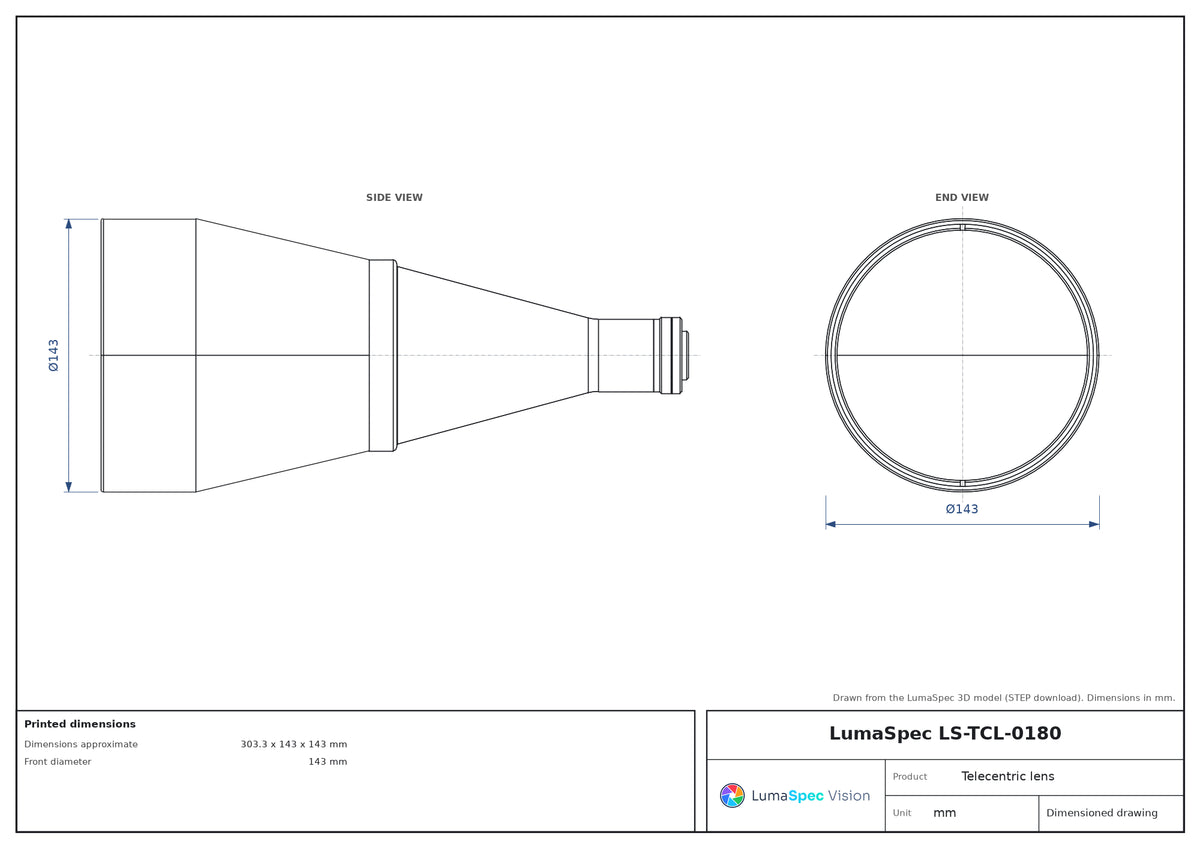

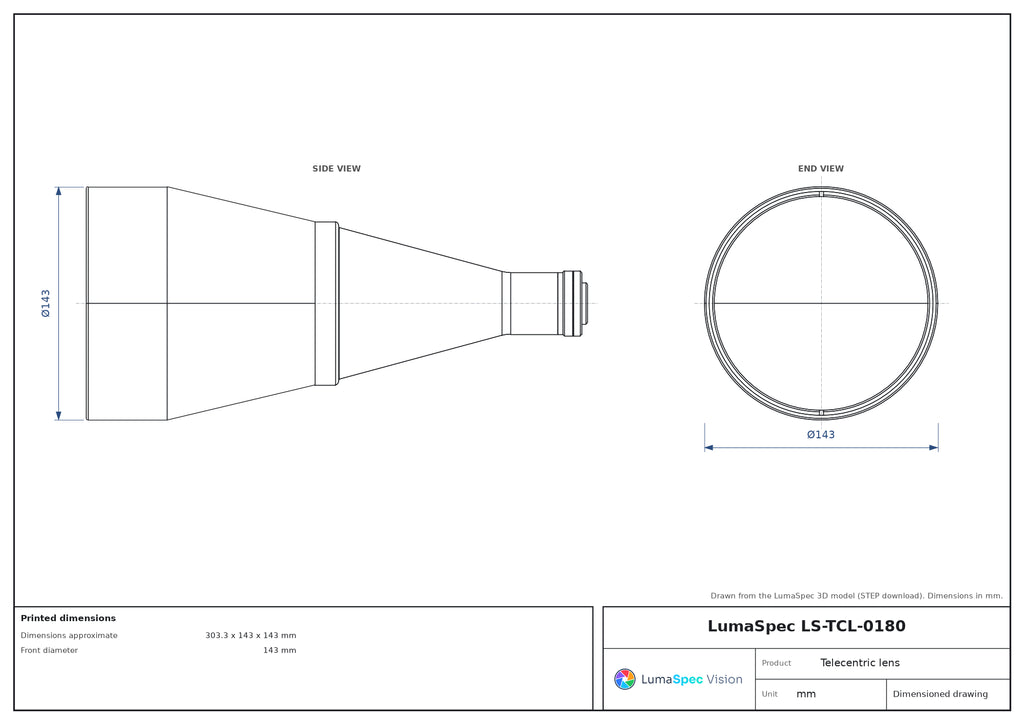

  • LS-TCL-0180 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.05× telecentric lens, 1/2", C-mount (LS-TCL-0180)

Model LS-TCL-0180

  • Magnification0.05×
  • MountC-mount
  • Sensor1/2"
  • Working distance279.6 mm
  • Resolution102 μm
$3,819.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 279.6 mm; depth of field 165.6 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0180
FOV @ 1/1.8″106.60 mm ø
Fov @ 1/2.0″96.00 mm ø
Fov @ 1/2.5″85.60 mm ø
FOV @ 1/2″96.00 mm ø
Fov @ 1/3.0″96.00 x 72.00 mm
FOV @ 2/3″120 mm ø
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.05×
Working distance279.6 mm
Depth of field165.6 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle6 mm
Telecentricity maximum0.08°
Telecentricity typical< 0.06°

Sensor and imaging

Sensor format1/2"
Resolution (pixel size)102 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate303.3 x 143 x 143 mm
Front diameter143 mm
Weight2197 Grams
