Telecentric lenses

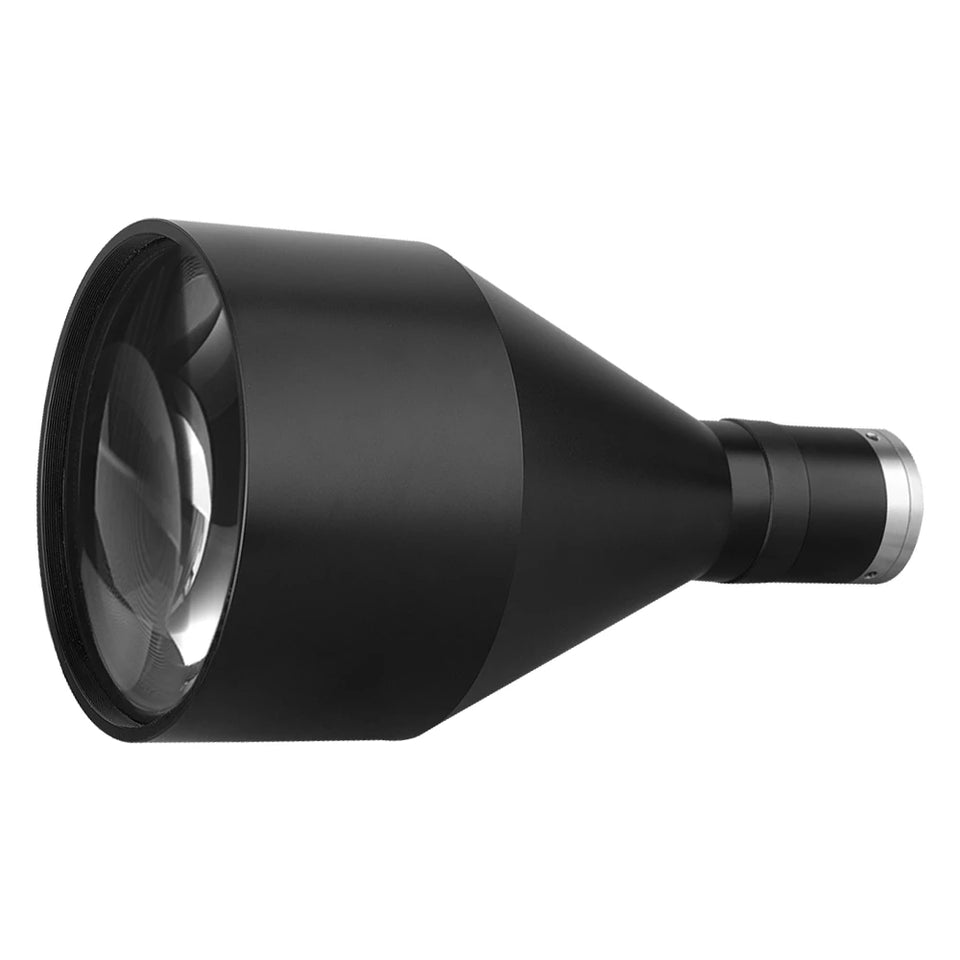

Bi-telecentric lens for 1/1.8" cameras - B variant (LS-TCL-S74)
- 15 models
- from $1,629.00
- Series LS-TCL-S74
The Bi-telecentric lens for 1/1.8" cameras - B variant (LS-TCL-S74) is a range of 15 telecentric lenses from LumaSpec Vision, from $1,629.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.037x, WD 410 mm, 1/1.8", C-mount, 0.053x, WD 318 mm, 1/1.8", C-mount, 0.06x, WD 301 mm, 1/1.8", C-mount, 0.066x, WD 288 mm, 1/1.8", C-mount, 0.081x, WD 251 mm, 1/1.8", C-mount, 0.091x, WD 238 mm, 1/1.8", C-mount, 0.1x, WD 208 mm, 1/1.8", C-mount, 0.113x, WD 230 mm, 1/1.8", C-mount, 0.125x, WD 178 mm, 1/1.8", C-mount, 0.14x, WD 159 mm, 1/1.8", C-mount, 0.141x, WD 187 mm, 1/1.8", C-mount, 0.161x, WD 138 mm, 1/1.8", C-mount, 0.187x, WD 128 mm, 1/1.8", C-mount, 0.215x, WD 118 mm, 1/1.8", C-mount, 0.25x, WD 111 mm, 1/1.8", C-mount
- Mount
- C-mount
- Image circle
- 8-11 mm
- Type
- Bi-telecentric
- Working distance
- 110-200 mm, 200 mm +
- Sensor format
- 1/1.8" - 1/1.56"
All 15 models in the Bi-telecentric lens for 1/1.8" cameras - B variant (LS-TCL-S74)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2521 | 0.25x, WD 111 mm, 1/1.8", C-mount | 111±2 | 5.3 | 122.2 | $1,629.00 | View |
| LS-TCL-2522 | 0.215x, WD 118 mm, 1/1.8", C-mount | 118±2 | 4.7 | 114 | $1,769.00 | View |
| LS-TCL-2523 | 0.187x, WD 128 mm, 1/1.8", C-mount | 128±2 | 5.3 | 128.4 | $1,899.00 | View |
| LS-TCL-2524 | 0.161x, WD 138 mm, 1/1.8", C-mount | 138±2 | 4.7 | 149.9 | $2,089.00 | View |
| LS-TCL-2525 | 0.141x, WD 187 mm, 1/1.8", C-mount | 187±2 | 5.3 | 138.4 | $2,269.00 | View |
| LS-TCL-2526 | 0.14x, WD 159 mm, 1/1.8", C-mount | 159±2 | 4.2 | 156.6 | $2,279.00 | View |
| LS-TCL-2527 | 0.125x, WD 178 mm, 1/1.8", C-mount | 178±2 | 4.7 | 181.3 | $2,459.00 | View |
| LS-TCL-2528 | 0.113x, WD 230 mm, 1/1.8", C-mount | 230±2 | 4.7 | 172.9 | $2,659.00 | View |
| LS-TCL-2529 | 0.1x, WD 208 mm, 1/1.8", C-mount | 208±2 | 4.7 | 207.2 | $2,879.00 | View |
| LS-TCL-2530 | 0.091x, WD 238 mm, 1/1.8", C-mount | 238±3 | 4.7 | 249.9 | $3,139.00 | View |
| LS-TCL-2531 | 0.081x, WD 251 mm, 1/1.8", C-mount | 251±3 | 4.2 | 247.8 | $3,419.00 | View |
| LS-TCL-2532 | 0.066x, WD 288 mm, 1/1.8", C-mount | 288±4 | 4.2 | 365.1 | $4,049.00 | View |
| LS-TCL-2533 | 0.06x, WD 301 mm, 1/1.8", C-mount | 301±4 | 4.2 | 326.4 | $4,359.00 | View |
| LS-TCL-2534 | 0.053x, WD 318 mm, 1/1.8", C-mount | 318±4 | 4.2 | 391.8 | $4,819.00 | View |
| LS-TCL-2535 | 0.037x, WD 410 mm, 1/1.8", C-mount | 410±5 | 4.2 | 544.9 | $6,659.00 | View |
