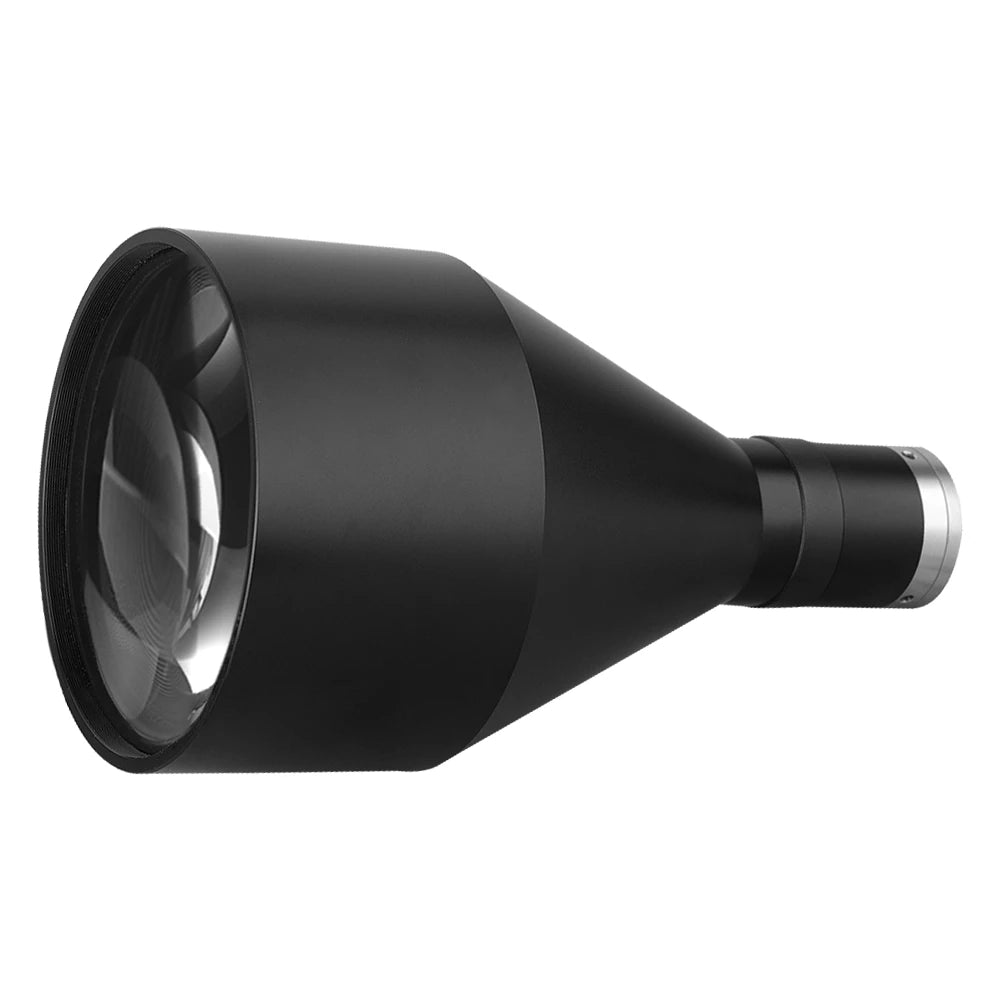

Bi-telecentric lens for 1/1.8" cameras, B variant, 0.14x, WD 159 mm, C-mount (LS-TCL-2526)
  • Bi-telecentric lens for 1/1.8" cameras, B variant, 0.14x, WD 159 mm, C-mount (LS-TCL-2526)

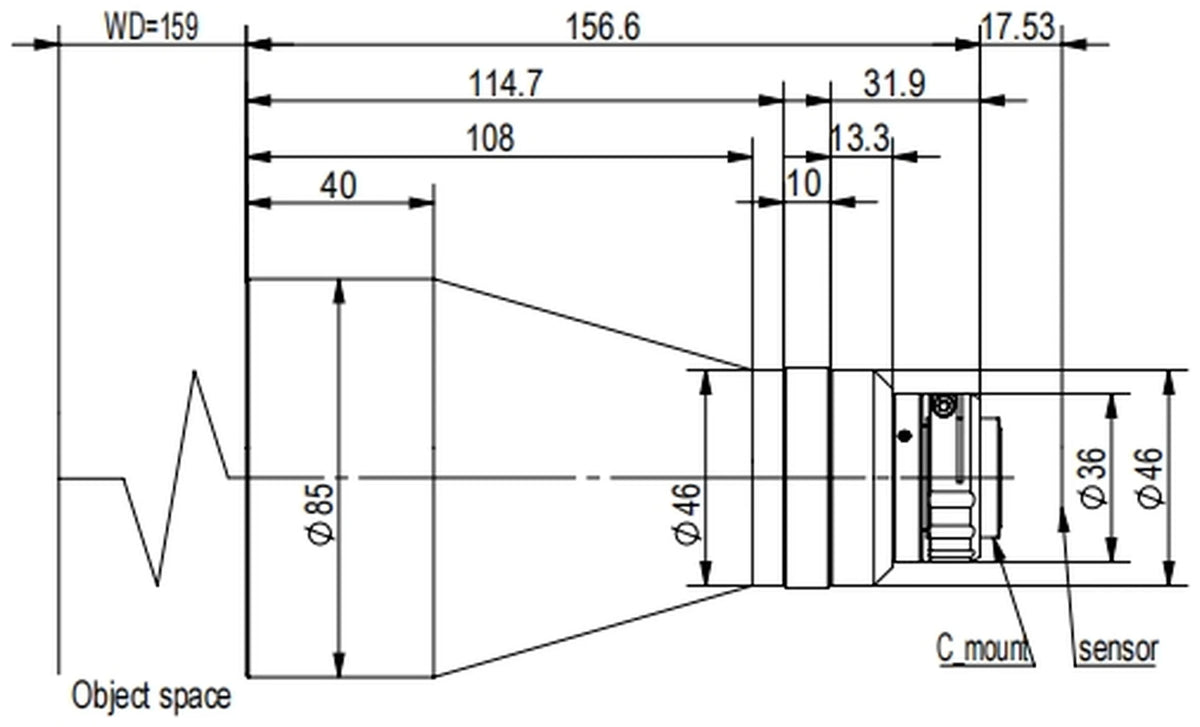

  • LS-TCL-2526 dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 1/1.8" cameras, B variant, 0.14x, WD 159 mm, C-mount (LS-TCL-2526)

Model LS-TCL-2526

  • MountC-mount
  • Sensor1/1.8"
  • Working distance159±2
  • Field of view51.1x38.8
$2,279.00

Ships in 2-3 weeks

1.61 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens for 1/1.8" cameras, B variant, 0.14x, WD 159 mm, C-mount (LS-TCL-2526)LS-TCL-2526

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-S74 series bi-telecentric lenses for 1/1.8" cameras. Matrix-design with extremely high imaging quality, standard FOV from 26 to 240 mm; each LS-TCL-S74 series lens comes with an imaging quality test report.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2526
Mag.0.140x
FOV64mm

Optics

Working distance (mm)159±2
Best Aperture (F/#)4.2
Telecentricity typical (max) (deg)0.1
Distortion typical (max) (%)0.1
MTF30 (lp/mm)>183
Depth of field (mm)±5
Field of view with ICX274/687 (7.16x5.44 sensor) (mm x mm)51.1x38.8
Field of view with EV76C570 (7.2x5.4 sensor) (mm x mm)51.4x38.5

Sensor and imaging

Max sensor size (dia. mm)9.0(1/1.8")

Interfaces and I/O

Length of I/O (mm)333.1

Mechanical

MountC
Length (mm)156.6
Weight (kg)1.08

Other models in the Bi-telecentric lens for 1/1.8" cameras - B variant (LS-TCL-S74) series

See all 15 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2521 0.25x, WD 111 mm, 1/1.8", C-mount $1,629.00 Ships in 2-3 weeks View
LS-TCL-2522 0.215x, WD 118 mm, 1/1.8", C-mount $1,769.00 Ships in 2-3 weeks View
LS-TCL-2523 0.187x, WD 128 mm, 1/1.8", C-mount $1,899.00 Ships in 2-3 weeks View
LS-TCL-2524 0.161x, WD 138 mm, 1/1.8", C-mount $2,089.00 Ships in 2-3 weeks View
LS-TCL-2525 0.141x, WD 187 mm, 1/1.8", C-mount $2,269.00 Ships in 2-3 weeks View
LS-TCL-2527 0.125x, WD 178 mm, 1/1.8", C-mount $2,459.00 Ships in 2-3 weeks View
LS-TCL-2528 0.113x, WD 230 mm, 1/1.8", C-mount $2,659.00 Ships in 2-3 weeks View
LS-TCL-2529 0.1x, WD 208 mm, 1/1.8", C-mount $2,879.00 Ships in 2-3 weeks View
LS-TCL-2530 0.091x, WD 238 mm, 1/1.8", C-mount $3,139.00 Ships in 2-3 weeks View
LS-TCL-2531 0.081x, WD 251 mm, 1/1.8", C-mount $3,419.00 Ships in 2-3 weeks View
LS-TCL-2532 0.066x, WD 288 mm, 1/1.8", C-mount $4,049.00 Ships in 2-3 weeks View
LS-TCL-2533 0.06x, WD 301 mm, 1/1.8", C-mount $4,359.00 Ships in 2-3 weeks View
LS-TCL-2534 0.053x, WD 318 mm, 1/1.8", C-mount $4,819.00 Ships in 2-3 weeks View
LS-TCL-2535 0.037x, WD 410 mm, 1/1.8", C-mount $6,659.00 Ships in 2-3 weeks View
