Telecentric lenses

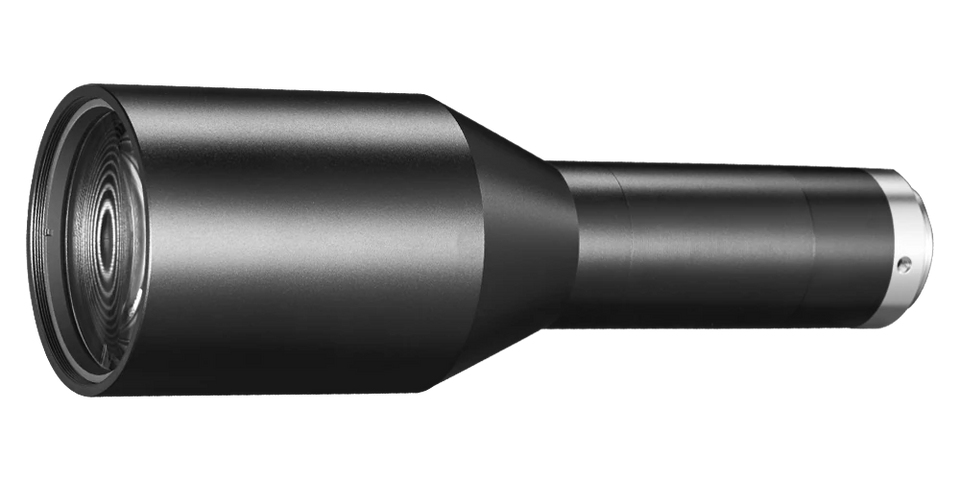

Large FOV objective telecentric lens (LS-TCL-S90)
- 11 models
- from $1,129.00
- Series LS-TCL-S90
The Large FOV objective telecentric lens (LS-TCL-S90) is a range of 11 telecentric lenses from LumaSpec Vision, from $1,129.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.22x, WD 200 mm, 1", C-Mount, 0.23x, WD 200 mm, 1", C-Mount, 0.345x, WD 220 mm, 1", C-Mount, 0.367x, WD 220 mm, 1", C-Mount, 0.6x, WD 110 mm, 1.1", C-Mount, 0.8x, WD 110 mm, 1.1", C-Mount, 1x, WD 110 mm, 1.1", C-Mount, 1.5x, WD 110 mm, 1.1", C-Mount
- Mount
- C-mount
- Image circle
- 16-22 mm
- Type
- Object-side telecentric
- Coaxial light
- Built-in coaxial light, No coaxial port
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- 110-200 mm, 200 mm +
- Sensor format
- 1", 1.1" - 1.2"
Features
- Strong mechanism design, with high shock resistance
- Excellent central and peripheral imaging
- It is widely used in high-precision visual positioning and other occasions.
All 11 models in the Large FOV objective telecentric lens (LS-TCL-S90)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2831 | 1x, WD 110 mm, 1.1", C-Mount | 1.1" | 1.0 | 110±2 | $1,129.00 | View |
| LS-TCL-2832 | 1x, WD 110 mm, 1.1", C-Mount | 1.1" | 1.0 | 110±2 | $1,129.00 | View |
| LS-TCL-2829 | 0.8x, WD 110 mm, 1.1", C-Mount | 1.1" | 0.8 | 110±2 | $1,209.00 | View |
| LS-TCL-2830 | 0.8x, WD 110 mm, 1.1", C-Mount | 1.1" | 0.8 | 110±2 | $1,209.00 | View |
| LS-TCL-2828 | 0.6x, WD 110 mm, 1.1", C-Mount | 1.1" | 0.6 | 110±2 | $1,349.00 | View |
| LS-TCL-2833 | 1.5x, WD 110 mm, 1.1", C-Mount | 1.1" | 1.5 | 110±2 | $1,469.00 | View |
| LS-TCL-2834 | 1.5x, WD 110 mm, 1.1", C-Mount | 1.1" | 1.5 | 110±2 | $1,469.00 | View |
| LS-TCL-2838 | 0.367x, WD 220 mm, 1", C-Mount | 1" | 0.367 | 220±2 | $1,689.00 | View |
| LS-TCL-2837 | 0.345x, WD 220 mm, 1", C-Mount | 1" | 0.345 | 220±2 | $1,749.00 | View |
| LS-TCL-2836 | 0.23x, WD 200 mm, 1", C-Mount | 1" | 0.23 | 200±2 | $2,219.00 | View |
| LS-TCL-2835 | 0.22x, WD 200 mm, 1", C-Mount | 1" | 0.22 | 200±2 | $2,289.00 | View |
