Telecentric lenses
Large FOV objective telecentric lens, 1x, WD 110 mm, 1.1", C-Mount (LS-TCL-2831)
Model LS-TCL-2831
- Magnification1.0x
- MountC-mount
- Sensor1.1"
- Working distance110±2
- ApertureF10
- Field of view14.1x10.3 mm (14.19x10.38 with IMX253)
$1,129.00
Ships in 2-3 weeks
0.63 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Perfect imaging paper, supporting tens of millions of pixels digital camera
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2831 |
|---|---|
| F.NO | F10 |
| N.A | 0.05 |
| FOV with 14.19x10.38 with IMX253 (mm x mm) | 14.1x10.3 |
| FOV (product parameters) | 18mm |
Optics
| Magnification (x) | 1.0 |
|---|---|
| Working distance (mm) | 110±2 |
| Telecentricity typical (max) (deg) | 0.1 |
| Distortion typical (max) (%) | 0.05 |
| MTF30 (lp/mm) | >100 |
| Depth of field (mm) | 0.45 |
| Coaxial light | No |
| Iris | No |
| Aperture | F10 |
| Field of view | 14.1x10.3 mm (14.19x10.38 with IMX253) |
Sensor and imaging
| Max sensor size (dia. mm) | 18.0(1.1") |
|---|---|
| Sensor format | 1.1" |

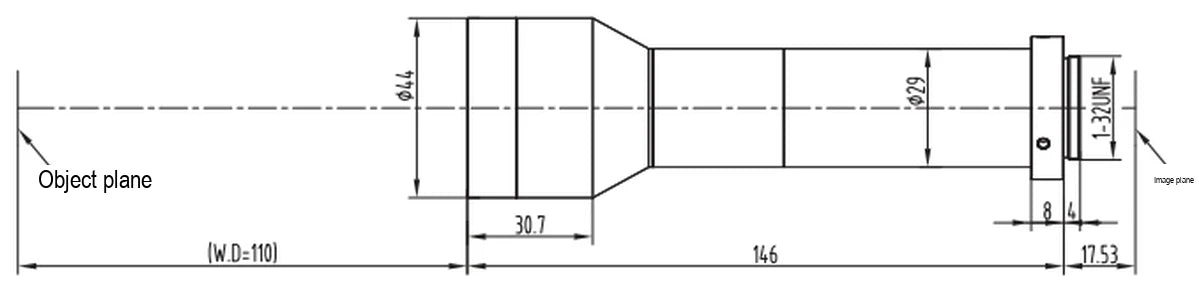

Mechanical
| Mount | C |
|---|---|
| Length (mm) | 146 |
| Shipping weight | 0.63 kg |
Other models in the Large FOV objective telecentric lens (LS-TCL-S90) series
See all 11 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-2832 | 1x, WD 110 mm, 1.1", C-Mount | $1,129.00 | Ships in 2-3 weeks | View |
| LS-TCL-2829 | 0.8x, WD 110 mm, 1.1", C-Mount | $1,209.00 | Ships in 2-3 weeks | View |
| LS-TCL-2830 | 0.8x, WD 110 mm, 1.1", C-Mount | $1,209.00 | Ships in 2-3 weeks | View |
| LS-TCL-2828 | 0.6x, WD 110 mm, 1.1", C-Mount | $1,349.00 | Ships in 2-3 weeks | View |
| LS-TCL-2833 | 1.5x, WD 110 mm, 1.1", C-Mount | $1,469.00 | Ships in 2-3 weeks | View |
| LS-TCL-2834 | 1.5x, WD 110 mm, 1.1", C-Mount | $1,469.00 | Ships in 2-3 weeks | View |
| LS-TCL-2838 | 0.367x, WD 220 mm, 1", C-Mount | $1,689.00 | Ships in 2-3 weeks | View |
| LS-TCL-2837 | 0.345x, WD 220 mm, 1", C-Mount | $1,749.00 | Ships in 2-3 weeks | View |
| LS-TCL-2836 | 0.23x, WD 200 mm, 1", C-Mount | $2,219.00 | Ships in 2-3 weeks | View |
| LS-TCL-2835 | 0.22x, WD 200 mm, 1", C-Mount | $2,289.00 | Ships in 2-3 weeks | View |
