Telecentric lenses
Large FOV objective telecentric lens, 0.23x, WD 200 mm, 1", C-Mount (LS-TCL-2836)
Model LS-TCL-2836
- Magnification0.23x
- MountC-mount
- Sensor1"
- Working distance200±2
- ApertureF8
- Field of view61.6x45.1 mm (14.19x10.38 with IMX253)
$2,219.00
Ships in 2-3 weeks
1.23 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Perfect imaging paper, supporting tens of millions of pixels digital camera
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2836 |
|---|---|
| F.NO | F8 |
| N.A | 0.014 |
| FOV with 14.19x10.38 with IMX253 (mm x mm) | 61.6x45.1 |
| Detector | 1.1" |
| FOV (product parameters) | 78.2mm |
Optics
| Magnification (x) | 0.23 |
|---|---|
| Working distance (mm) | 200±2 |
| Telecentricity typical (max) (deg) | 0.1 |
| Distortion typical (max) (%) | 0.05 |
| MTF30 (lp/mm) | >130 |
| Depth of field (mm) | 7.4 |
| Coaxial light | No |
| Iris | No |
| Aperture | F8 |
| Field of view | 61.6x45.1 mm (14.19x10.38 with IMX253) |
Sensor and imaging
| Max sensor size (dia. mm) | 18.0(1") |
|---|---|
| Sensor format | 1" |

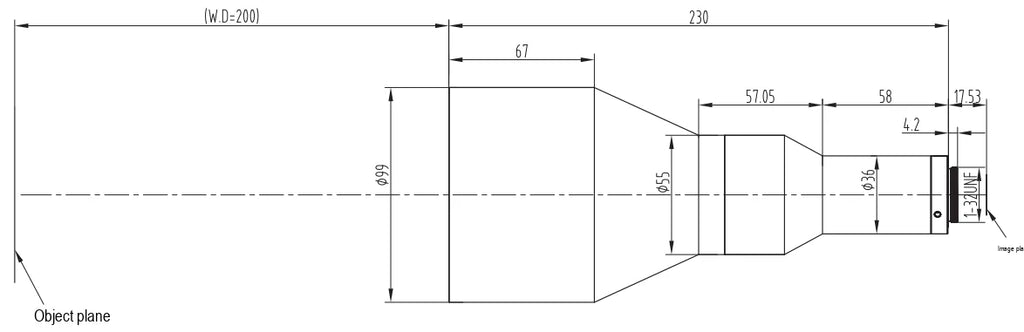

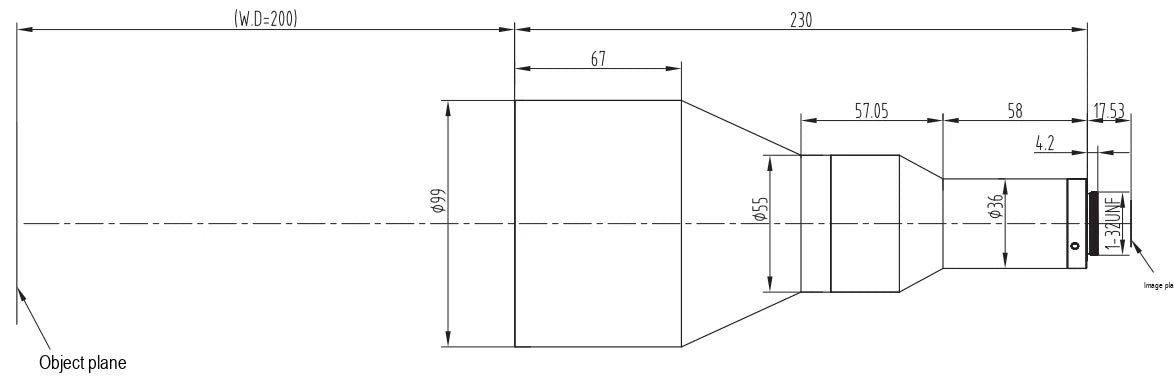

Mechanical
| Mount | C |
|---|---|
| Length (mm) | 230 |
| Shipping weight | 1.23 kg |
