Telecentric lenses

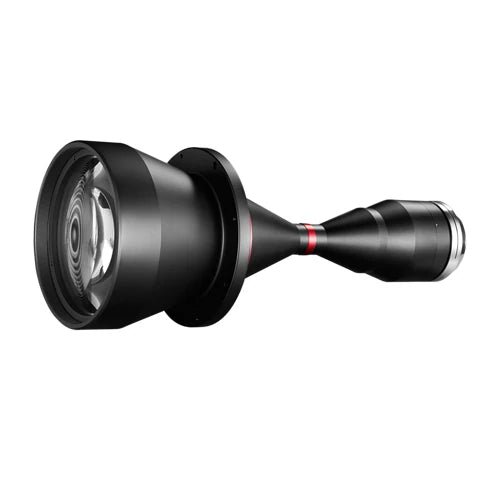

Bi-telecentric lens for 59mm cameras (LS-TCL-S79)
- 22 models
- from $1,799.00
- Series LS-TCL-S79
The Bi-telecentric lens for 59mm cameras (LS-TCL-S79) is a range of 22 telecentric lenses from LumaSpec Vision, from $1,799.00. It comes in 22 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.197x, WD 465 mm, M72-mount, 0.245x, WD 410 mm, 0.311x, WD 330 mm, M72-mount, 0.346x, WD 318 mm, 0.392x, WD 301 mm, 0.432x, WD 288 mm, 0.528x, WD 251 mm, 0.63x, WD 254 mm, 0.654x, WD 208 mm, M72-mount, 0.735x, WD 229 mm, 0.735x, WD 230 mm, M72-mount, 0.817x, WD 178 mm, 0.916x, WD 159 mm, 0.92x, WD 187 mm, 1x, WD 85 mm, M72-mount, 1.051x, WD 138 mm and 6 more
- Mount
- F-mount
- Image circle
- 22-30 mm, 30-45 mm, 45-60 mm, 60-90 mm
- Type
- Bi-telecentric
- Working distance
- Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 4/3" - APS-C, APS-H / Full frame, Medium / large
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 22 models in the Bi-telecentric lens for 59mm cameras (LS-TCL-S79)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2607 | 1.401x, WD 118 mm, M72-mount | 118±2 | 23 | $1,799.00 | View | |
| LS-TCL-2603 | 2.264x, WD 72 mm | 2.264 | 72±2 | 30.8 | $1,849.00 | View |
| LS-TCL-2605 | 1.626x, WD 111 mm | 1.626 | 111±2 | 22 | $1,849.00 | View |
| LS-TCL-2604 | 2.03x, WD 45 mm, M72-mount | 2.030 | 45±1 | 13.9 | $1,849.00 | View |
| LS-TCL-2608 | 1.256x, WD 128 mm | 1.256 | 128±2 | 21 | $1,929.00 | View |
| LS-TCL-2609 | 1.051x, WD 138 mm | 1.051 | 138±2 | 15 | $2,119.00 | View |
| LS-TCL-2610 | 1x, WD 85 mm, M72-mount | 1.000 | 85±1 | 8.7 | $2,199.00 | View |
| LS-TCL-2606 | 1.396x, WD 119 mm | 1.396 | 119±2 | $2,259.00 | View | |
| LS-TCL-2611 | 0.92x, WD 187 mm | 0.920 | 187±2 | 25 | $2,299.00 | View |
| LS-TCL-2612 | 0.916x, WD 159 mm | 0.916 | 159±2 | 12 | $2,309.00 | View |
| LS-TCL-2613 | 0.817x, WD 178 mm | 0.817 | 178±2 | 13.8 | $2,489.00 | View |
| LS-TCL-2614 | 0.735x, WD 229 mm | 0.735 | 229±2 | $2,689.00 | View | |
| LS-TCL-2615 | 0.735x, WD 230 mm, M72-mount | 230±2 | 17.3 | $2,689.00 | View | |
| LS-TCL-2616 | 0.654x, WD 208 mm, M72-mount | 0.656 | 208±2 | 15.3 | $2,919.00 | View |
| LS-TCL-2617 | 0.63x, WD 254 mm | 0.630 | 254±3 | $3,019.00 | View | |
| LS-TCL-2618 | 0.528x, WD 251 mm | 0.528 | 251±3 | $3,449.00 | View | |
| LS-TCL-2619 | 0.432x, WD 288 mm | 0.432 | 288±4 | 10 | $4,079.00 | View |
| LS-TCL-2620 | 0.392x, WD 301 mm | 0.392 | 301±4 | 19.8 | $4,389.00 | View |
| LS-TCL-2621 | 0.346x, WD 318 mm | 0.346 | 318±4 | 8.5 | $4,859.00 | View |
| LS-TCL-2622 | 0.311x, WD 330 mm, M72-mount | 0.311 | 330±5 | 13.9 | $5,409.00 | View |
| LS-TCL-2623 | 0.245x, WD 410 mm | 0.245 | 410±5 | 11.6 | $6,689.00 | View |
| LS-TCL-2624 | 0.197x, WD 465 mm, M72-mount | 0.197 | 465±6 | 9 | $8,719.00quote | View |
