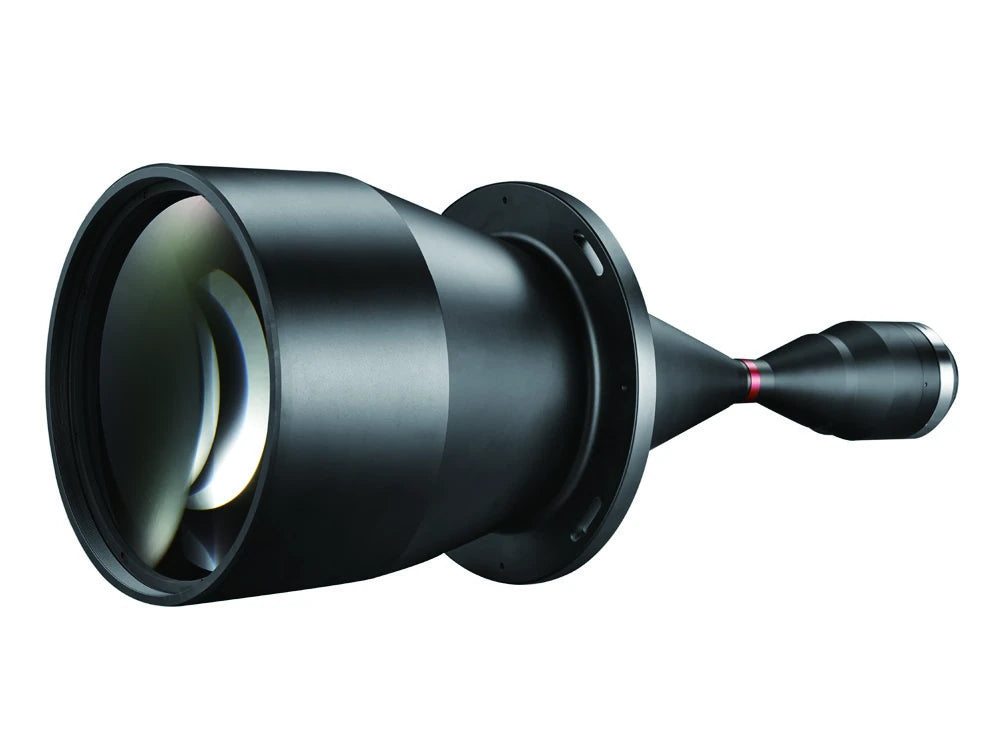

Bi-telecentric lens for 59mm cameras, 0.197x, WD 465 mm, M72-mount (LS-TCL-2624)
  • Bi-telecentric lens for 59mm cameras, 0.197x, WD 465 mm, M72-mount (LS-TCL-2624)

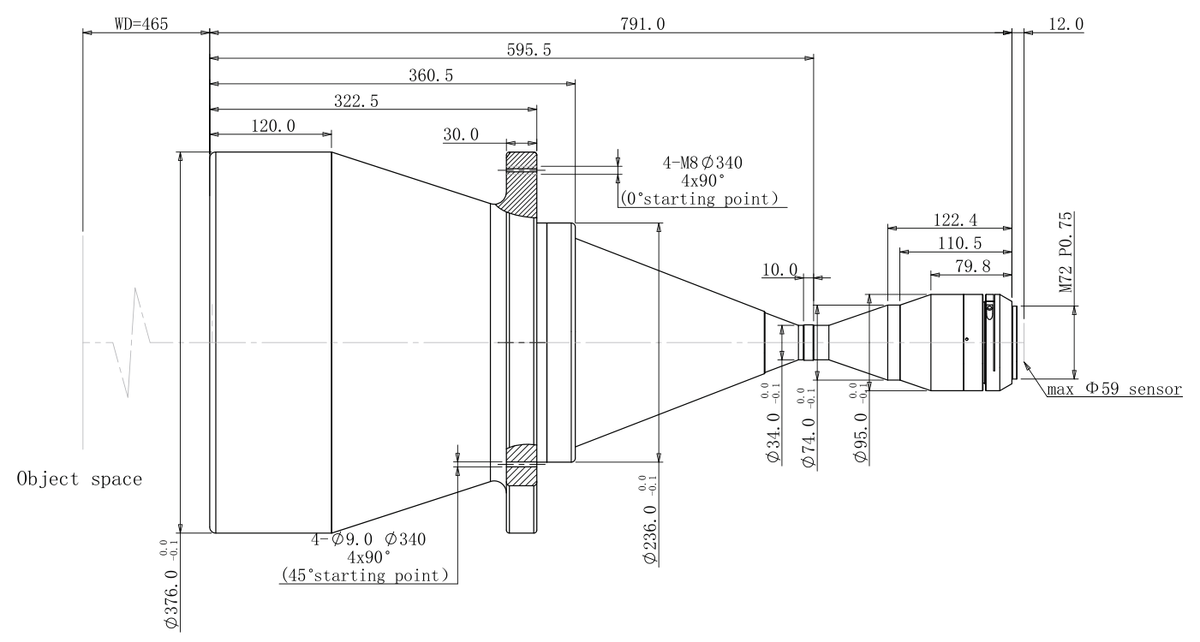

  • LS-TCL-2624 dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 59mm cameras, 0.197x, WD 465 mm, M72-mount (LS-TCL-2624)

Model LS-TCL-2624

  • Magnification0.197x
  • MountF-mount
  • Working distance465±6
  • Field of view300
$8,719.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

67.3 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Bi-telecentric lens for 59mm cameras, 0.197x, WD 465 mm, M72-mount (LS-TCL-2624)LS-TCL-2624

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-telecentric lens series for sensors up to 16K line scan (59 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2624

Optics

Distortion (% max)<0.1
Telecentricity (deg max)<0.1
Magnification (x)0.197
Object field of view (dia. mm)300
Working distance (mm)465±6
Best Aperture (F/#)9
MTF30 (lp/mm)>95
Depth of field (mm)±20.6@F20
Field of view with KAI-47051 (48.7×29.0 sensor) (mm x mm)247.2x147.2
Field of view with 16K×3.5/3.53um (57.4mm sensor) (mm x mm)291.4mm
Field of view with 8K×7um/7.04um (57.4mm sensor) (mm x mm)291.4mm
Compatible telecentric led lightingLS-CLM-0092

Sensor and imaging

Max sensor size (dia. mm)59(16K)

Interfaces and I/O

Length of I/O (mm)1268±6

Mechanical

MountF-Mount/Other
Length (mm)791.0
Weight (kg)48.0

Other models in the Bi-telecentric lens for 59mm cameras (LS-TCL-S79) series

See all 22 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2607 1.401x, WD 118 mm, M72-mount $1,799.00 Ships in 2-3 weeks View
LS-TCL-2603 2.264x, WD 72 mm $1,849.00 Ships in 2-3 weeks View
LS-TCL-2605 1.626x, WD 111 mm $1,849.00 Ships in 2-3 weeks View
LS-TCL-2604 2.03x, WD 45 mm, M72-mount $1,849.00 Ships in 2-3 weeks View
LS-TCL-2608 1.256x, WD 128 mm $1,929.00 Ships in 2-3 weeks View
LS-TCL-2609 1.051x, WD 138 mm $2,119.00 Ships in 2-3 weeks View
LS-TCL-2610 1x, WD 85 mm, M72-mount $2,199.00 Ships in 2-3 weeks View
LS-TCL-2606 1.396x, WD 119 mm $2,259.00 Ships in 2-3 weeks View
LS-TCL-2611 0.92x, WD 187 mm $2,299.00 Ships in 2-3 weeks View
LS-TCL-2612 0.916x, WD 159 mm $2,309.00 Ships in 2-3 weeks View
LS-TCL-2613 0.817x, WD 178 mm $2,489.00 Ships in 2-3 weeks View
LS-TCL-2614 0.735x, WD 229 mm $2,689.00 Ships in 2-3 weeks View
LS-TCL-2615 0.735x, WD 230 mm, M72-mount $2,689.00 Ships in 2-3 weeks View
LS-TCL-2616 0.654x, WD 208 mm, M72-mount $2,919.00 Ships in 2-3 weeks View
LS-TCL-2617 0.63x, WD 254 mm $3,019.00 Ships in 2-3 weeks View
LS-TCL-2618 0.528x, WD 251 mm $3,449.00 Ships in 2-3 weeks View
LS-TCL-2619 0.432x, WD 288 mm $4,079.00 Ships in 2-3 weeks View
LS-TCL-2620 0.392x, WD 301 mm $4,389.00 Ships in 2-3 weeks View
LS-TCL-2621 0.346x, WD 318 mm $4,859.00 Ships in 2-3 weeks View
LS-TCL-2622 0.311x, WD 330 mm, M72-mount $5,409.00 Ships in 2-3 weeks View
LS-TCL-2623 0.245x, WD 410 mm $6,689.00 Ships in 2-3 weeks View
