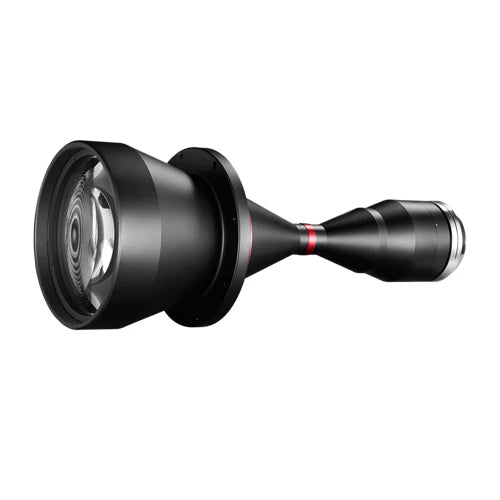

Bi-telecentric lens for 59mm cameras, 0.432x, WD 288 mm (LS-TCL-2619)
  • Bi-telecentric lens for 59mm cameras, 0.432x, WD 288 mm (LS-TCL-2619)

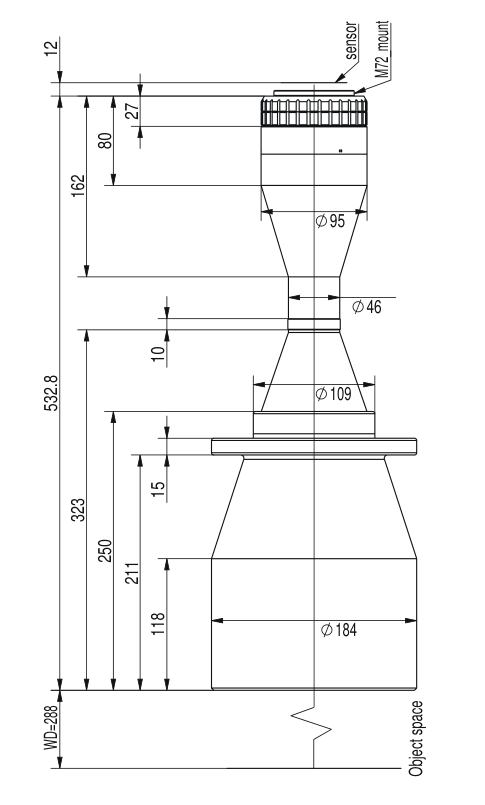

  • LS-TCL-2619 dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 59mm cameras, 0.432x, WD 288 mm (LS-TCL-2619)

Model LS-TCL-2619

  • Magnification0.432x
  • MountF-mount
  • SensorLarge format
  • Working distance288±4
  • Field of view132.8mm
$4,079.00

Ships in 2-3 weeks

11.58 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens for 59mm cameras, 0.432x, WD 288 mm (LS-TCL-2619)LS-TCL-2619

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-telecentric lens series for sensors up to 16K line scan (59 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2619

Optics

Distortion (% max)<0.1
Telecentricity (deg max)<0.1
F/#10
MTF30 (lp/mm)>100
Field of view on 16Kx3.5/3.53μm(57.4mm) (mm)132.8mm
Field of view on 8Kx7um/7.04μm(57.4mm) (mm)132.8mm
Magnification (x)0.432
Working distance (mm)288±4
Depth of field (mm)±3.5
Field of view (dia. mm)136
Object-to-image distance I/O (mm)832.8
Field of view with 16Kx3.5/3.53μm(57.4mm)132.8mm
Field of view with 8Kx7um/7.04μm(57.4mm)132.8mm
Best Aperture (F/#)10
Field of view with Linescan-16K (57.34mm sensor) (mm x mm)132.7

Sensor and imaging

Max sensor size (dia. mm)59(16K)
Sensor format59 mm

Mechanical

MountF-Mount/Other
Length (mm)532.8
Weight (kg)8.15
MountM72

Other models in the Bi-telecentric lens for 59mm cameras (LS-TCL-S79) series

See all 22 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2607 1.401x, WD 118 mm, M72-mount $1,799.00 Ships in 2-3 weeks View
LS-TCL-2603 2.264x, WD 72 mm $1,849.00 Ships in 2-3 weeks View
LS-TCL-2605 1.626x, WD 111 mm $1,849.00 Ships in 2-3 weeks View
LS-TCL-2604 2.03x, WD 45 mm, M72-mount $1,849.00 Ships in 2-3 weeks View
LS-TCL-2608 1.256x, WD 128 mm $1,929.00 Ships in 2-3 weeks View
LS-TCL-2609 1.051x, WD 138 mm $2,119.00 Ships in 2-3 weeks View
LS-TCL-2610 1x, WD 85 mm, M72-mount $2,199.00 Ships in 2-3 weeks View
LS-TCL-2606 1.396x, WD 119 mm $2,259.00 Ships in 2-3 weeks View
LS-TCL-2611 0.92x, WD 187 mm $2,299.00 Ships in 2-3 weeks View
LS-TCL-2612 0.916x, WD 159 mm $2,309.00 Ships in 2-3 weeks View
LS-TCL-2613 0.817x, WD 178 mm $2,489.00 Ships in 2-3 weeks View
LS-TCL-2614 0.735x, WD 229 mm $2,689.00 Ships in 2-3 weeks View
LS-TCL-2615 0.735x, WD 230 mm, M72-mount $2,689.00 Ships in 2-3 weeks View
LS-TCL-2616 0.654x, WD 208 mm, M72-mount $2,919.00 Ships in 2-3 weeks View
LS-TCL-2617 0.63x, WD 254 mm $3,019.00 Ships in 2-3 weeks View
LS-TCL-2618 0.528x, WD 251 mm $3,449.00 Ships in 2-3 weeks View
LS-TCL-2620 0.392x, WD 301 mm $4,389.00 Ships in 2-3 weeks View
LS-TCL-2621 0.346x, WD 318 mm $4,859.00 Ships in 2-3 weeks View
LS-TCL-2622 0.311x, WD 330 mm, M72-mount $5,409.00 Ships in 2-3 weeks View
LS-TCL-2623 0.245x, WD 410 mm $6,689.00 Ships in 2-3 weeks View
LS-TCL-2624 0.197x, WD 465 mm, M72-mount $8,719.00 Quote Ships in 2-3 weeks View
