Telecentric lenses

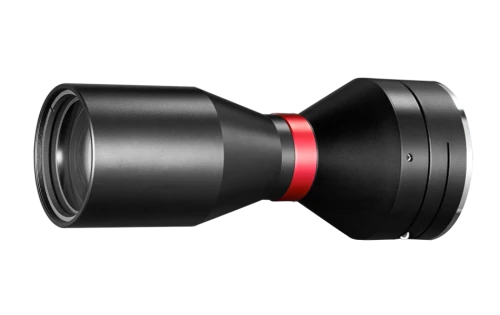

Bi-telecentric lens for 2" cameras (LS-TCL-S82)
- 23 models
- from $1,409.00
- Series LS-TCL-S82
The Bi-telecentric lens for 2" cameras (LS-TCL-S82) is a range of 23 telecentric lenses from LumaSpec Vision, from $1,409.00. It comes in 23 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.11x, WD 465 mm, 2", F or Other-mount, 0.137x, WD 410 mm, 2", 0.174x, WD 330 mm, 2", F or Other-mount, 0.194x, WD 318 mm, 2", 0.22x, WD 301 mm, 2", 0.242x, WD 288 mm, 2", 0.275x, WD 280 mm, 2", F or Other-mount, 0.296x, WD 251 mm, 2", 0.332x, WD 238 mm, 2", F-mount, 0.354x, WD 254 mm, 2", 0.367x, WD 208 mm, 2", F-mount, 0.412x, WD 229 mm, 2", 0.412x, WD 230 mm, 2", F/M58-mount, 0.458x, WD 178 mm, 2", 0.514x, WD 159 mm, 2", 0.518x, WD 187 mm, 2" and 7 more
- Mount
- F-mount
- Image circle
- 30-45 mm
- Type
- Bi-telecentric
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- APS-H / Full frame
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 23 models in the Bi-telecentric lens for 2" cameras (LS-TCL-S82)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2655 | 1.269x, WD 72 mm, 2" | 1.269 | 72±2 | from $1,409.00 | View | |
| LS-TCL-2658 | 0.786x, WD 118 mm, 2", F-mount | 0.786 | 118±2 | 12.9 | $1,599.00 | View |
| LS-TCL-2656 | 0.912x, WD 111 mm, 2" | 0.912 | 111±2 | from $1,639.00 | View | |
| LS-TCL-2657 | 0.781x, WD 119 mm, 2" | 0.781 | 119±2 | 12.9 | from $1,779.00 | View |
| LS-TCL-2660 | 0.688x, WD 138 mm, 2", F or Other-mount | 0.688 | 138±3 | 19.4 | $1,909.00 | View |
| LS-TCL-2659 | 0.687x, WD 128 mm, 2" | 0.687 | 128±2 | 12.9 | from $1,919.00 | View |
| LS-TCL-2661 | 0.589x, WD 138 mm, 2" | 0.589 | 138±2 | 11.1 | from $2,109.00 | View |
| LS-TCL-2662 | 0.518x, WD 187 mm, 2" | 0.518 | 187±2 | 19.4 | from $2,259.00 | View |
| LS-TCL-2663 | 0.514x, WD 159 mm, 2" | 0.514 | 159±2 | from $2,269.00 | View | |
| LS-TCL-2666 | 0.412x, WD 230 mm, 2", F/M58-mount | 0.412 | 230±2 | 9.7 | $2,299.00 | View |
| LS-TCL-2664 | 0.458x, WD 178 mm, 2" | 0.458 | 178±2 | 9.7 | from $2,469.00 | View |
| LS-TCL-2667 | 0.367x, WD 208 mm, 2", F-mount | 0.367 | 208±2 | 8.6 | $2,519.00 | View |
| LS-TCL-2665 | 0.412x, WD 229 mm, 2" | 0.412 | 229±2 | 19.4 | from $2,669.00 | View |
| LS-TCL-2669 | 0.332x, WD 238 mm, 2", F-mount | 0.332 | 238±3 | 7.7 | $2,719.00 | View |
| LS-TCL-2668 | 0.354x, WD 254 mm, 2" | 0.354 | 254±3 | from $2,959.00 | View | |
| LS-TCL-2670 | 0.296x, WD 251 mm, 2" | 0.296 | 251±3 | from $3,429.00 | View | |
| LS-TCL-2671 | 0.275x, WD 280 mm, 2", F or Other-mount | 0.275 | 280±5 | 11.1 | $3,639.00 | View |
| LS-TCL-2672 | 0.242x, WD 288 mm, 2" | 0.242 | 288±4 | from $4,069.00 | View | |
| LS-TCL-2673 | 0.22x, WD 301 mm, 2" | 0.220 | 301±4 | 11.1 | from $4,369.00 | View |
| LS-TCL-2674 | 0.194x, WD 318 mm, 2" | 0.194 | 318±4 | from $4,789.00 | View | |
| LS-TCL-2675 | 0.174x, WD 330 mm, 2", F or Other-mount | 0.174 | 330±5 | 7.8 | $5,379.00 | View |
| LS-TCL-2676 | 0.137x, WD 410 mm, 2" | 0.137 | 410±5 | from $6,669.00 | View | |
| LS-TCL-2677 | 0.11x, WD 465 mm, 2", F or Other-mount | 0.110 | 465±6 | 7.8 | $8,699.00quote | View |
