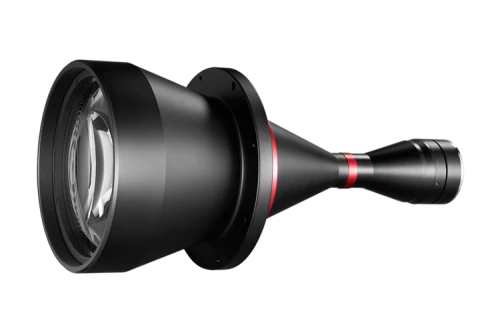

Bi-telecentric lens for 2" cameras, 0.354x, WD 254 mm (LS-TCL-2668)
  • Bi-telecentric lens for 2" cameras, 0.354x, WD 254 mm (LS-TCL-2668)

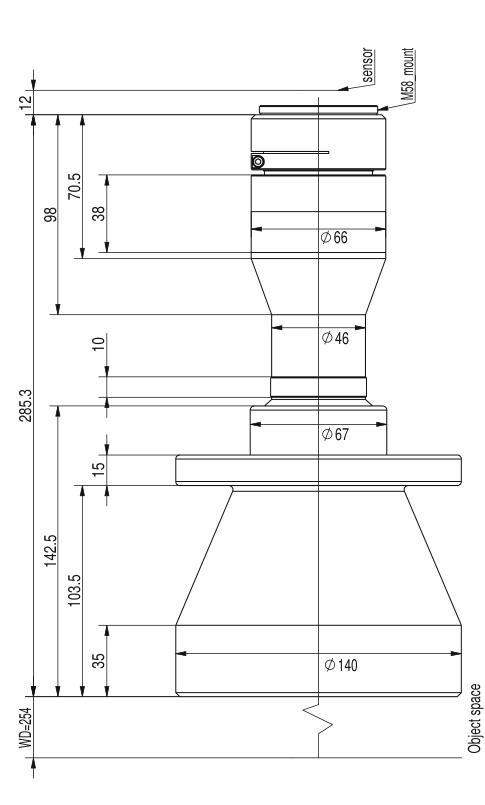

  • LS-TCL-2668 dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 2" cameras, 0.354x, WD 254 mm (LS-TCL-2668)

Model LS-TCL-2668

  • Magnification0.354x
  • MountF-mount
  • SensorAPS-H
  • Working distance254±3
  • Field of view76.0x50.7
$2,959.00

Ships in 2-3 weeks

1.63 kg shipping weight

Mount

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens for 2" cameras, 0.354x, WD 254 mm (LS-TCL-2668)LS-TCL-2668

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-telecentric lens series for sensors up to 2" (33 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2668

Optics

Distortion (% max)<0.1
Telecentricity (deg max)<0.1
F/#12.8
MTF30 (lp/mm)>50
Magnification (x)0.354
Working distance (mm)254±3
Depth of field (mm)±6
Field of view on 2"KAI-16050(26.93x17.95) (mm x mm)76.0x50.7
Field of view on 2"PYTHON 25K(23.04x23.04) (mm x mm)65.0x65.0
Field of view (dia. mm)94
Object-to-image distance I/O (mm)552

Sensor and imaging

Max sensor size (dia. mm)33(2")
Sensor format2"

Mechanical

MountF-Mount/Other
Length (mm)285.3
MountM58
Shipping weight1.63 kg

Other models in the Bi-telecentric lens for 2" cameras (LS-TCL-S82) series

See all 23 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2655 1.269x, WD 72 mm, 2" from $1,409.00 Ships in 2-3 weeks View
LS-TCL-2658 0.786x, WD 118 mm, 2", F-mount $1,599.00 Ships in 2-3 weeks View
LS-TCL-2656 0.912x, WD 111 mm, 2" from $1,639.00 Ships in 2-3 weeks View
LS-TCL-2657 0.781x, WD 119 mm, 2" from $1,779.00 Ships in 2-3 weeks View
LS-TCL-2660 0.688x, WD 138 mm, 2", F or Other-mount $1,909.00 Ships in 2-3 weeks View
LS-TCL-2659 0.687x, WD 128 mm, 2" from $1,919.00 Ships in 2-3 weeks View
LS-TCL-2661 0.589x, WD 138 mm, 2" from $2,109.00 Ships in 2-3 weeks View
LS-TCL-2662 0.518x, WD 187 mm, 2" from $2,259.00 Ships in 2-3 weeks View
LS-TCL-2663 0.514x, WD 159 mm, 2" from $2,269.00 Ships in 2-3 weeks View
LS-TCL-2666 0.412x, WD 230 mm, 2", F/M58-mount $2,299.00 Ships in 2-3 weeks View
LS-TCL-2664 0.458x, WD 178 mm, 2" from $2,469.00 Ships in 2-3 weeks View
LS-TCL-2667 0.367x, WD 208 mm, 2", F-mount $2,519.00 Ships in 2-3 weeks View
LS-TCL-2665 0.412x, WD 229 mm, 2" from $2,669.00 Ships in 2-3 weeks View
LS-TCL-2669 0.332x, WD 238 mm, 2", F-mount $2,719.00 Ships in 2-3 weeks View
LS-TCL-2670 0.296x, WD 251 mm, 2" from $3,429.00 Ships in 2-3 weeks View
LS-TCL-2671 0.275x, WD 280 mm, 2", F or Other-mount $3,639.00 Ships in 2-3 weeks View
LS-TCL-2672 0.242x, WD 288 mm, 2" from $4,069.00 Ships in 2-3 weeks View
LS-TCL-2673 0.22x, WD 301 mm, 2" from $4,369.00 Ships in 2-3 weeks View
LS-TCL-2674 0.194x, WD 318 mm, 2" from $4,789.00 Ships in 2-3 weeks View
LS-TCL-2675 0.174x, WD 330 mm, 2", F or Other-mount $5,379.00 Ships in 2-3 weeks View
LS-TCL-2676 0.137x, WD 410 mm, 2" from $6,669.00 Ships in 2-3 weeks View
LS-TCL-2677 0.11x, WD 465 mm, 2", F or Other-mount $8,699.00 Quote Ships in 2-3 weeks View
