Telecentric lenses

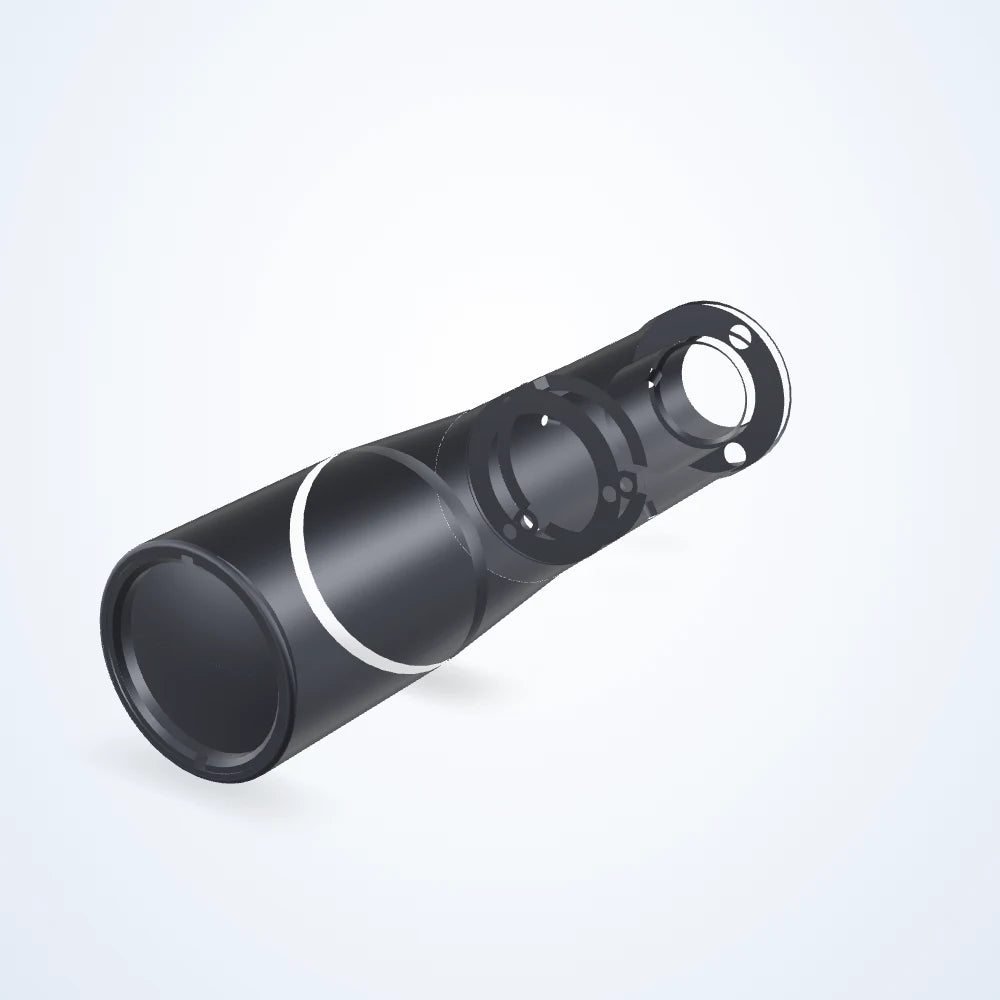

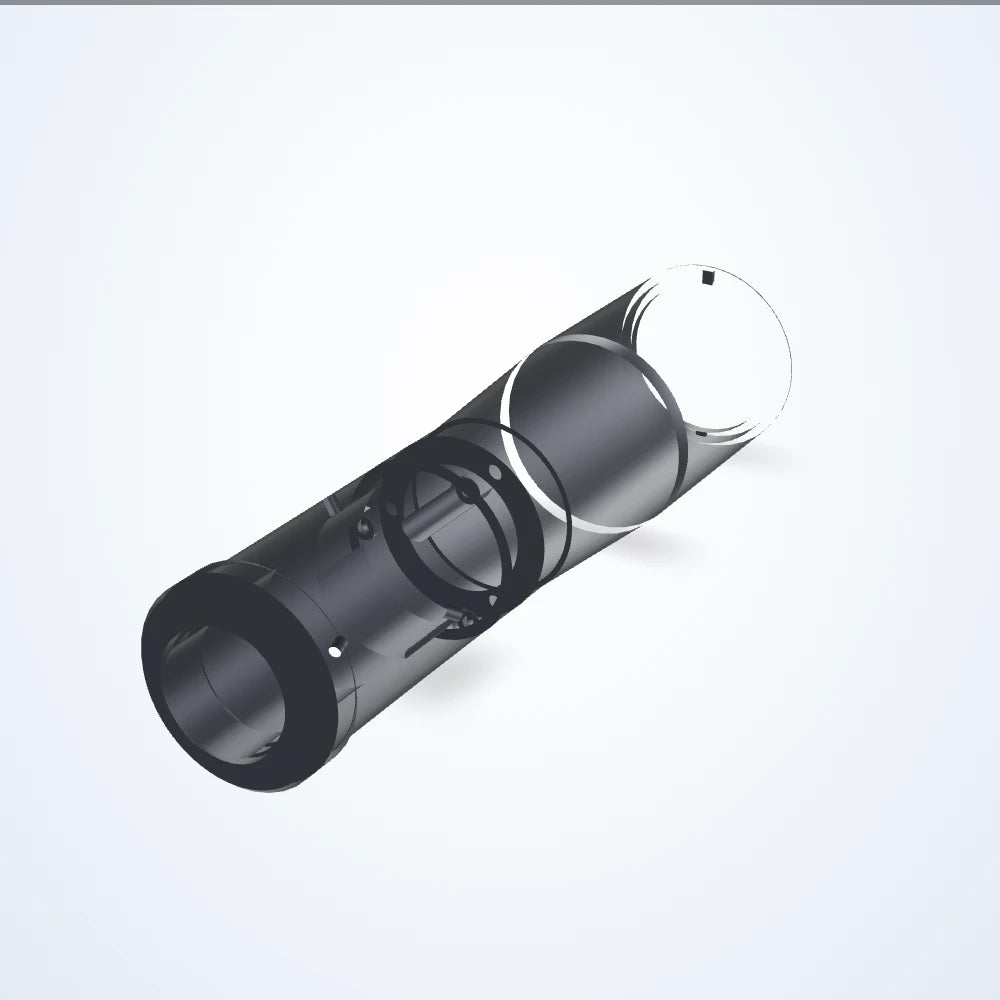

0.564× telecentric lens, 1.1", C-mount (LS-TCL-0270)
Model LS-TCL-0270
- Magnification0.564×
- MountC-mount
- Sensor1.1"
- Working distance67.2 mm
- Resolution12 μm
$2,489.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 67.2 mm; depth of field 1.8 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0270 |
|---|---|
| FOV @ 1.1″ | 25.11 x 18.39 mm |
| Fov @ 1.2″ | 20.12 x 12.64 mm |
| FOV @ 1″ | 25.16 x 13.32 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/11 |
Optics
| Magnification | 0.564× |
|---|---|
| Working distance | 67.2 mm |
| Depth of field | 1.8 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 17.6 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution (pixel size) | 12 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | C-mount |
|---|---|

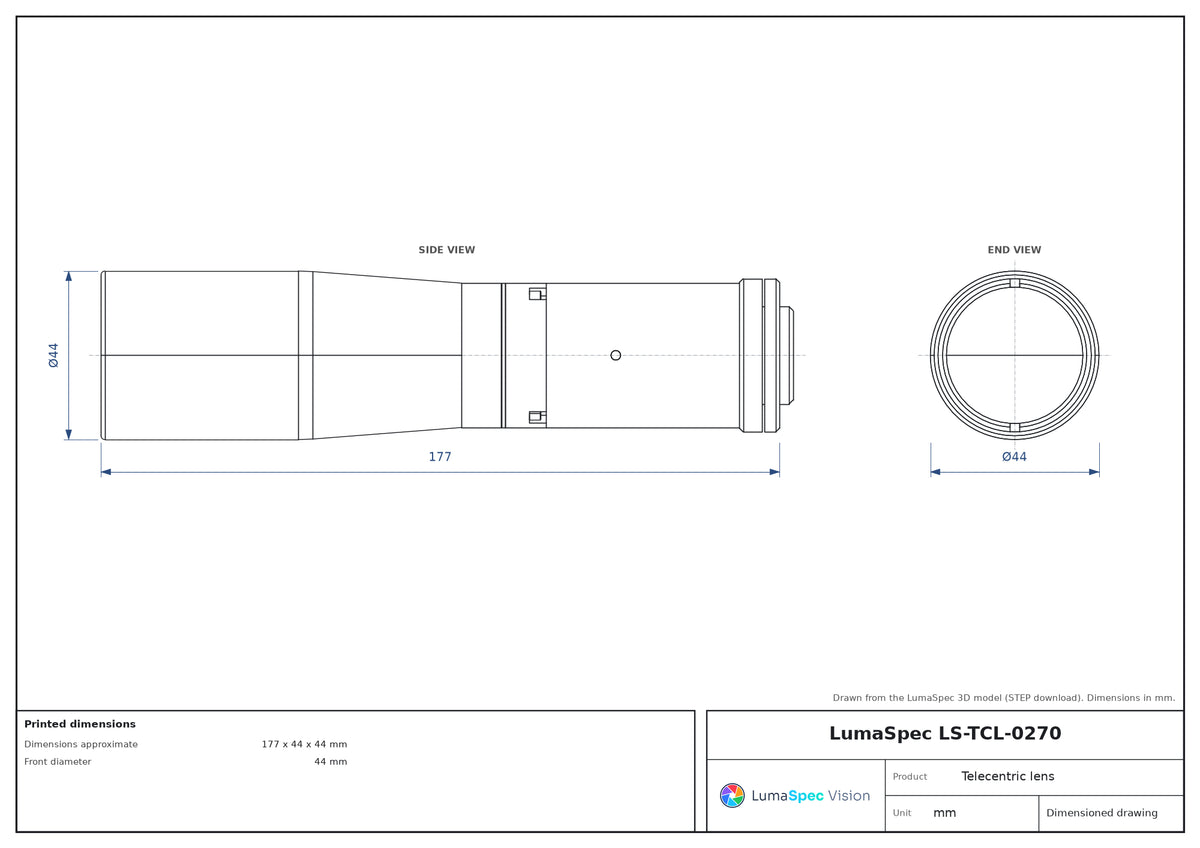

| Dimensions approximate | 177 x 44 x 44 mm |
| Front diameter | 44 mm |
| Weight | 430 Grams |
Other models in the Telecentric lens series, 1.1", C-mount (S16) series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0269 | 0.85× | $2,349.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0271 | 0.392× | $2,749.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0272 | 0.303× | $2,879.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0273 | 0.259× | $3,139.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0274 | 0.227× | $3,399.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0275 | 0.182× | $3,919.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0276 | 0.153× | $4,739.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0277 | 0.118× | $5,909.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0278 | 0.1× | $7,229.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0279 | 0.075× | $11,619.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0280 | 0.059× | $15,619.00 Quote | Lead time confirmed with your quote | View |
