Telecentric lenses

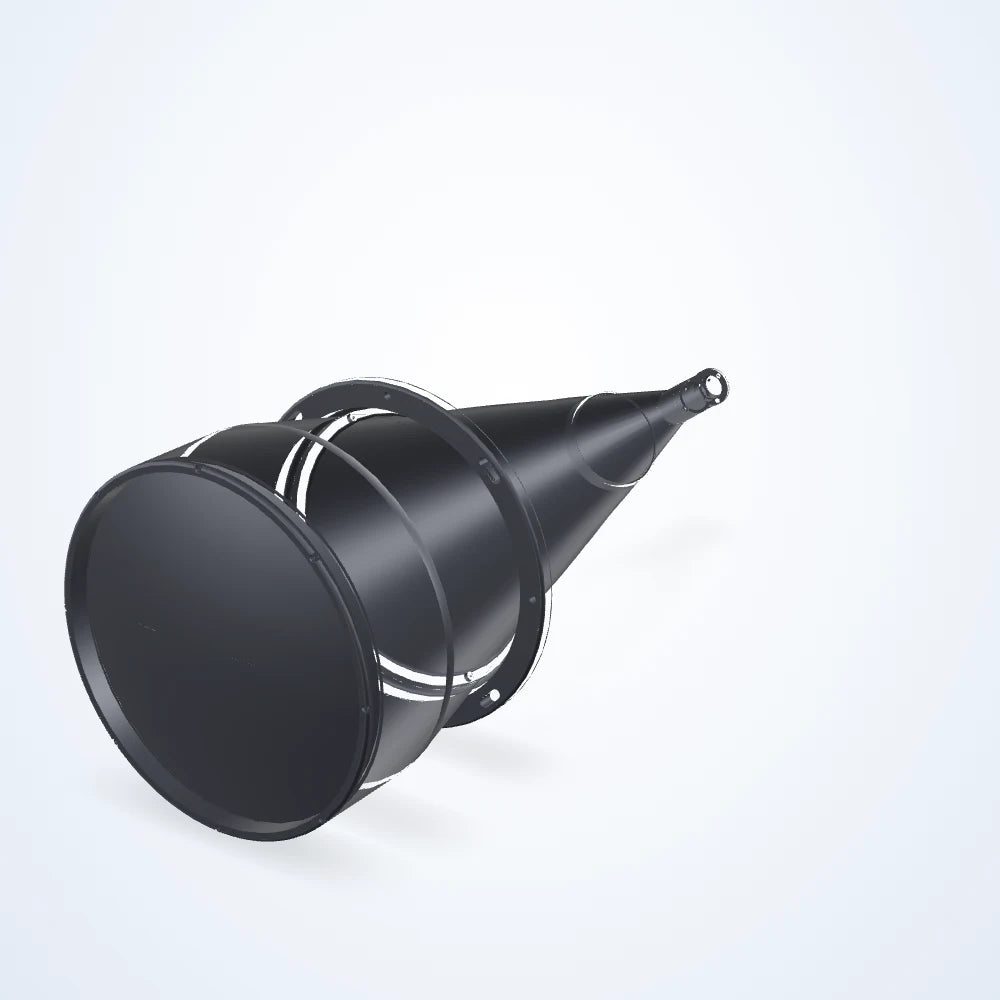

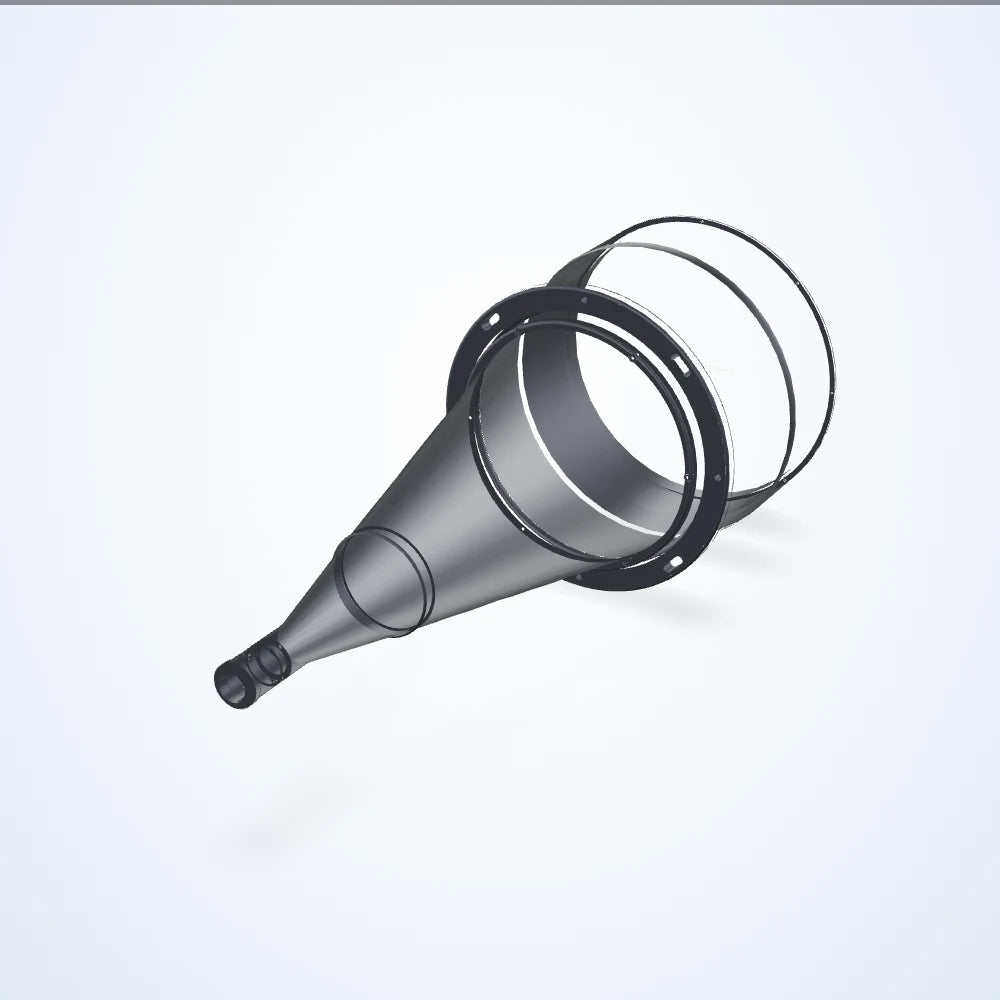

0.059× telecentric lens, 1.1", C-mount (LS-TCL-0280)
Model LS-TCL-0280
- Magnification0.059×
- MountC-mount
- Sensor1.1"
- Working distance492.9 mm
- Resolution86 μm
$15,619.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 492.9 mm; depth of field 118.9 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0280 |
|---|---|
| FOV @ 1.1″ | 240 x 175.76 mm |
| Fov @ 1.2″ | 192.37 x 120.85 mm |
| FOV @ 1″ | 240.51 x 127.29 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.059× |
|---|---|
| Working distance | 492.9 mm |
| Depth of field | 118.9 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 17.6 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution (pixel size) | 86 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |

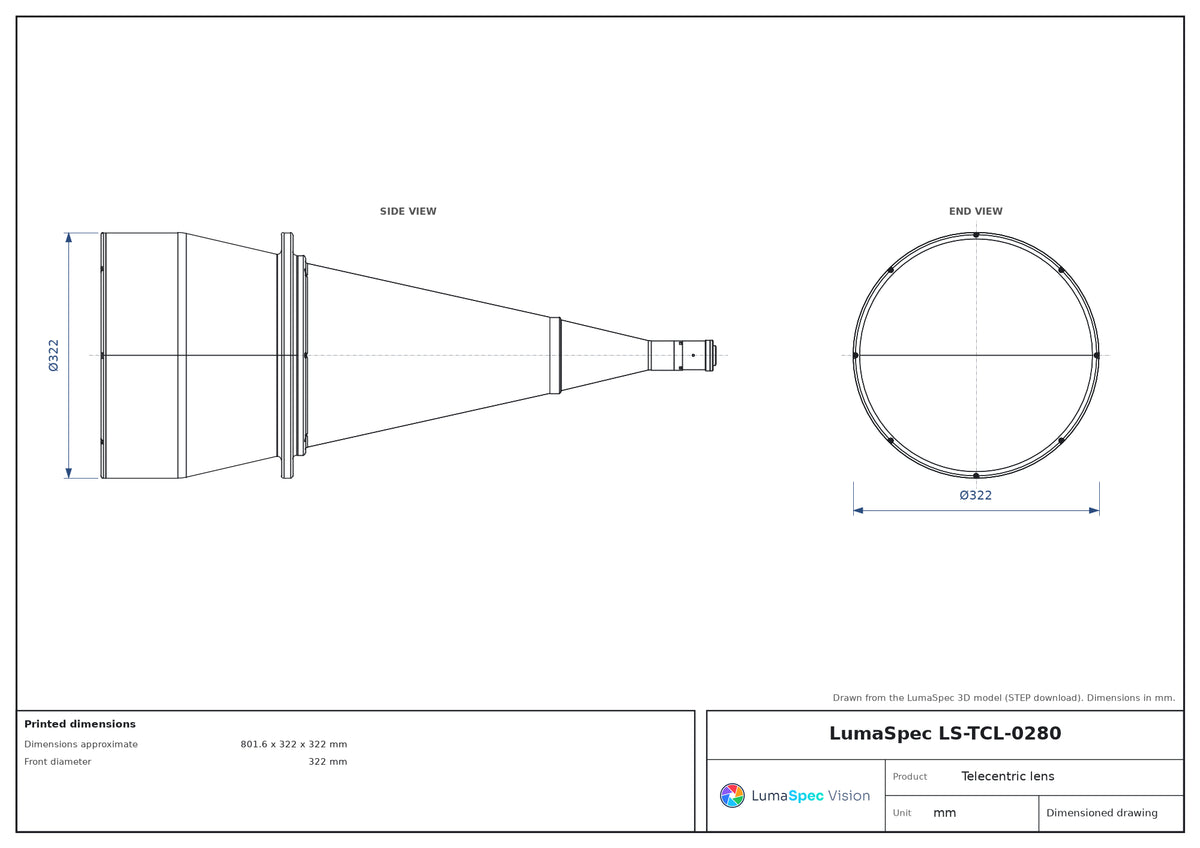

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions approximate | 801.6 x 322 x 322 mm |
| Front diameter | 322 mm |
| Weight | 18266 Grams |
