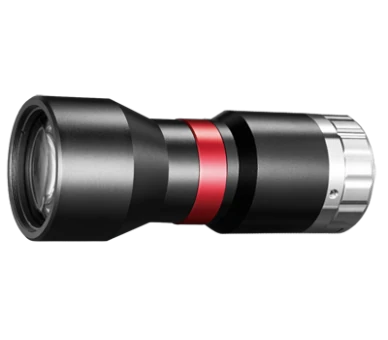

Bi-telecentric lens, 0.382x, WD 128 mm, 1.1", C-mount (LS-TCL-2485)
  • Bi-telecentric lens, 0.382x, WD 128 mm, 1.1", C-mount (LS-TCL-2485)

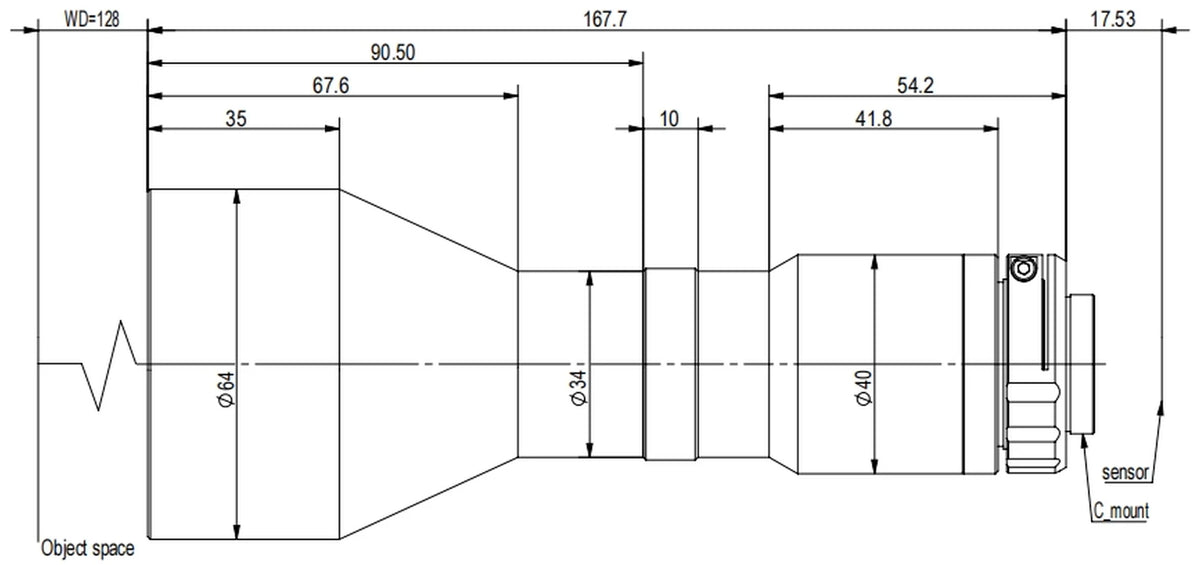

  • LS-TCL-2485 dimensions (mm)

Telecentric lenses

Bi-telecentric lens, 0.382x, WD 128 mm, 1.1", C-mount (LS-TCL-2485)

Model LS-TCL-2485

  • Magnification0.382x
  • MountC-mount
  • Sensor1.1"
  • Working distance128±2
  • Field of view36.9x27.0
$1,909.00

Ships in 2-3 weeks

0.98 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens, 0.382x, WD 128 mm, 1.1", C-mount (LS-TCL-2485)LS-TCL-2485

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Superior bi-telecentric design, distinguished imaging quality

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2485
FOV48mm

Optics

Magnification (x)0.382
Working distance (mm)128±2
Best Aperture (F/#)7.9
MTF30 (lp/mm)>127
Depth of field (mm)±2
Field of view with IMX304 (14.13x10.35 sensor) (mm x mm)36.9x27.0

Sensor and imaging

Max sensor size (dia. mm)18.4(1.1")

Interfaces and I/O

Length of I/O (mm)313.2

Mechanical

MountC
Length (mm)167.7
Weight (kg)0.63

Other models in the Bi-telecentric lens (LS-TCL-S72) series

See all 15 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2482 0.707x, WD 72 mm, 1.1", C-mount $1,399.00 Ships in 2-3 weeks View
LS-TCL-2483 0.509x, WD 111 mm, 1.1", C-mount $1,629.00 Ships in 2-3 weeks View
LS-TCL-2484 0.437x, WD 118 mm, 1.1", C-mount $1,769.00 Ships in 2-3 weeks View
LS-TCL-2487 0.286x, WD 159 mm, 1.1", C-Mount $1,949.00 Ships in 2-3 weeks View
LS-TCL-2486 0.328x, WD 138 mm, 1.1", C-mount $2,099.00 Ships in 2-3 weeks View
LS-TCL-2489 0.229x, WD 230 mm, 1.1", C-Mount $2,249.00 Ships in 2-3 weeks View
LS-TCL-2488 0.255x, WD 178 mm, 1.1", C-mount $2,469.00 Ships in 2-3 weeks View
LS-TCL-2492 0.165x, WD 251 mm, 1.1", C-Mount $2,849.00 Ships in 2-3 weeks View
LS-TCL-2490 0.204x, WD 208 mm, 1.1", C-mount $2,889.00 Ships in 2-3 weeks View
LS-TCL-2491 0.185x, WD 238 mm, 1.1", C-mount $3,139.00 Ships in 2-3 weeks View
LS-TCL-2494 0.123x, WD 301 mm, 1.1", C-Mount $3,559.00 Ships in 2-3 weeks View
LS-TCL-2493 0.134x, WD 288 mm, 1.1", C-mount $4,059.00 Ships in 2-3 weeks View
LS-TCL-2495 0.108x, WD 318 mm, 1.1", C-mount $4,829.00 Ships in 2-3 weeks View
LS-TCL-2496 0.076x, WD 410 mm, 1.1", C-mount $6,669.00 Ships in 2-3 weeks View
