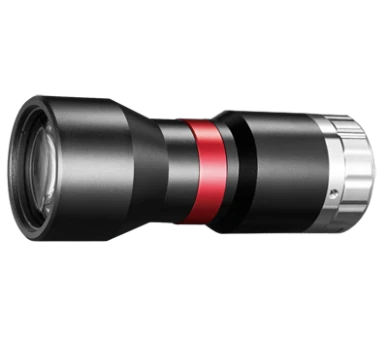

Bi-telecentric lens, 0.185x, WD 238 mm, 1.1", C-mount (LS-TCL-2491)
  • Bi-telecentric lens, 0.185x, WD 238 mm, 1.1", C-mount (LS-TCL-2491)

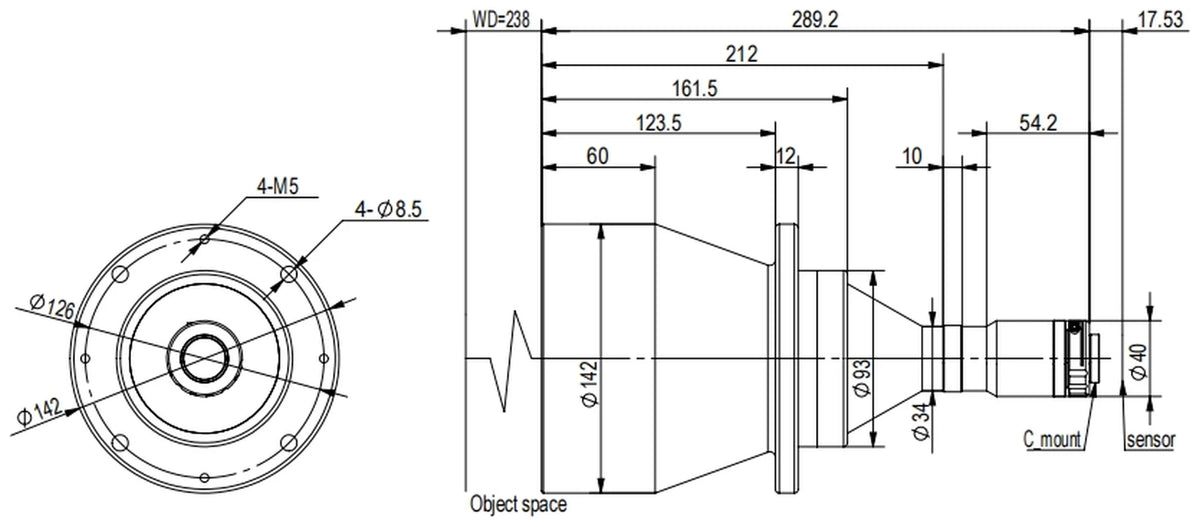

  • LS-TCL-2491 dimensions (mm)

Telecentric lenses

Bi-telecentric lens, 0.185x, WD 238 mm, 1.1", C-mount (LS-TCL-2491)

Model LS-TCL-2491

  • MountC-mount
  • Sensor1.1"
  • Working distance238±3
  • Field of view76.3x55.9
$3,139.00

Ships in 2-3 weeks

4.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens, 0.185x, WD 238 mm, 1.1", C-mount (LS-TCL-2491)LS-TCL-2491

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Superior bi-telecentric design, distinguished imaging quality

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2491
Mag.0.185x
FOV100mm

Optics

Working distance (mm)238±3
Best Aperture (F/#)7.2
MTF30 (lp/mm)>132
Depth of field (mm)±6.5
Field of view with IMX304 (14.13x10.35 sensor) (mm x mm)76.3x55.9

Sensor and imaging

Max sensor size (dia. mm)18.4 ( 1.1" )

Interfaces and I/O

Length of I/O (mm)544.7

Mechanical

MountC
Length (mm)289.2
Weight (kg)2.87
