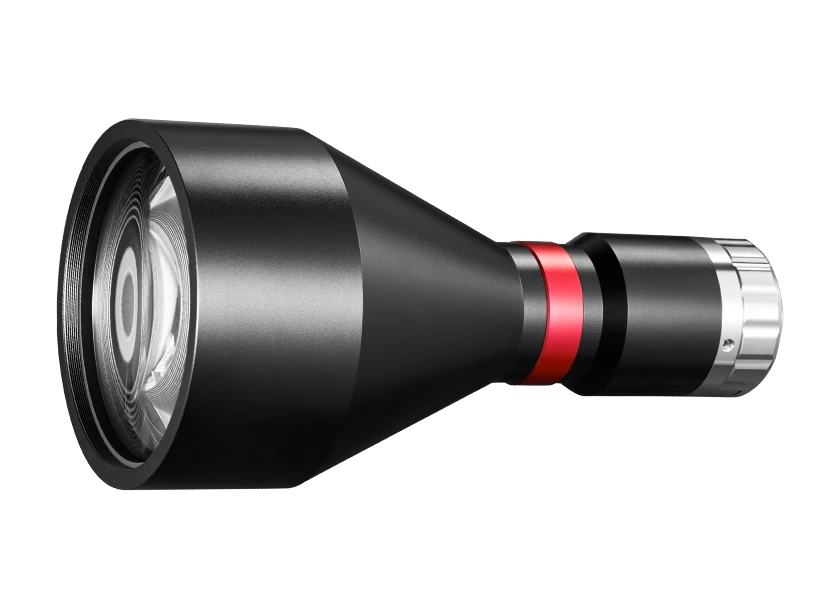

Bi-telecentric lens, 0.204x, WD 208 mm, 1.1", C-mount (LS-TCL-2490)
  • Bi-telecentric lens, 0.204x, WD 208 mm, 1.1", C-mount (LS-TCL-2490)

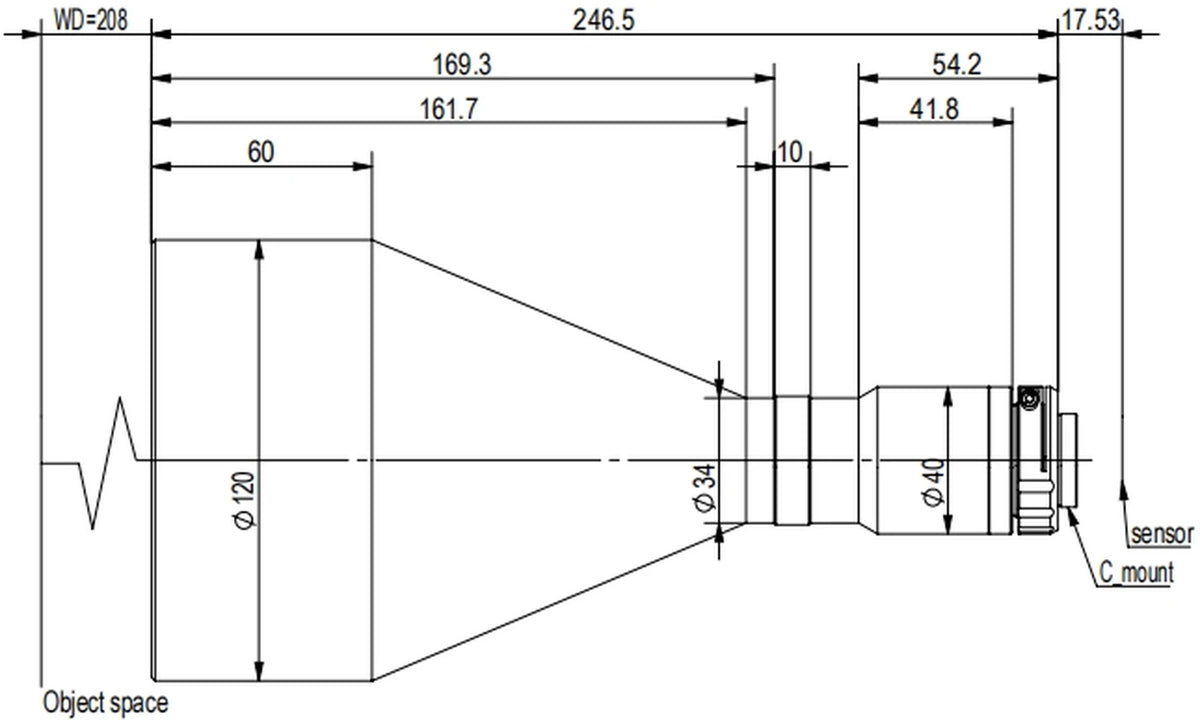

  • LS-TCL-2490 dimensions (mm)

Telecentric lenses

Bi-telecentric lens, 0.204x, WD 208 mm, 1.1", C-mount (LS-TCL-2490)

Model LS-TCL-2490

  • Magnification0.204x
  • MountC-mount
  • Sensor1.1"
  • Working distance208±2
  • Field of view69.2x50.7
$2,889.00

Ships in 2-3 weeks

2.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens, 0.204x, WD 208 mm, 1.1", C-mount (LS-TCL-2490)LS-TCL-2490

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Superior bi-telecentric design, distinguished imaging quality

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2490
FOV90mm

Optics

Magnification (x)0.204
Working distance (mm)208±2
Best Aperture (F/#)6.2
MTF30 (lp/mm)>132
Depth of field (mm)±4
Field of view with IMX304 (14.13x10.35 sensor) (mm x mm)69.2x50.7

Sensor and imaging

Max sensor size (dia. mm)18.4(1.1")

Interfaces and I/O

Length of I/O (mm)472

Mechanical

MountC
Length (mm)246.5
Weight (kg)1.83

Other models in the Bi-telecentric lens (LS-TCL-S72) series

See all 15 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2482 0.707x, WD 72 mm, 1.1", C-mount $1,399.00 Ships in 2-3 weeks View
LS-TCL-2483 0.509x, WD 111 mm, 1.1", C-mount $1,629.00 Ships in 2-3 weeks View
LS-TCL-2484 0.437x, WD 118 mm, 1.1", C-mount $1,769.00 Ships in 2-3 weeks View
LS-TCL-2485 0.382x, WD 128 mm, 1.1", C-mount $1,909.00 Ships in 2-3 weeks View
LS-TCL-2487 0.286x, WD 159 mm, 1.1", C-Mount $1,949.00 Ships in 2-3 weeks View
LS-TCL-2486 0.328x, WD 138 mm, 1.1", C-mount $2,099.00 Ships in 2-3 weeks View
LS-TCL-2489 0.229x, WD 230 mm, 1.1", C-Mount $2,249.00 Ships in 2-3 weeks View
LS-TCL-2488 0.255x, WD 178 mm, 1.1", C-mount $2,469.00 Ships in 2-3 weeks View
LS-TCL-2492 0.165x, WD 251 mm, 1.1", C-Mount $2,849.00 Ships in 2-3 weeks View
LS-TCL-2491 0.185x, WD 238 mm, 1.1", C-mount $3,139.00 Ships in 2-3 weeks View
LS-TCL-2494 0.123x, WD 301 mm, 1.1", C-Mount $3,559.00 Ships in 2-3 weeks View
LS-TCL-2493 0.134x, WD 288 mm, 1.1", C-mount $4,059.00 Ships in 2-3 weeks View
LS-TCL-2495 0.108x, WD 318 mm, 1.1", C-mount $4,829.00 Ships in 2-3 weeks View
LS-TCL-2496 0.076x, WD 410 mm, 1.1", C-mount $6,669.00 Ships in 2-3 weeks View
